954v3 Ionising Gun

Product Code: 954v3

The Meech Model 954v3 is the latest evolution of handheld air assisted ionising guns from Meech, for neutralising static charges and removing dust contamination on a wide range of industrial processes.

The titanium emitter of the ionising air gun offers fast ionisation with an impressive decay speed in order to break the surface boundary layer, release and blow-away contamination. The trigger of the 954v3 also enables economical use of compressed air, leading to operational savings.

The 954v3 has been designed with the operator in mind; ergonomically designed with a lightweight frame, suitable for prolonged use.

Download
Features & Benefits
Resistively coupled

Shockless – Enhances operator safety

Titanium emitter

Delivers maximum ionisation performance over long service life

Nozzle design

More effective ionisation performance and reduced noise levels

Integral bypass holes

Meets dead-end pressure safety guidelines

Ergonomic, lightweight design

Comfortable for prolonged use

Technical Characteristics
Weight

Gun only 100g (490g with 3 metres of cable)

Operating voltage

7kV from 904 power unit

Cable

3 metres of H.T. cable in flexible conduit (longer lengths can be specified when ordering)

Nozzle diameter

30mm

Construction

Plastic housing with metal piston grip

Max Temperature

85°C

Max Pressure

6.8 Bar /100 PSI (Recommended usage 3.4 Bar / 50 PSI)

Noise level (at 1000mm)

<80 dBA at 50psi

Air Consumption

13cfm @ 50psi (370 litres/min @ 3.5 bar)

Images
Related Products
Documentation

Meech Hyperion Range Brochure

Download

959IPS Operating Manual

Download

Meech Static Control Brochure - English

Download

959IPS Technical Drawing

Download
Must Haves
904 Power Supply

Product Code: 904

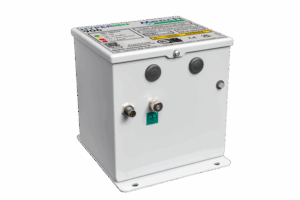

The Meech Model 904 is a constant voltage AC power supply, designed to provide a 7kV source for Meech AC ionising equipment.
