BarMaster Programmer

Product Code: A900-BARMASTER-F

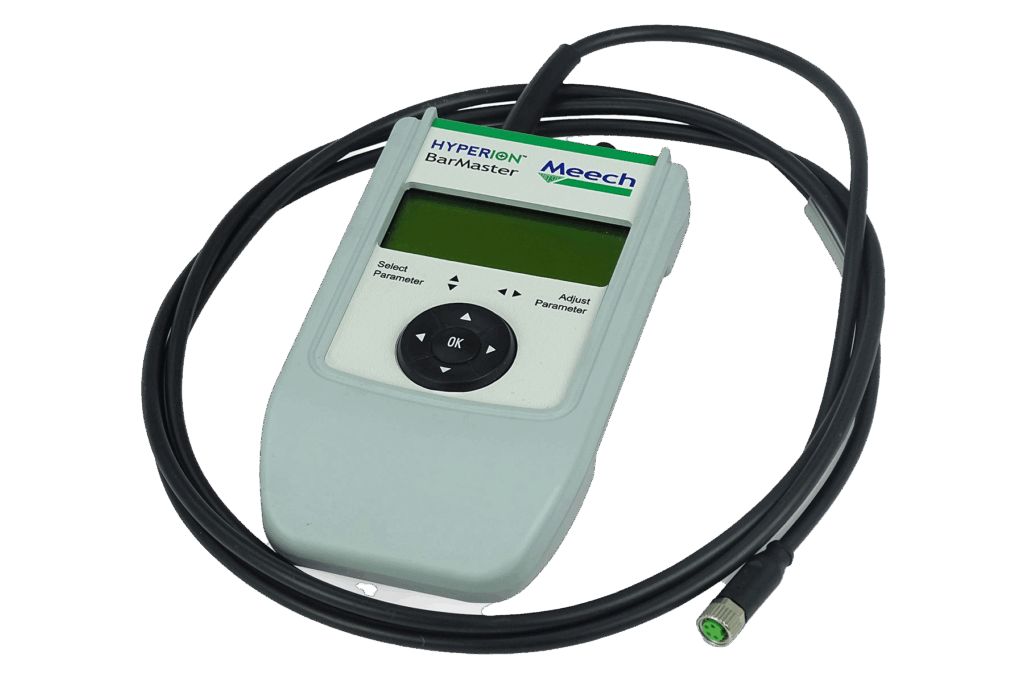

The BarMaster Programmer, part of our latest, revolutionary Hyperion™ range, brings another level of static control. It features a control unit with an LCD screen that provides information from a connected Hyperion™ product so operators can easily change and monitor status and parameters. The hand-held programmer is portable and temporarily connects inline with the 24V power supply directly to a Hyperion™ device, removing the need for extra cables. This allows operators to move easily between devices and simplifies the connection. Once programming is complete, operators disconnect the BarMaster Programmer. When they re-power the Hyperion™ device, it operates with the new programmed settings.

The port on the Programmer supports the connection of any current or future Hyperion™ product, ensuring a future-proof solution for your static control setup.

  Download
Features & Benefits
Universal

Connection and adjustment of any Hyperion™ product.
Balance Adjustment

A balanced output can be adjusted for the most rapid static control in demanding applications or for the best balance on sensitive applications.
Hand-Held

Portable and easy to carry around.
Clean Pin Alert

Indicates operational status, can be changed to suit the demands of the application.
Output Frequency Adjustment

Adjustable for different operating distances and better performance.
Future Proof

The BarMaster has been designed to be compatible with current and future Hyperion™ products.
Technical Characteristics
Construction

ABS housing.
Input Connection

4-pin M8 connector.
Dimensions

81mm x 143mm x 25mm (W x H x D)
Cable

2m.
Input Voltage

24V DC.
Documentation

Hyperion™ Static Control Range Brochure

Download

BarMaster Programmer Operating Manual

Download
