Small Vortex Tube
Product Code: A21000
Like the medium version, the Meech Small Vortex Tube converts compressed air into two air flows, one very cold the other very hot. Temperature drops can be up to 50°C below the inlet compressed air temperature, whilst the hot air can be up to 50°C above the inlet air temperature.
Small Vortex Tubes are specially designed for smaller, more delicate applications that require less air flow. The Small Vortex Tube is supplied with either a yellow 8cfm high fraction generator, or a green 8cfm low fraction generator.
DownloadFeatures & Benefits
Provides both hot and cold air, which can be as much as 50°C above or below the air temperature
No maintenance
Standard 1/8” BSP fitting will connect to most existing air supplies. Small Vortex Tubes are also supplied with a standard 1/8” BSP to 6mm push fit adapter
Control valve allows temperature adjustment
Hard wearing and suitable for many different environments
Specifically designed for smaller applications that require less air flow. Small Vortex Tubes will also have lower air consumption.
Technical Characteristics

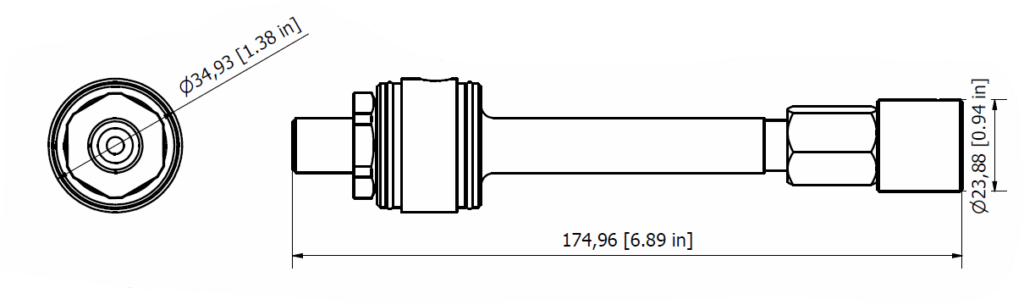

(L) 174.9mm x (H) 34.9mm
