TakClean™ Contact Web Cleaning System

Product Code: TakClean™

The Meech TakClean contact web cleaning system is designed primarily for use in the label and narrow web markets to remove dry, unbonded contamination from a moving web efficiently.

TakClean incorporates the specially formulated TransTak elastomer contact cleaning rollers and perforated adhesive rolls which, combined, make TakClean the ultimate elastomer based web cleaning machine.

For more information or for sales enquiries please contact us.

  Download
Features & Benefits
Clam shell opening (top half)

Provides the operator with access to clean the TransTak elastomer rollers and makes webbing-up very easy.

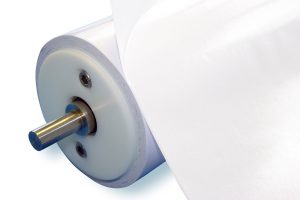

Side pull out adhesive rolls

Minimises the size of the machine and provides the operator with easy access to remove a section of the perforated adhesive roll.

Cantilever or base plate mounting

Flexibility of the installation position. TakClean can be installed to suit all web orientations.

Integrated static control

Meech active static control equipment neutralises the web on exit of the TakClean to prevent statically attracted recontamination.

Fast change adhesive rolls

Reduces maintenance time required.

Technical Characteristics
Web speed (web driven)

250mtrs/min820ft/min

N.B. Contact Meech for web speeds over 250mtrs/min / 820ft/min

7-off standard effective widths

300 – 600mm in 50mm increments11.81 – 31.50” in 1.97” increments

Electrical requirement

24V DC (line running signal)

Static control (active)

2 x 914 AC Ionisers

Pneumatic requirement

5bar (72psi)

N.B. compressed air supply should be oil and moisture free

Images
Videos
Documentation

Web Cleaning Overview Brochure

Download

TakClean_Operating_Manual

Download
