914 Static Eliminator
Product Code: A914-XXXX
The powerful 914 Static Eliminator is a highly effective static elimination solution, used across a wide range of industrial processes and industries worldwide. Specifically designed for neutralising static electricity where unwanted static charges can disrupt production, damage materials, or pose safety risks.
Featuring sharp titanium emitter pins, the 914 provides long-term performance. These pins are resistively coupled for shockless operation, making the device safe and therefore enhancing operator safety. Additionally, the 914 delivers effective ionisation up to distances of 100mm. It’s design allows it to meet even the most demanding static control problems, including those encountered in high-speed applications. Furthermore, the 914 Static Eliminator holds CE and UL certifications. The model 914 operates with Meech’s 5kV 904-905-50 or 904-905-60 Power Unit.
This market-leading static eliminator is suitable for most industrial processes. For solutions in hazardous zones, click here.
DownloadFeatures & Benefits
Sharp Titanium emitters for long-term performance and reduced pin contamination.
Up to 100m from material, overall length is 40mm greater than effective length.
Resistively coupled for shockless operation.
CE & UL certified.
Suitable for installations where space is limited.
Very fast decay times and effective at faster web speeds.
Technical Characteristics
Anodised aluminium outer, pvc extruded liner, resin potted components and Titanium emitters.
CE, UL.
15mm x 18mm (W x H). Available lengths: from 80 to 4000mm. Active ionisation length: overall bar length – 40mm.
Includes fixing kit with M4 x 20mm studs.
Approximately 400 grams per metre.
5.0kV AC.
HT cable in shielded flexible conduit. Standard length is 2m – longer lengths can be specified at time of order.
Right angle cable entry via elbow option.
Use with Meech 5V Power Units.
EX-ATEX version – see A914EX.
Images
Related Products

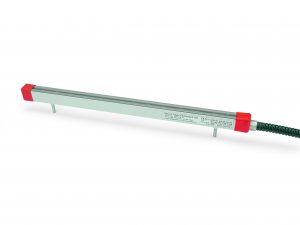

914EX Hazardous Area Anti-Static Bar
