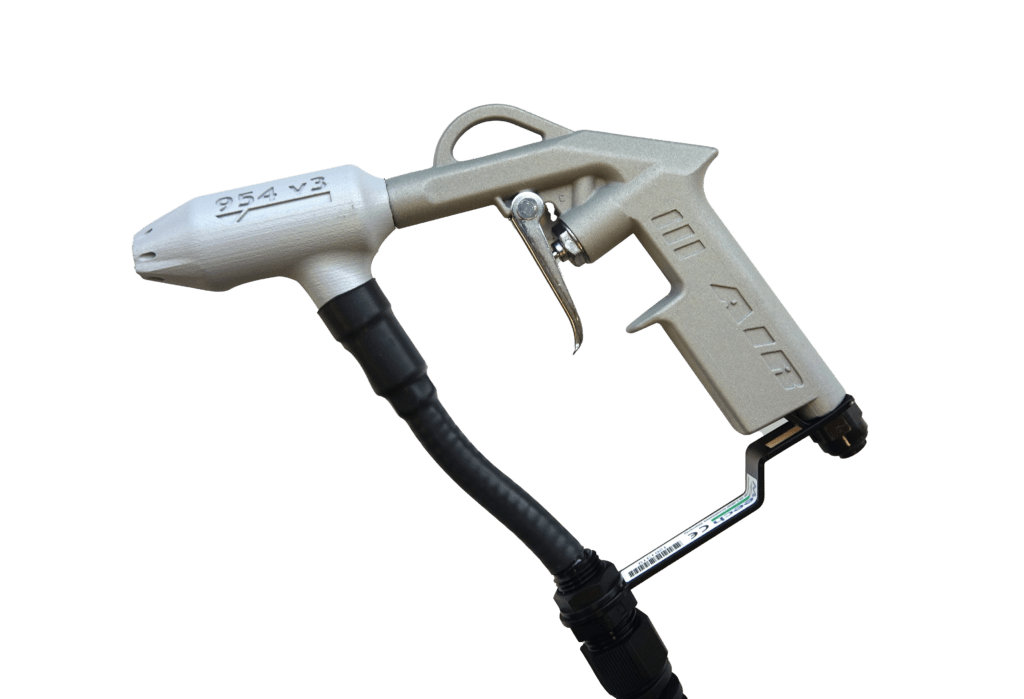

954v3 Ionising Air Gun
Product Code: 954v3
The 954v3 Ionising Air Gun is our effective handheld air-assist gun, specifically for dust removal and neutralisation of static electricity across a wide range of industrial processes.
The 954v3 optimises an air nozzle design that offers quiet, effective static ionisation. Additionally, the resistively coupled Titanium emitters ensure shockless operation for operator safety while delivering fast ionisation with impressive decay speeds to break the surface boundary layer, release and blow-away contamination. Furthermore, the air nozzle’s trigger allows for economical use of compressed air, helping reduce operating costs. This ergonomic trigger has a light-weight frame to ensure comfortable operator control without fatigue, prolonging use.
Also featuring integral bypass holes, the 954v3 cannot be dead-ended, meeting pressure safety standards.
Finally, the Meech 5kV Power Unit powers the 954v3 Ionising Air Gun and supports between one and four guns.
DownloadFeatures & Benefits
Effective static ionisation power and reduced noise levels.
Delivers maximum ionisation performance over long service life.
For operational savings.
Meets dead-end pressure safety guidelines.
For operator control without fatigue, prolonging use.
Technical Characteristics
Plastic housing and metal piston grip.
Use with Meech 5kV Power Unit.
Flexible HT cable. Standard length is 3m, longer lengths can be specified when ordering.
6.8 Bar /100 PSI. Typical recommended working pressure is 3.4 Bar/50 PSI. Air consumption at 3.5 Bar is 370 lit/min.
The emitters are resistively coupled for operator safety and features integral bypass so the 954v3 cannot be dead-ended, meeting pressure safety standards.
Noise level is <80 dBA at 50psi.
Images
Related Products

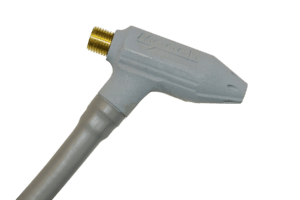

954v3-BE Ionising Nozzle
Product Code: 954v3-BE
The 954v3-BE Ionising Nozzle is part of Meech’s comprehensive range of AC ionising products which neutralises static electricity and removes dust across a wide range of industrial processes.
The 954v3-BE is an effective air nozzle we specifically build with a titanium emitter to deliver maximum performance over a long service life. With up to 7kV of ionising power provided by Meech 904-905-50 or 60 Power Units, the 954v3-BE neutralises static charges, allowing thorough dust removal and prevents recontamination.
The nozzle uses compressed air and shares similarities to our 954v3 Ionising Gun but comes without a handle. Instead, it features a 1/4” BSP threaded fitting, which allows easy connection to any air supply.
Additionally, this third-generation Ionizing Nozzle delivers a decay time that is 60% faster than our previous version.
This Ionizing Air Nozzle replaces our 940-BE and 952 models.
Must Haves
904-905-50 Power Supply
Product Code: 904-905-50
The 904-905 Power Supply is part of Meech’s range of power units which provide the voltage required to produce ionisation for our range of AC static eliminators.
Specifically, the 904-905 provides a 5kV source for up to four Meech static eliminators, making it suitable on a wide range of industrial processes and static eliminator applications. Additionally, it is adjustable to operate at 100-120V or 200-240 input voltages and is available in 50Hz to suit local conditions.
Furthermore, the 904-905 offers several key features detailed in the features section below. These include a unique design to allow automated manufacture for increased reliability and extended product life. To ensure a high level of operator safety, it also features a short circuit current of <5mA.
Finally, for fast and easy connectivity, the 904-905 Power Supply can connect to mains supply, significantly reducing installation time.
904-905-60 Power Supply
Product Code: A904-905-60
The 904-905-60 Power Supply is part of Meech’s range of power units which provide the voltage required to produce ionisation for our range of AC static eliminators.
Specifically, the 904-905-60 provides a 7kV source for up to four Meech static eliminators, making it suitable on a wide range of industrial processes and static eliminator applications. Additionally, it is adjustable to operate at 100-120V or 200-240 input voltages and is available in 60Hz to suit local conditions.
Furthermore, the 904-905-60 offers several key features detailed in the features section below. These include a unique design to allow automated manufacture for increased reliability and extended product life. To ensure a high level of operator safety, it also features a short circuit current of <5mA.
Finally, for fast and easy connectivity, the 904-905-60 Power Supply can connect to mains supply, significantly reducing installation time.
