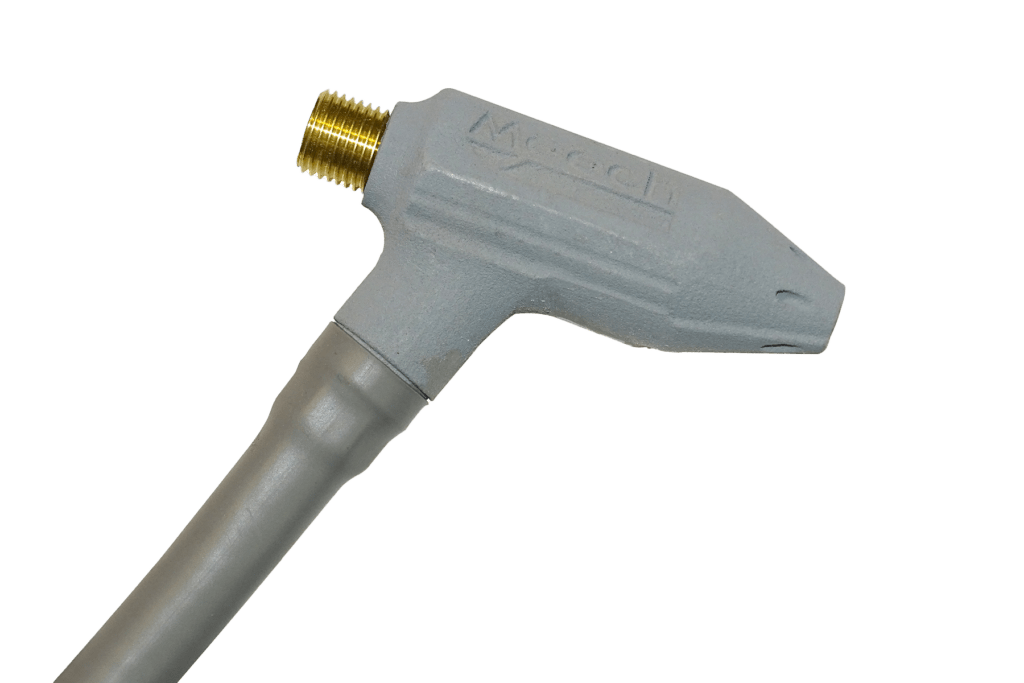

954v3-BE Ionising Nozzle

Product Code: 954v3-BE

The 954v3-BE Ionising Nozzle is part of Meech’s comprehensive range of AC ionising products which neutralise static electricity and remove dust across a wide range of industrial processes.

The 954v3-BE is an effective air nozzle we specifically build with a titanium emitter to deliver maximum performance over a long service life. With up to 5kV of ionising power provided by Meech Power Units, the 954v3-BE neutralise static charges, allowing thorough dust removal and preventing recontamination.

The nozzle uses compressed air and shares similarities to our 954v3 Ionising Gun but comes without a handle. Instead, it features a 1/4” BSP threaded fitting, which allows easy connection to any air supply.

Additionally, this third-generation Ionizing Nozzle delivers a decay time that is 60% faster than our previous version.

This Ionizing Air Nozzle replaces our 940-BE and 952 models.

  Download
Features & Benefits
Safety

Resistively coupled for shockless operation, enhancing operator safety.
Titanium Emitter

Delivers maximum ionisation performance over long service life.
Nozzle Design

More effective ionisation performance & reduced noise levels.
Integral Bypass Holes

Meets dead-end pressure safety and guidance.
Technical Characteristics
Dimensions

71mm x 26.5mm x 29mm.
Operating Voltage

5kV from 904-905 Power Units.
Cable

HT cable in flexible conduit. Standard length is 2m – longer lengths can be specified at time of order.
Max Temperature

85°C maximum temperature.
Noise Level

<80 dBA @ 50psi (at 1000mm).
Air Pressure

Maximum: 6.8 Bar /100 PSI (recommended usage 3.4 Bar/50 PSI).
Air Consumption

13cfm @ 50psi (370 litres/min @ 3.5 bar).
Air Supply

¼” BSP threaded fitting for easy connection to any air supply
Documentation

Meech Static Control Brochure

Download
Related Products

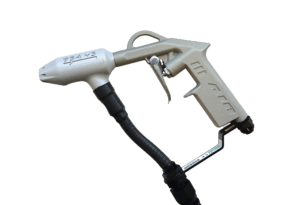

Ionising Air Gun 954v3 Ionising Air Gun
