AHUv3 Standard – 3 Pump or 6 Pump
Product Code: AHUv3
The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.
DownloadFeatures & Benefits
Clear visual representation of the system status: vacuum target pressures and vacuum and positive pressures
Digital adjustments of 0.1kPa increments, for fast and accurate setup
System will clean effectively for the full life of the filters
Option of manual input or interlocked system
Option to password protect touch screen to ensure settings
Technical Characteristics
3 Pump Unit: 3.3kW / 6 Pump Unit: 6.6kW
3 Pump Unit: 1100 m³/hr / 6 Pump Unit: 2200 m³/hr
3 Pump Unit: 95kg / 6 Pump Unit: 105kg
3 Pump Unit: 72dBa / 6 Pump Unit: 78dBa
200- 440V 3ph 50/60Hz
Height 925mm x Depth 750mm x Width 750mm
Turbine Fan
Grade 430
+5°C to +40°C
Max 80% RH up to 31°C To Max 50% RH at 40°C
Below 2000m
2
Bag – Efficiency F8 – 90-95% @ 0.4μ
HEPA – Efficiency H14 – 99.997% @ 0.3μ
Inline – Efficiency F8 – 90-95% @ 0.4μ
3 Pump Unit: Neutral = 11.5A, Line = 6.9A
6 Pump Unit: Neutral = 23A, Line = 13.8A
3 Pump Unit: Line = 12.5A
6 Pump Unit: Line = 25A
Applications
Images
Related Products
AHUv3 Compact – 2 Pump
Product Code: AHUv3 Compact
The AHUv3 Compact provides the positive pressure and vacuum pressure airflows and houses the system filters. The AHUv3 Compact is a 2 pump unit designed predominantly for narrow web applications of up to 600mm.
IonRinse™
Product Code: IonRinse™
The IonRinse system combines powerful AC ionisation, a custom designed airflow distributor and high quality inline filtration to provide the ultimate in ionised air rinsing.
Must Haves
CyClean™-R Mid Web Non-Contact Web Cleaning System
Product Code: CyClean-R Mid
CyClean-R is a non-contact web cleaning system, designed for mid webs running in low tension.
CyClean™-R Wide Web Non-Contact Web Cleaning System
Product Code: CyClean-R Wide
CyClean-R is a non-contact web cleaning system, designed for wide webs running in low tension.

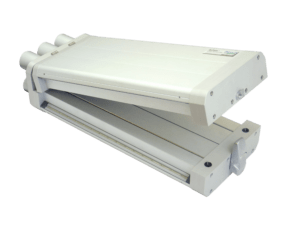

CyClean™ Non-Contact Web Cleaning System
Product Code: CyClean
The Meech CyClean™ web cleaning system is optimised to remove and extract contamination to below 1 micron.

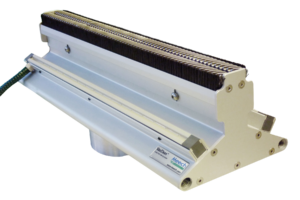

VacClean™ Contact Web Cleaning System
