Cabinet Cooler
Product Code: A70000

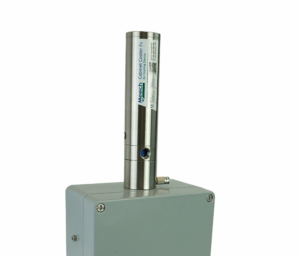

The Meech Cabinet Cooler uses compressed air to provide a cold air source that stops industrial cabinets/panels or enclosures from overheating.
This IP66 rated model is both dust and watertight. Meaning water projected in powerful jets against the enclosure, from any direction, shall have no harmful effects.
Prior to the IP test the Cabinet Cooler was also subjected to three climatic pre-conditioning tests. These tests proved the integrity of the Cabinet Cooler after it had been subjected to temperatures of 90°C for a duration of 672 hours. Following this the cooler was subjected to further temperature endurance test. These tests were carried out in
accordance with IEC60079-0:2017.
The Cabinet Cooler has no electrical/electronic components making them entirely non-electrical. The cooling is provided from a Vortex Tube located inside the cooler. The Cabinet Cooler creates both a hot and cold stream of air, the cold air is directed inside the enclosure whilst the hot air is released to the atmosphere via two holes located on the side of the Cabinet Cooler.
The device is supplied with 4 x Generators that are used to regulate both the air consumption and air temperature. The Yellow 10CFM, Red 15CFM, Blue 25CFM and Brown 35CFM Generators can be easily switched to suit different conditions or applications.
The Cooler can be mounted to the directly to the top, side or underneath of the enclosure via a 26mm diameter hole. An O-ring seal between the Cabinet Cooler and the enclosure wall maintains the integrity of the enclosure.
The Cabinet Cooler is available in both Stainless Steel grades 303 and 316L, allowing it to be used in a wide variety of applications. A Cabinet Cooler System is also available, this includes a digital thermostat and Solenoid valve and allows the cooler to automatically maintain a set temperature. This reduces compressed air and running costs.
Product Codes
Cabinet Cooler unit – IP66 Cabinet Cooler in SS303 – A70025-SS303
Cabinet Cooler System – A70025-SS303 with 24V Thermostat and Solenoid – A70325-SS303-24V
Cabinet Cooler System – A70025-SS303 with 240V Thermostat and Solenoid – A70325-SS303-240V
Cabinet Cooler System – A70025-SS303 with 110V Thermostat and Solenoid – A70325-SS303-110V
Cabinet Cooler unit – IP66 Cabinet Cooler in SS316L – A70025-SS316
Cabinet Cooler System – A70025-SS316L with 24V Thermostat and Solenoid – A70325-SS316-24V
Cabinet Cooler System – A70025-SS316L with 240V Thermostat and Solenoid – A70325-SS316-240V
Cabinet Cooler System – A70025-SS316L with 110V Thermostat and Solenoid – A70325-SS316-110V
DownloadFeatures & Benefits
Small Size allows installation into Small spaces
Reduced maintenance
Supplied with 4 x Generators to control air volume and temperature.
73dBA with red generator at 80 psi (5.4 Bar)
Cabinet Cooler system includes a Digital Thermostat and Solenoid. These will allow you to control compressed air usage and reduce running costs.
The Cabinet Cooler creates positive pressure inside cabinet to stop ingress
70% (2.5 Turns from closed)
For use in Hazardous locations
Ideal replacement for fans that are more commonly used to cool cabinets
Technical Characteristics

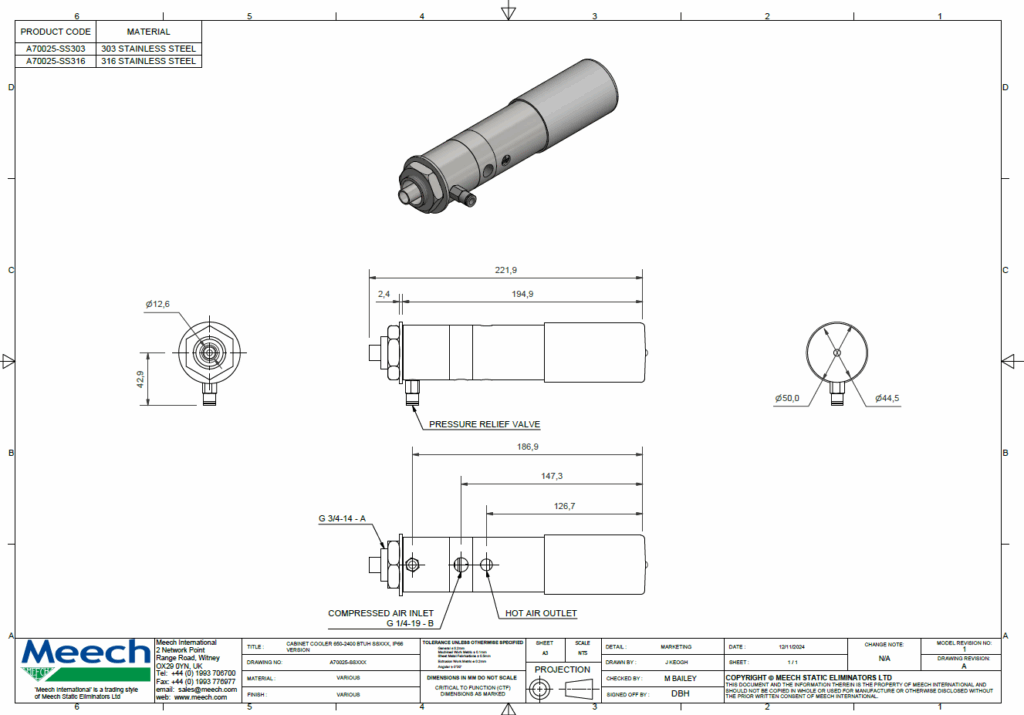

(H) 194mm x (W) 45mm
73dBA (@ 80, psi, 5.5 Bar), with a Red Generator fitted.
190 Watt (560 Btu/hr) to 703 Watt (2,400 Bty/hr)
IP66 (Test Certificate Number TRA055426CC01)
80 psi (5.5 Bar)
55°C
Available in either Stainless Steel grade 303 or 316L
Dependant on inlet pressure the cooler will vent air at between 1.5 & 3kPa (0.015 and 0.03 bar)
In accordance with IEC6079-0:2017. Specimen subjected to three climatic pre-conditioning tests
