Energy Saving Air Amplifiers

Product Code: A15000

Meech Air Technology Energy Saving Air Amplifiers provide large airflows whilst only consuming a minimal volume of compressed air.

A tiny amount of compressed air is released through an adjustable circular slot inside the Air Amplifier creating a ‘tube’ of air. The ‘tube’ of air then travels towards the front creating areas of low pressure behind and in front that entrains ambient air at a ratio of between 4 and 25:1 depending on the size of air amplifier.

Meech Air Amplifiers are available in five sizes in aluminium (three sizes available in stainless steel) to suit a wide range of applications.

For more information or for sales enquiries please contact us.

  Download
Features & Benefits
Innovative design

Giving air amplification ranging from 4 to 25:1
No moving parts

Low maintenance
Adjustability

Application specific set-up (no shims). Leading to hundreds of different applications
Locking ring

Holds specific set-up
Lower noise levels

Up to 50dBA noise reduction compared to ‘open pipe’ systems – Health and Safety Compliant
Available in 5 sizes

From 18mm to 100mm air outlet
Available in aluminium or stainless steel

Suitable for a wide range of industries
Lower compressed air usage

Lower running costs and in turn lower energy bills
Technical Characteristics
Dimensions

A15005 – Extra Small – 44mm (L) x 28mm (H) x 12mm throat (18mm outlet)
A15008 – Small – 73mm (L) x 50mm (H) x 20mm throat (32mm outlet)
A15006 – Medium – 90mm (L) x 60mm (H) x 25mm throat (37mm outlet)
A15015 – Large – 84mm (L) x 76mm (H) x 40mm throat (51mm outlet)
A15030 – Extra Large – 128mm (L) x 127mm (H) x 74mm throat (100mm outlet)
Applications
Images
Documentation

Meech Air Technology - Air Efficiency Range Brochure

Download

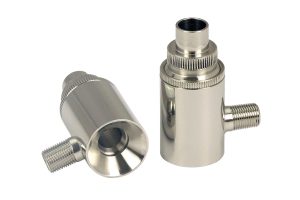

Energy Saving Safety Nozzles, Blow Guns, Air Amplifiers & High Thrust Jets Operating Manual
