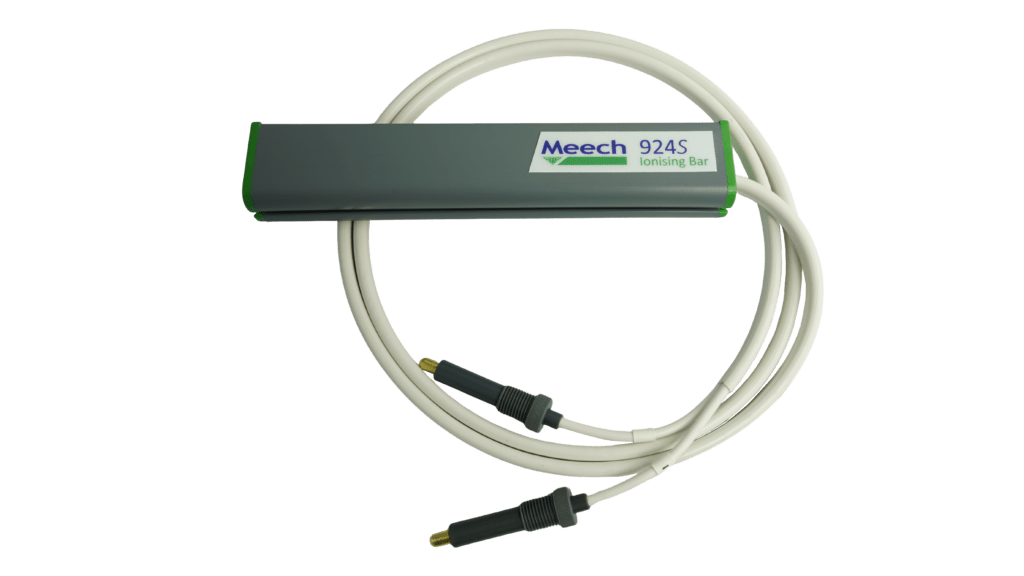

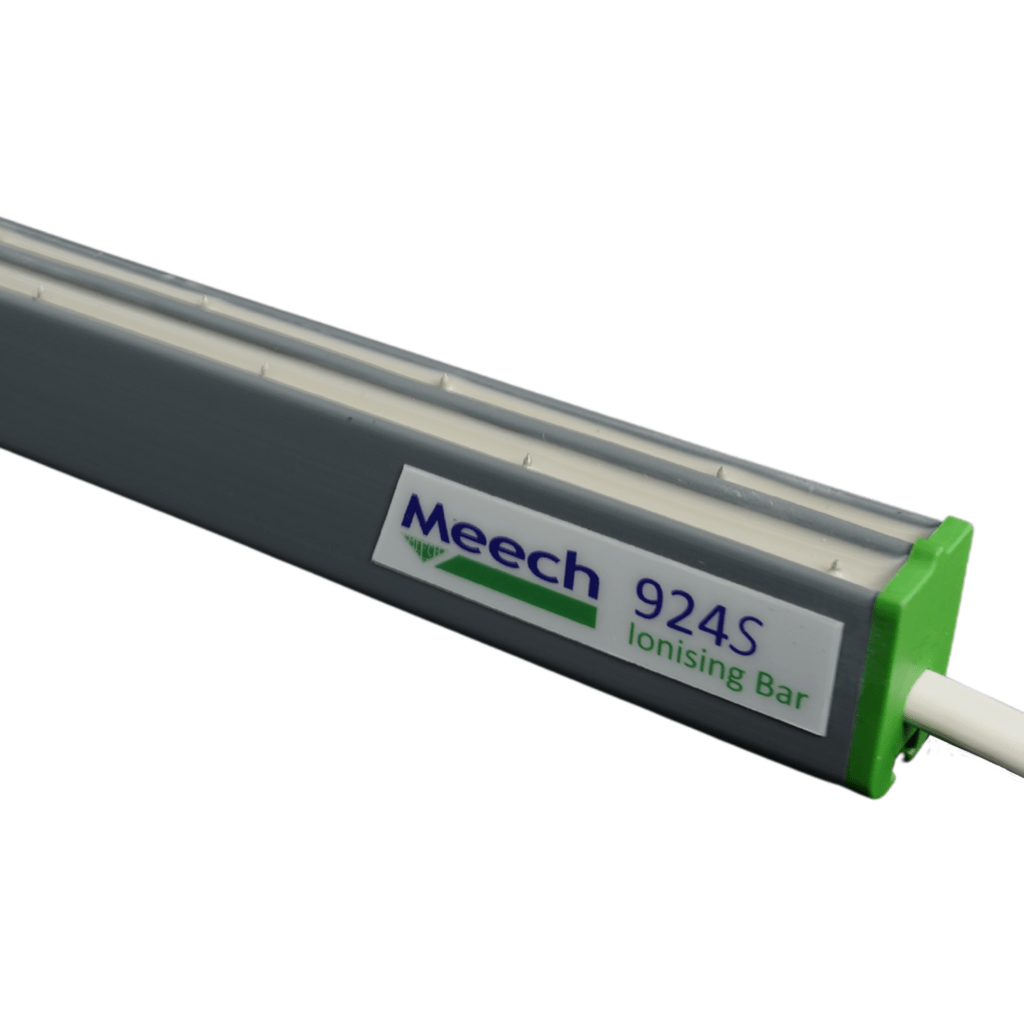

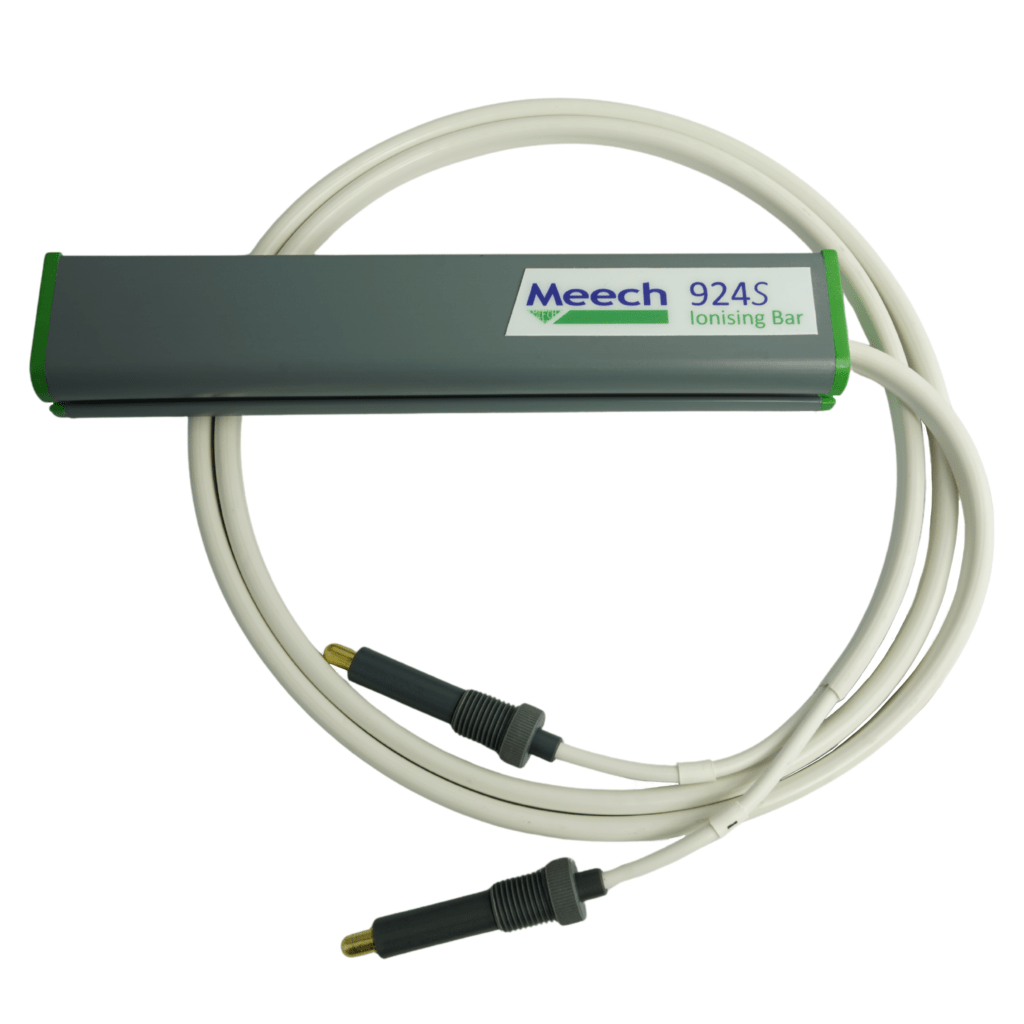

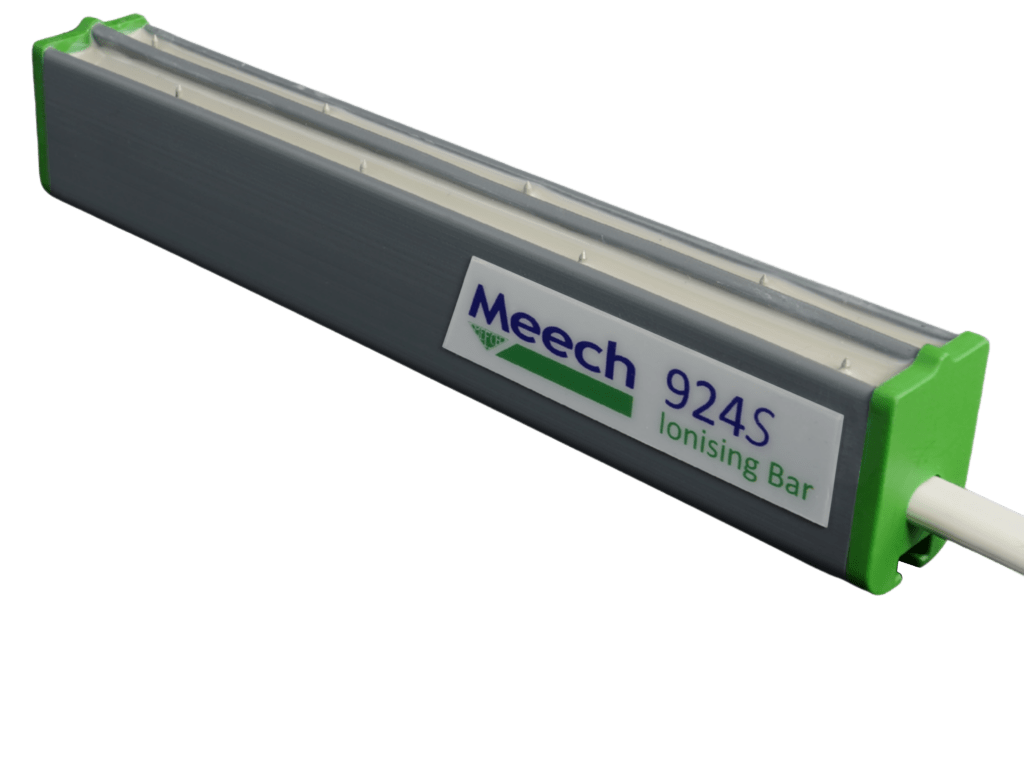

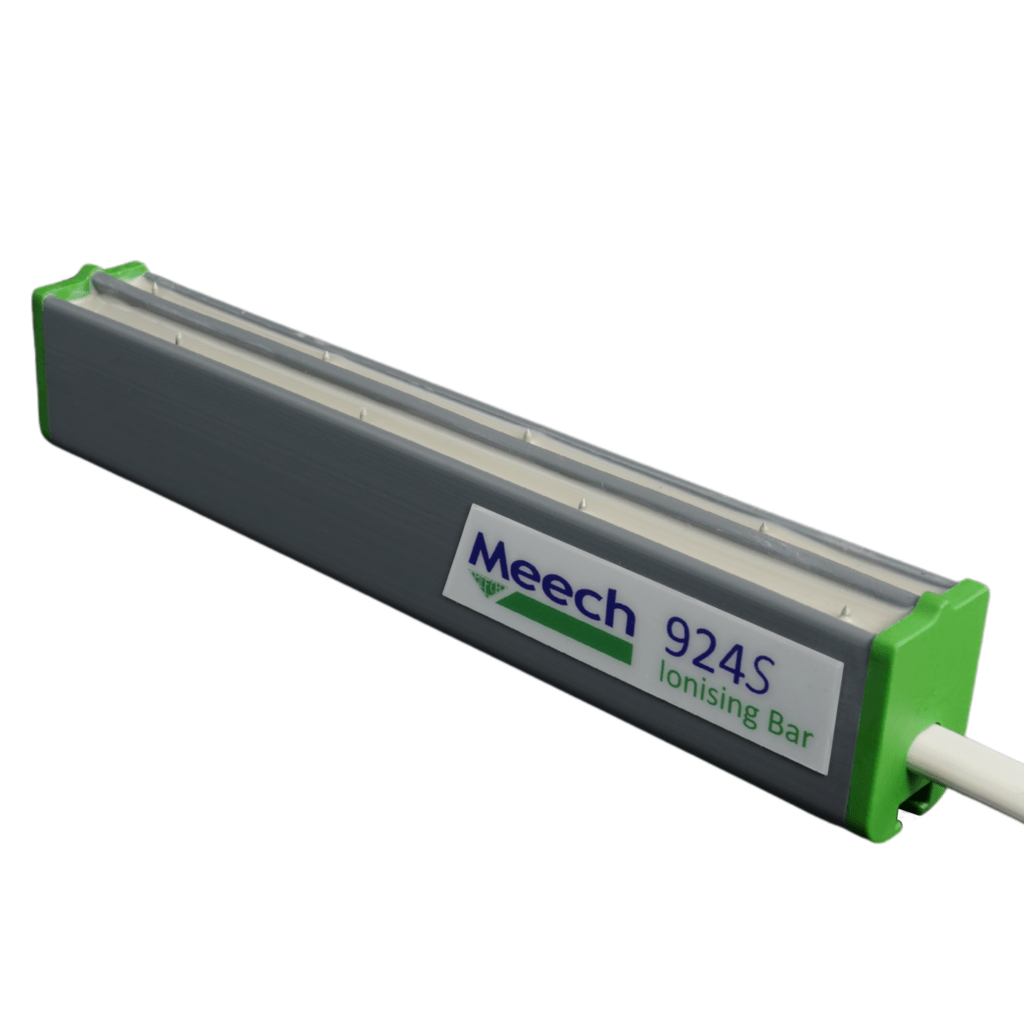

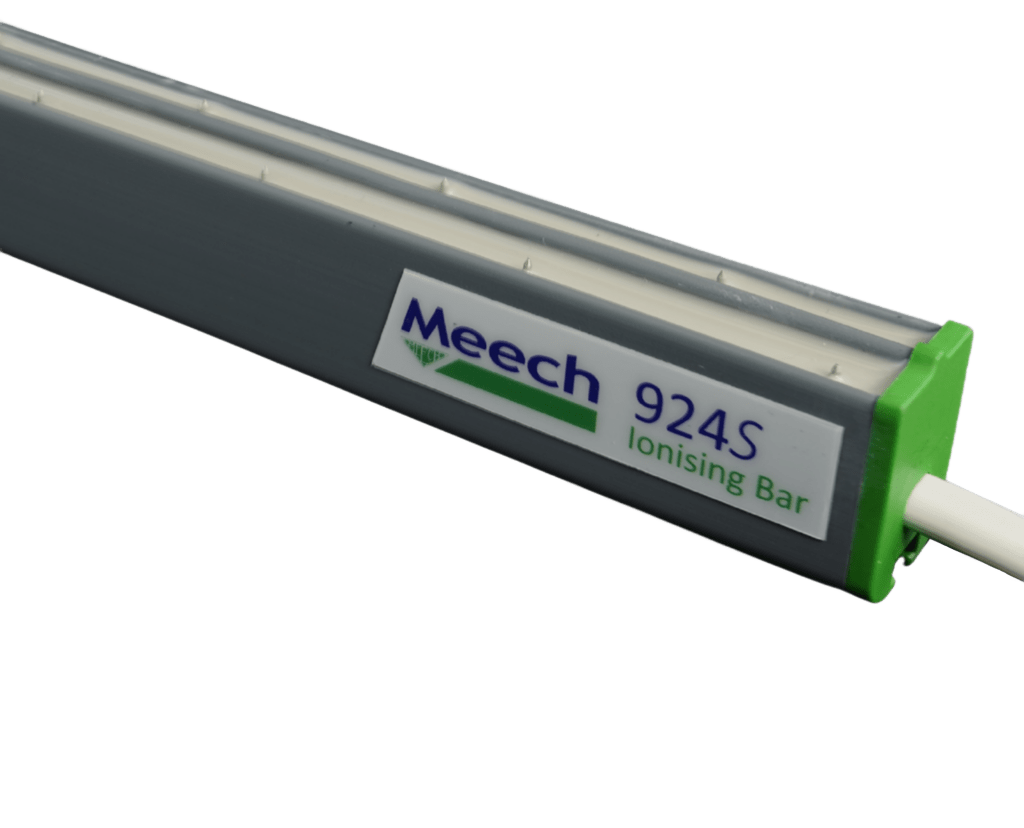

924S Pulsed DC Ionising Bar

Product Code: A924S

The Meech 924S ionising bar has been designed to provide highly effective short-range ionisation using Pulsed DC Technology. It is particularly suited for use on wide format digital printers. At 32mm high by 22mm wide it is extremely compact and designed specifically to provide a solution that works effectively for manufacturers of wide format inkjet printers.

The 924S DC Bar provides ionisation through alternating positive and negative emitter pins mounted in an FR ABS extrusion. The titanium emitter pins are resistively coupled to the high voltage pulsed DC source, rendering the emitters shockless to touch and offering many years of service.

When powered by a 233v4 Pulsed DC Controller, the system gains the advantage of Hyperion technology; allowing remote programming and monitoring of the bar’s performance.

  Download
Features & Benefits
Enabled for adjustable output voltage, frequency and balance

For controlled and optimised ionisation

Small size

Allows easy installation onto the print-head

Shockless titanium emitters

Safe to handle and extremely long-lasting

Divider

Maximises performance between cleaning operations

T-Slot

Easy mounting

Technical Characteristics
Dimensions (cross section W x H x L ) (mm)

22 x 32 x see length

Length

80mm – 3960mm

Pin dimensions

1 x 10mm

Construction

FR ABS

Maximum ambient temperature

60°C

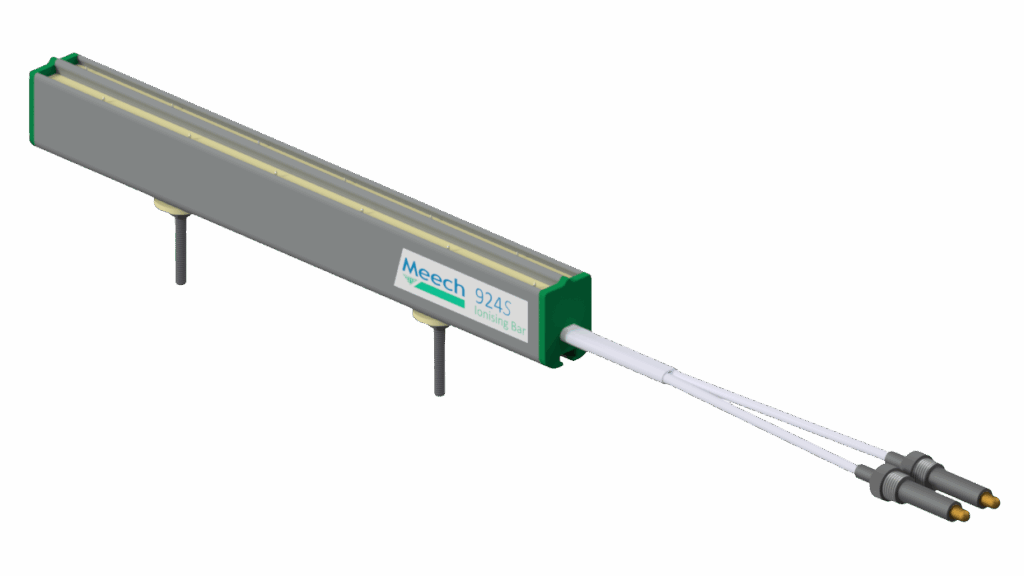

Mounting

‘T’ Slot with M4 studs

HT Cable

Twinned TV20

Cable length

2000mm Longer on request

Connection

Grey HT male plugs

Operating frequency

Default: 20Hz (Adjustable with BarMaster)

Power supply

233v4

Operating Range

20-200mm

Decay Performance (5,000V to 500V)

0.5 < 1 sec at 150mm

Environmental protection

IP68

Ozone level

Less than 0.01ppm

Input Voltage

Up to 8kV
