Hyperion 233v4 Pulsed DC Controller
Product Code: A233v4
The Hyperion 233v4 Pulsed DC Controller is a compact and powerful 15kV controller, designed with the ability to directly power two Meech pulsed DC ionisers. If additional ionisers are required, these can be connected via splitters. The versatility and flexibility of the 233v4 make it suitable to use in a wide range of industries, with the advantage of a simple installation and controller set-up procedure.
The 233v4 features all of the adjustability and monitoring that you would expect from a Hyperion product. Fully BarMaster compatible, the output voltage, frequency and balance can all be adjusted to suit particularly difficult applications. The adjustable output voltage is particularly useful in very sensitive applications such as those found in cleanroom environments.
A key feature of the 233v4 is Meech’s Ion Current Monitoring technology which allows greater control of the ionisation performance, by monitoring the effectiveness of the ionising output. This is supported with integrated output signals which alert operators of the need to clean the attached ioniser to achieve maximum performance. For example, if performance drops, a flashing red LED will alert the operator to encourage cleaning of the equipment.
DownloadFeatures & Benefits
Make adjustments to the output settings using the Meech BarMaster
Can power 2 ionisers simultaneously
IP67
Allows the power to be reduced for sensitive applications
Allows faster decay times
Allows optimisation for different target distances
Technical Characteristics
24V DC
4 Pin M8 Connector
2-15kV Pulsed DC, adjustable with BarMaster
4 (2 Positive, 2 Negative)
Adjustable with BarMaster from 1-20Hz
Adjustable with BarMaster from 80:20 to 20:80 Pos:Neg
5mA Maximum
Maximum 625 mA
0-55°C
Red/Green/Amber LED
IP67
3-pin M8 connector (blue and brown wires used)
HT failure 24V signal
46 x 93 x 129
650g approx
DuraForm PA (Nylon 12).
Applications
Images
Related Products
251 Ion Gun
Product Code: 251
Meech’s Model 251 Ion Gun is suitable for contamination blow-off and neutralisation of static charges in electronic applications and cleanroom environments.

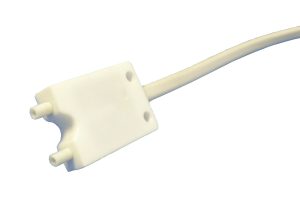

Private: 976 Pulsed DC Ionising Head
