959EX Hazardous Area Air Curtain

Product Code: 959EX

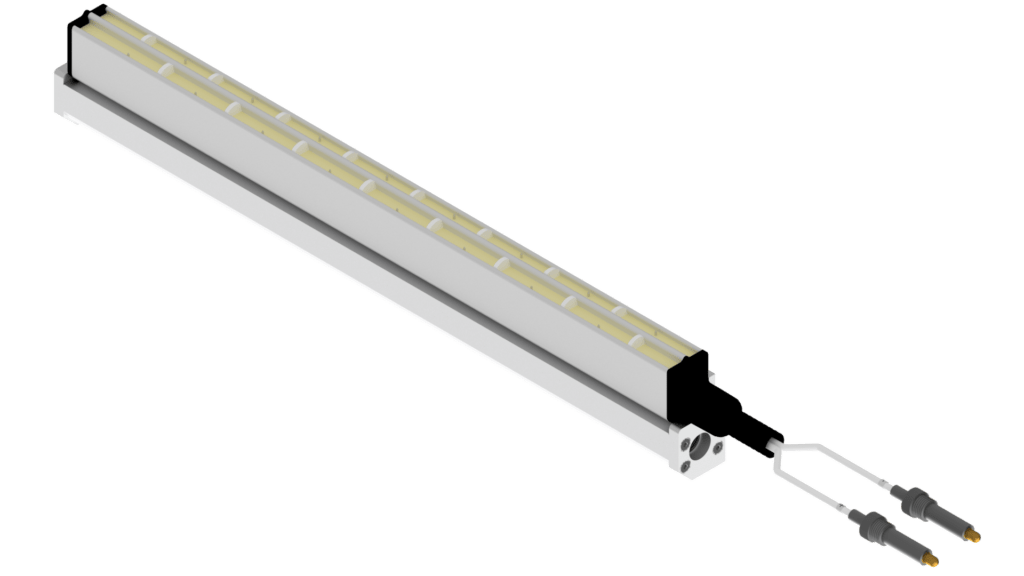

Model 959Ex consists of a Meech 924Ex static
eliminator bar mounted on to a linear air flow
amplifier (air curtain).

It produces a high speed, laminar beam of
ionised air for long range static neutralisation
and dust removal. It is available in a variety of
lengths.

The 924Ex Bar is BASEEFA approved for use
in hazardous areas.

Baseefa: 18ATEX0082X
ATEX: II 2G IIC T4 Gb
(Ta = -20°C to +38°C)

IECEx BAS 19.0033X
IECEx: Ex sb IIC T4 Gb
(Ta = -20°C to +38°C)

Download
Features & Benefits
Laminar air flow

Reduces recombination of ions, increasing effective range

High speed air flow

Long range ionisation capability

Air amplification

Entrainment of ambient air at a ratio of up to 25:1, which reduces compressed air consumption and delivers a massive airflow to the target

Easy maintenance

Optimum performance and equipment life

Clean Pins Alert

Ensures good ionisation performance is maintained

Adjustable ionisation performance

Ionisation voltage, frequency and balance adjustable with BarMaster or SmartControl Touch

Technical Characteristics
Available lengths

240mm to 920mm

Weight

Approximately 3.5 Kg per metre length

Operating voltage

Maximum 5.5kV

Pin Current

≤70 µA

Emitter Pins

Titanium, with extremely low wear rate

Cable

5 metres of sleeved TV20 cable as standard. Longer lengths can be ordered.

Power Supply

233v4HL 5.5kV Pulsed DC Controller (supplied separately)

Mounting

M4 studs securing static eliminator bar can be used for mounting

Maximum temperature

38°C (Temperature limited by the certification of the 924Ex)

Air consumption

122 lt/min at 5 bar per 25mm of air curtain length (4.3cfm at 80psi per inch length)
Recommended feed pipe size = 12mm OD. Dual air inlets.

Noise

Quiet operation. Typically 50dBA less than the equivalent drilled or slotted pipe.
