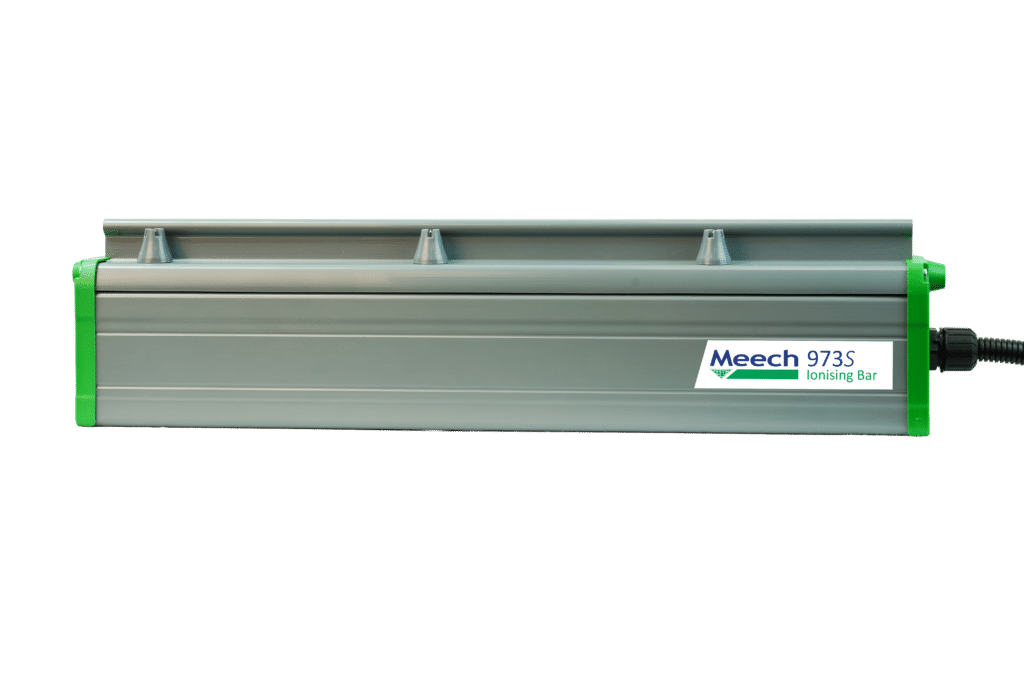

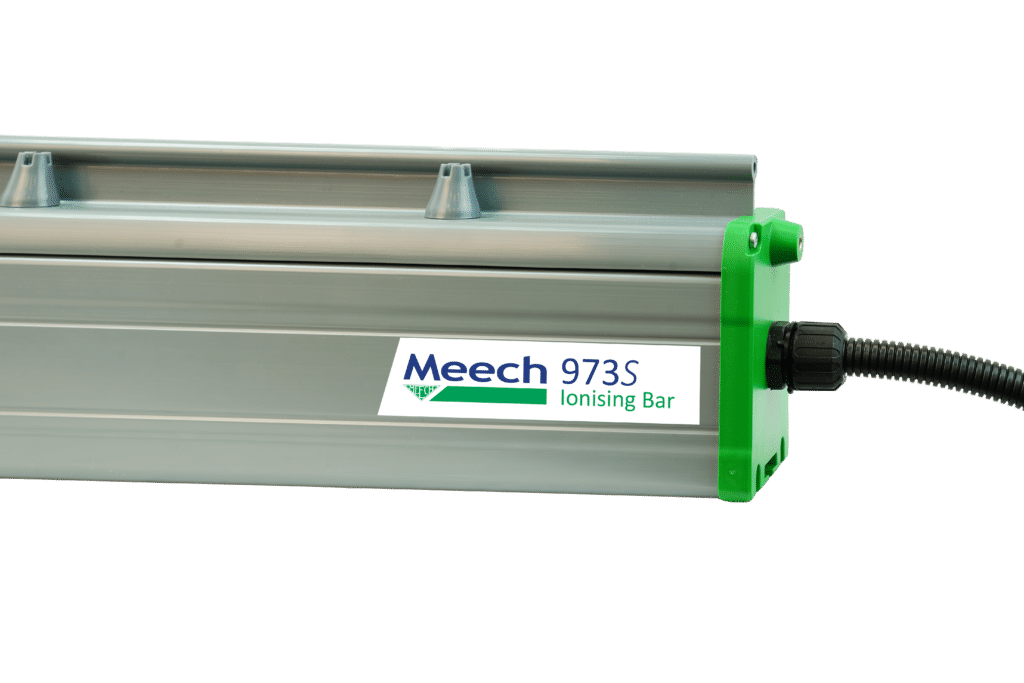

973S Medium to Long-Range Ionising Bar
Product Code: A973S-XXXX-01
The 973S Medium to Long-Range Ionising Bar is a powerful static eliminator designed for printing, converting and process machinery industries. Developed to provide effective static control across a wide range of applications, it helps manufacturers improve process reliability, enhance product quality and increase operational efficiency.
Furthermore, the 973S features pulsed DC technology, a 15 kV output voltage and PulseDrive PDC Controller compatibility. When connected to the PulseDrive PDC Controller, the 973S gains the advantages of Hyperion™ technology, enabling performance adjustment and remote monitoring. In addition, an operating range of 150 to 750 mm plus an integrated air-boost increases performance at greater distances.
The 973S Medium to Long-Range Ionising Bar builds on the success of our 971 Pulsed DC Ionising Bar. Alternatively, for longer range applications (750 – 1500 mm), see the 973IPS Long Range Ionising Bar.
DownloadFeatures & Benefits
150-750 mm range, with air boost that can be used for increased capability.
LED indication of operational status of bar, fault/needs cleaning or standby.
Resistively coupled and replaceable for shockless operation and long life.
15 kV output voltage for medium to long-range ionisation.
One of the best materials with extremely low wear rates.
Adjustable voltage, frequency & balance via PulseDrive PDC Controller.
Technical Characteristics
FR-ABS with pure titanium emitters.
Dual PLC-compatible alarm outputs with LED status.

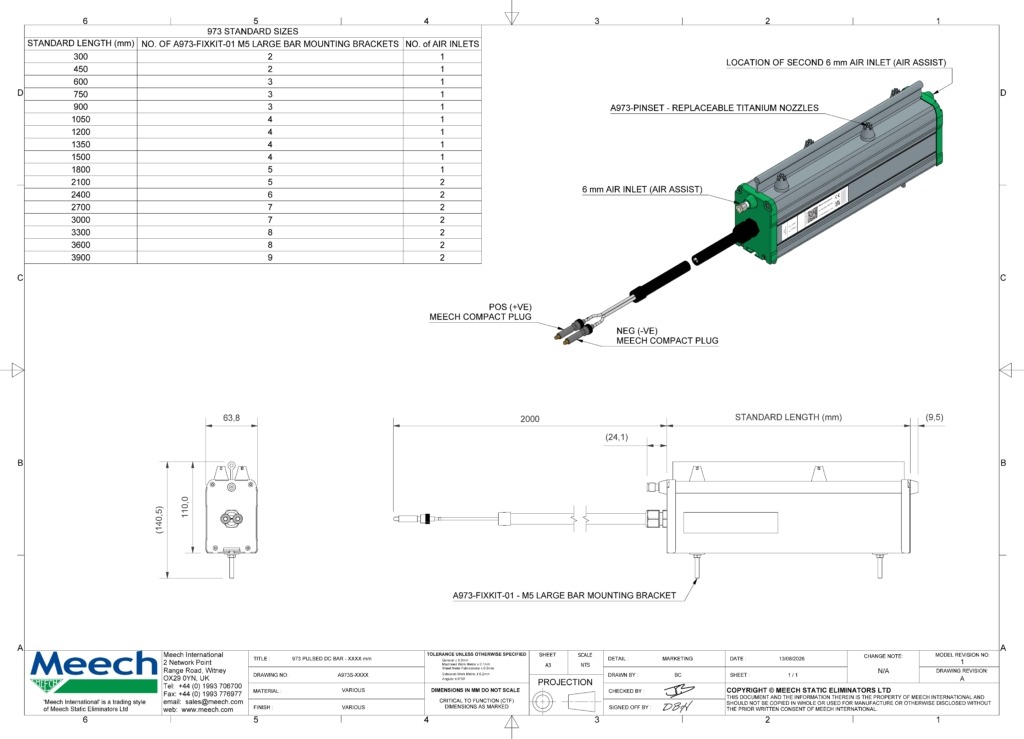

64 mm x 110 mm (W x H), available lengths 300 mm to 3900 mm.
2 kV DC–15 kV DC. Max input current 0.65 mA, 2 x HV connectors (1 x pos, 1 x neg).
1.9 kg/metre.
0 to 55°C. IP54 construction.
Adjustable (2 to 15 kV) via PulseDrive PDC Controller.
CE & RoHS.
Adjustable (1 to 20 Hz) via PulseDrive PDC Controller.
T-slot with M5 x 35 mm T-slides.
Adjustable (20 to 80%) via PulseDrive PDC Controller.
