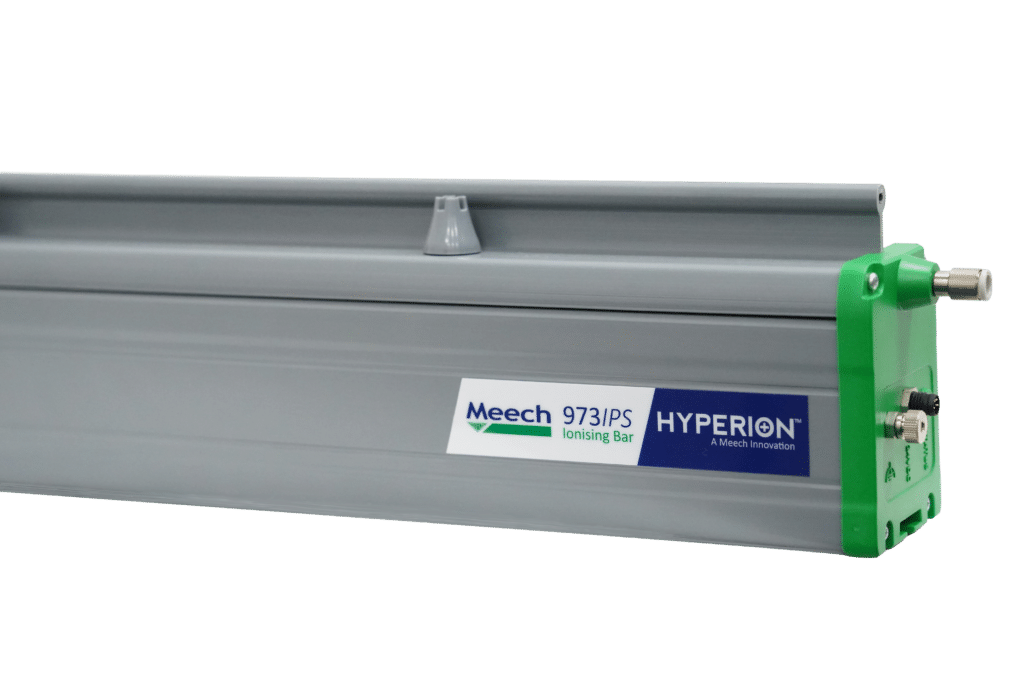

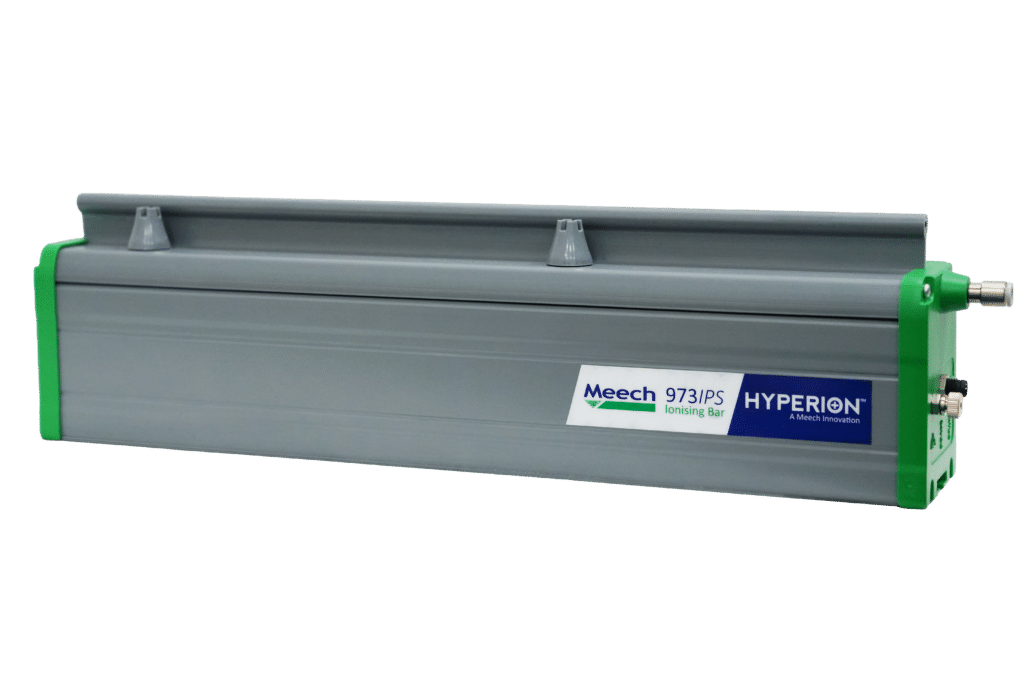

Hyperion™ 973IPS Long-Range Ionising Bar
Product Code: A973IPS-XXXX-01
The 973IPS Long-Range Ionising Bar delivers powerful long-range static elimination, combining proven Hyperion™ technology with our most powerful ionisation performance yet. Developed to provide effective static control across a wide range of applications, it helps manufacturers improve process reliability, product quality and operational efficiency.
Furthermore, the 973IPS features pulsed DC technology, a 35 kV output, ion current monitoring (ICM), fault/cleaning alarms and SmartControl™ Touch compatibility. Building on our continuous improvement programme, it also increases ionisation output and introduces practical installation upgrades. For example, shockless, resistively coupled titanium emitter pins with a rounded profile maximise performance and corrosion resistance. Additionally, a raised bar profile, wider T-slot and redesigned T-slide optimise ionisation and installation security. Full-length ionisation coverage ensures effective ionisation across the entire bar length.
In addition to it’s new technology, the 973IPS retains the key features of our Hyperion range. For example, integration with SmartControl™ Touch or the BarMaster Programmer enables performance adjustment and remote monitoring. Additionally, LED’s indicate normal status, standby mode and cleaning requirements, meanwhile dual alarm outputs support easy integration with PLCs, buzzers and remote lamps.
The 973IPS Long-Range Ionising Bar is ideal for applications such as slitter rewinders, transit bag machines and turret rewinders. It builds on the success of the 971IPS-30 Pulsed DC Ionising Bar and as a result, delivers the most powerful long-range static elimination available today.
Features & Benefits
450-1500 mm range, optimised at 1000-1500 mm with air boost.
LED indication of operational status of bar, fault/needs cleaning or standby.
Resistively coupled and replaceable for shockless operation and long life.
Dual alarm lines signal maintenance needs or system failures.
One of the best materials with extremely low wear rates.
Actual length = effective length.
Integrated power supply delivers ±35 kV pulsed DC.
Adjustable voltage, frequency & balance via BarMaster or SmartControl™ .
Technical Characteristics
FR-ABS with pure titanium emitters.
Dual PLC-compatible alarm outputs with LED status.

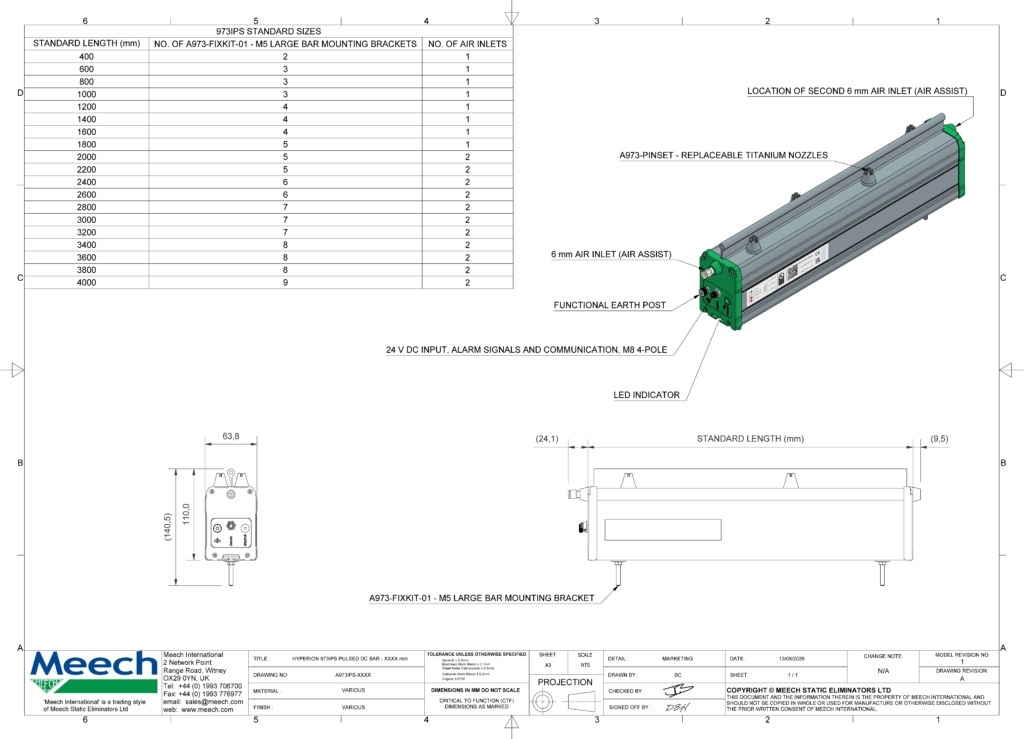

64 mm x 110 mm (W x H), available lengths 400 mm to 4000 mm.
24 V DC (22–28 V). Max input current 1.5 A, 4-pin M8 connection.
2.3 kg/metre.
0 to 55°C. IP54 construction.
Default 30 kV, adjustable (6 to 35 kV) via BarMaster or SmartControl.
CE and UL.
Default: 1 Hz, adjustable (0 to 9.5 Hz) via BarMaster or SmartControl.
‘T’-slot with M4 x 35 T-slides.
Default 60% pos, adjustable (20% to 80%) via BarMaster or SmartControl.
