994 Hydra IML Pinning System

Product Code: 994-HYDRA

The 994 HYDRA is a miniaturised in-mould labelling pinning system. It is especially useful on applications where small items are being moulded. For example, yoghurt pots and drinks containers can be of a small diameter and require the pinning heads to be small also.

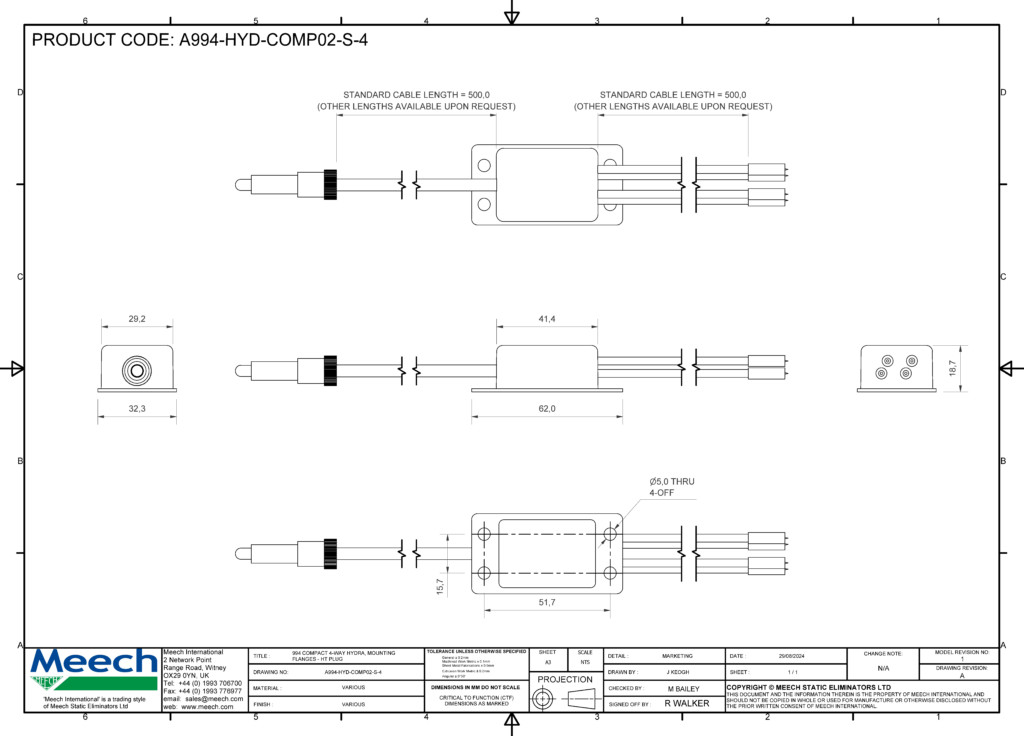

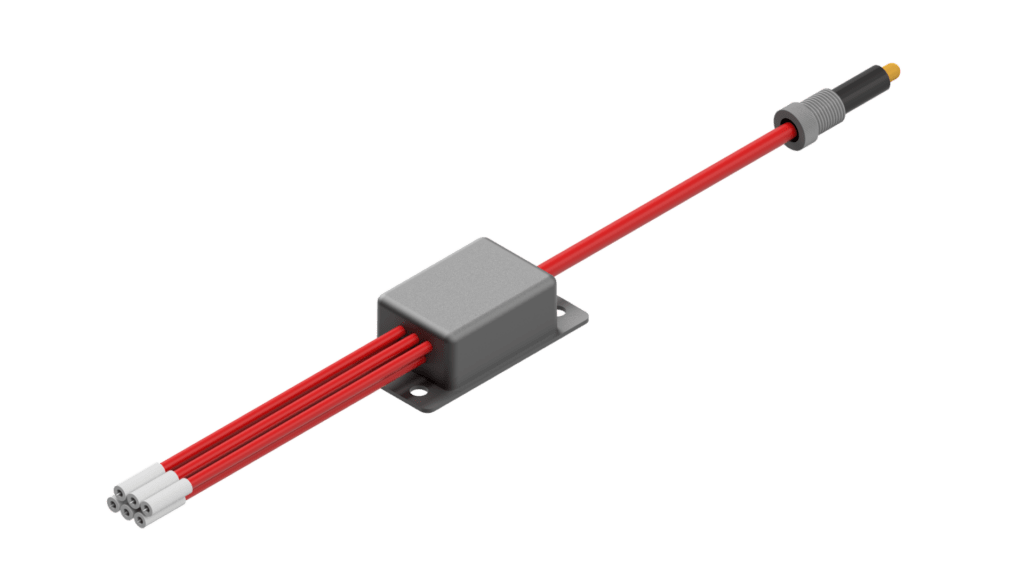

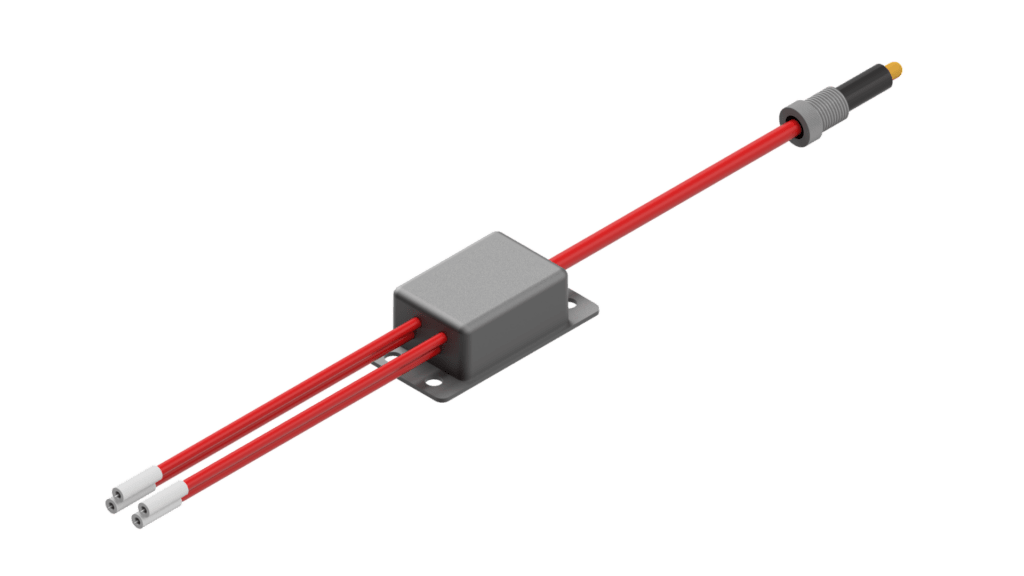

The standard system comprises a Resistively Coupled Distributor with either four or six pinner cables. It has a mounting footprint of 50mm x 86mm. The resistive coupling of the distributor controls arcing and provides independent operation of the pinning heads.

Download
Features & Benefits
Miniature pinning head (5 x 15mm)

Fits small mould tools

Resistive coupling

Smooth, spark-free pinning. Independant operation of each pin.

Small distributor housing

Easily mounted on tool

Technical Characteristics
Dimensions

Pinning Head 5mm dia x 15mm

Dimensions

Distributor 50mm x 86mm

Weight

175g

Construction

Pinning Head – PTFEDistributor – ABSSplitter – PVC

Maximum operating temperature

Pinning Head – 105°CDistributor – 90°CSplitter – 65°C

Power source

994 IML Generator

HT Cable

Pinning Head – 450mm
Distributor – 1000mm

Operating voltage

Up to 20kV

Images
