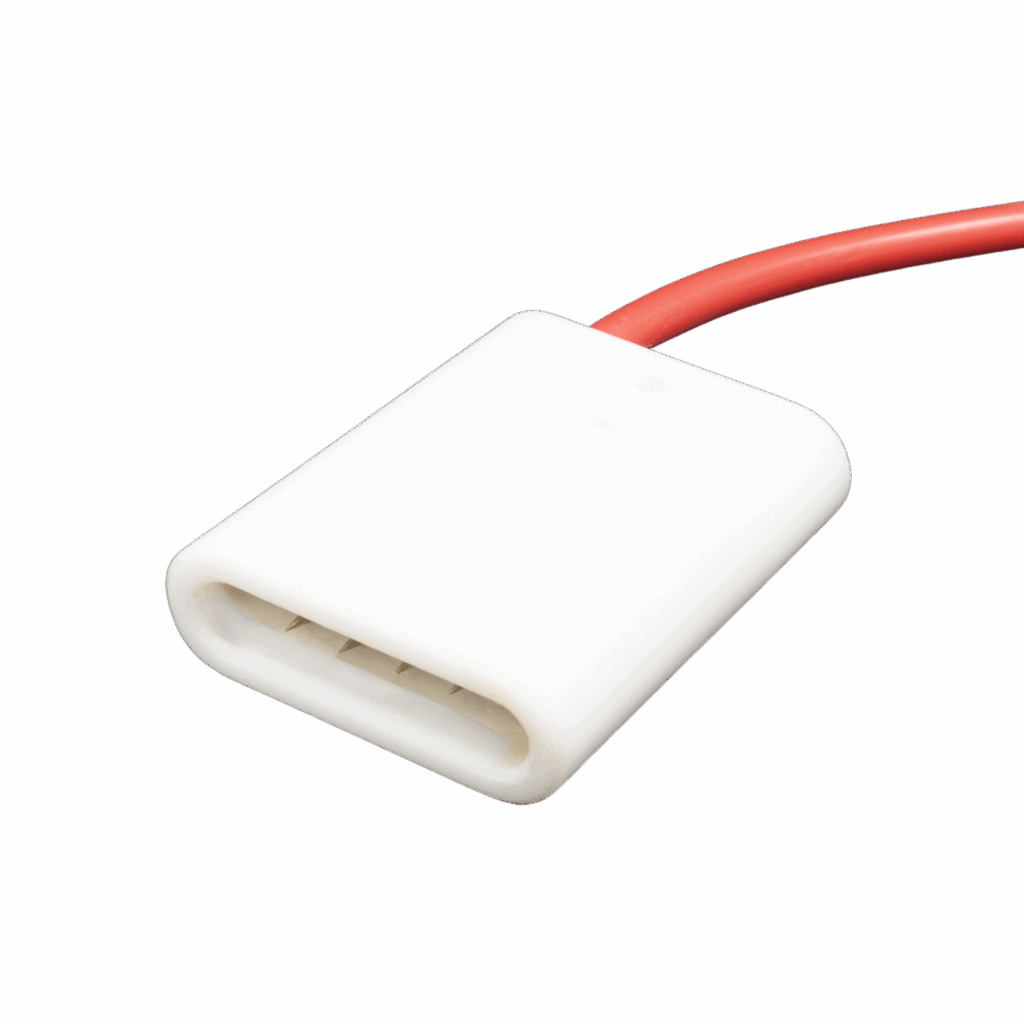

995 Mini 4 Pin Pinning Head
Product Code: A995-MINI-4PIN
The 995 Mini 4 pin pinning head has been designed to deliver exceptional pinning of multi-layer plastic and is commonly used during bag making manufacturing and on flow-wrapping machinery. The 995 Mini 4 pin pinning head can also be used for spark detection.
Furthermore, the 995 Mini 4 pin pinning head can be operated at up to 30kV (via IonCharge30) and being resistively coupled, is near shockless in normal operation.
DownloadFeatures & Benefits
Spark free operation
Powerful pinning
Technical Characteristics

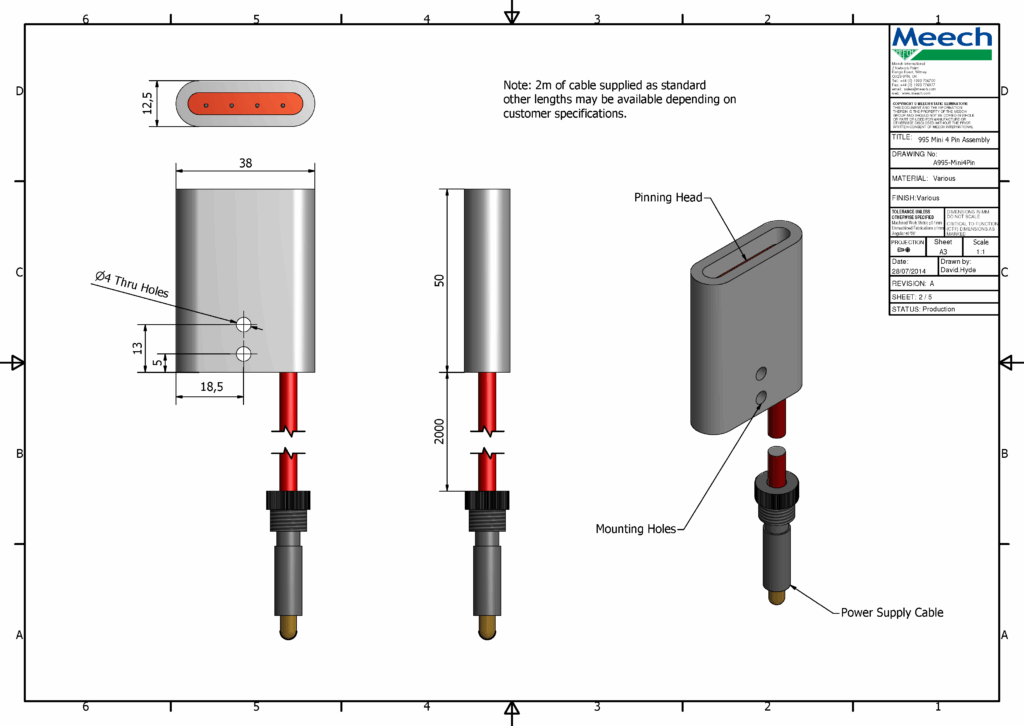

(L) 38mm x (W) 12.5mm x (H) 50mm
+/- 30kVDC
2000mm 40kV UL 3239 HT Cable. Longer lengths can be specified when ordering
Machined PTFE body, Titanium emitter pins
105°C
IonCharge30
Machined Titanium
Applications
