EX JetStream™ Ionising Air Knife System
Product Code: AJS-E-XXXX-01
The unbeatable EX JetStream™ Ionising Air Knife System removes contamination and eliminates static from a diverse range of applications in hazardous areas.
The blower produces a high volume of air which exits the air knife through a pre-set slot in the manifold and targets the surface with precision and minimal air turbulence. At this point, powerful ionisation neutralises the static charge that holds the dust in place, allowing the ionised air to effectively dislodge and remove the contamination.

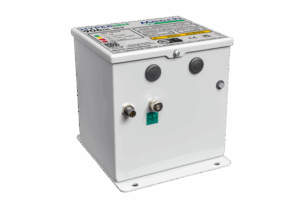

The EX JetStream™ Ionising Air Knife System features 914EX Short-Range Ionising Bars and requires a 906HL-5KV Power Unit. Our 914EX bar is an outstanding static eliminator with ATEX certification, intended for use in hazardous areas. We developed this system for industries such as food/beverage, plastics, glass, metal, packaging & automotive and engineer it using hard anodised aluminium and stainless steel, making it suitable for use in most environments.
Additionally, the EX JetStream™ Ionising Air Knife System has several benefits over other air blow system styles. Particularly, it reduces running costs by typically 70-90% compared to compressed air alternatives and delivers a more balanced, consistent performance.
Evidently, the EX JetStream™ Ionising Air Knife System provides a better performing, energy efficient and low maintenance solution. For use in hazardous zones, regardless of the application, users must position the blower and the power unit outside of the hazardous area.
DownloadFeatures & Benefits
Meech 914EX Short-Range Ionising Bars deliver fast, consistent static removal.
Made from anodised aluminium and stainless steel for use in most environments.
Cost efficient compared to compressed air.
Reduces contaminated ambient air blown onto the substrate.
Delivers a clean ionised airflow, essential for optimum cleaning performance.
Ensures even delivery of the airflow along the length of the Air Knife.
Provides both high air pressure and high air volume, key factors in cleaning performance.
Top/end feed locations to fit low-height installations (end only available ≤1000 mm).
Delivers a uniform, continuous blade of ionised air for consistent performance.
Blower silencers and enclosures reduce noise to 70 dBA.
Unique design characteristics greatly simplifies maintenance procedures.
Approved for use in explosion hazardous zones.
Technical Characteristics
Hard-anodised aluminium body, stainless steel end plates and fixings.
II 2 GD.
Anodised aluminium outer with PVC liner, potted components and Titanium emitters.
Inlet or inline filtration options, as standard rated to 5 micron.
From 300mm to 3000mm. If a longer Air Knife is required, please contact us.
Blower silencers and enclosures reduce noise to 70 dBA.
Baseefa10ATEX0097X.
Three control options: none, simple (on/off/E-stop), or PLC for full line integration.
