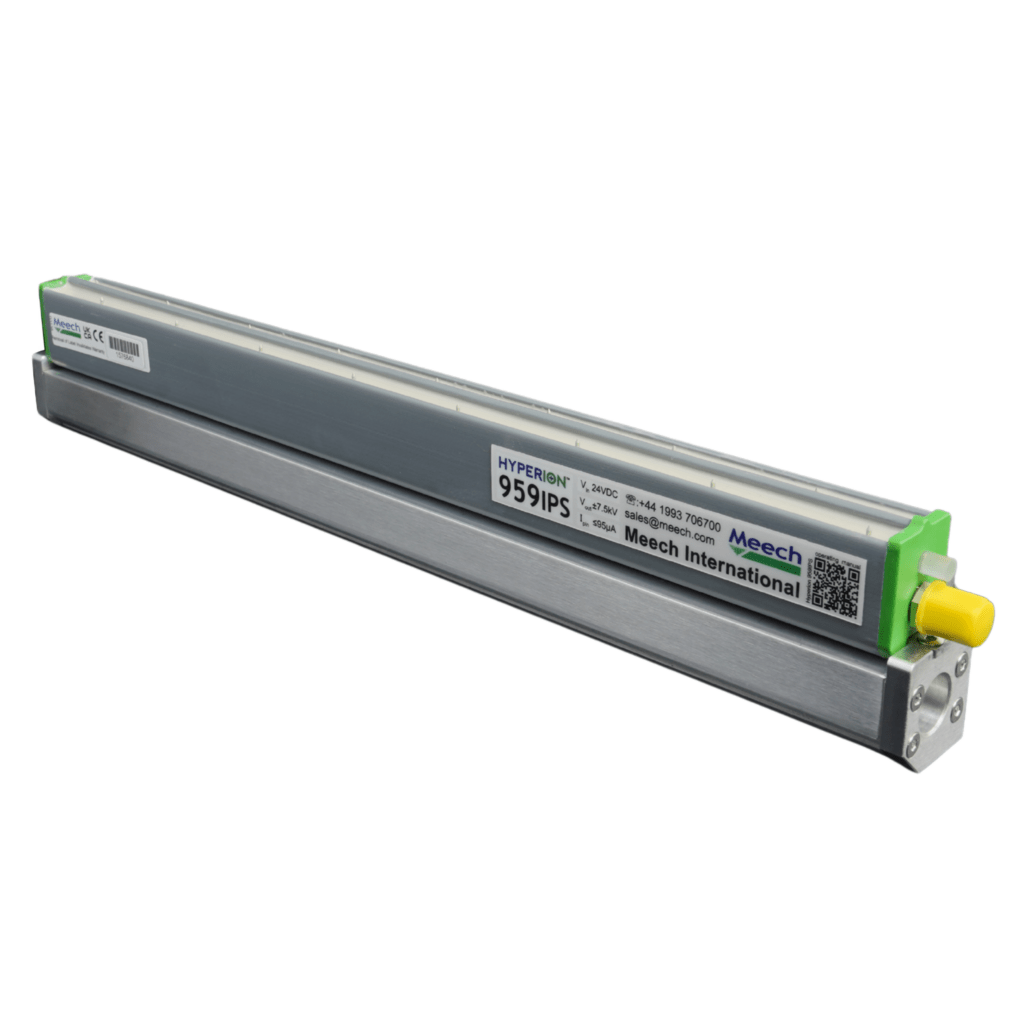

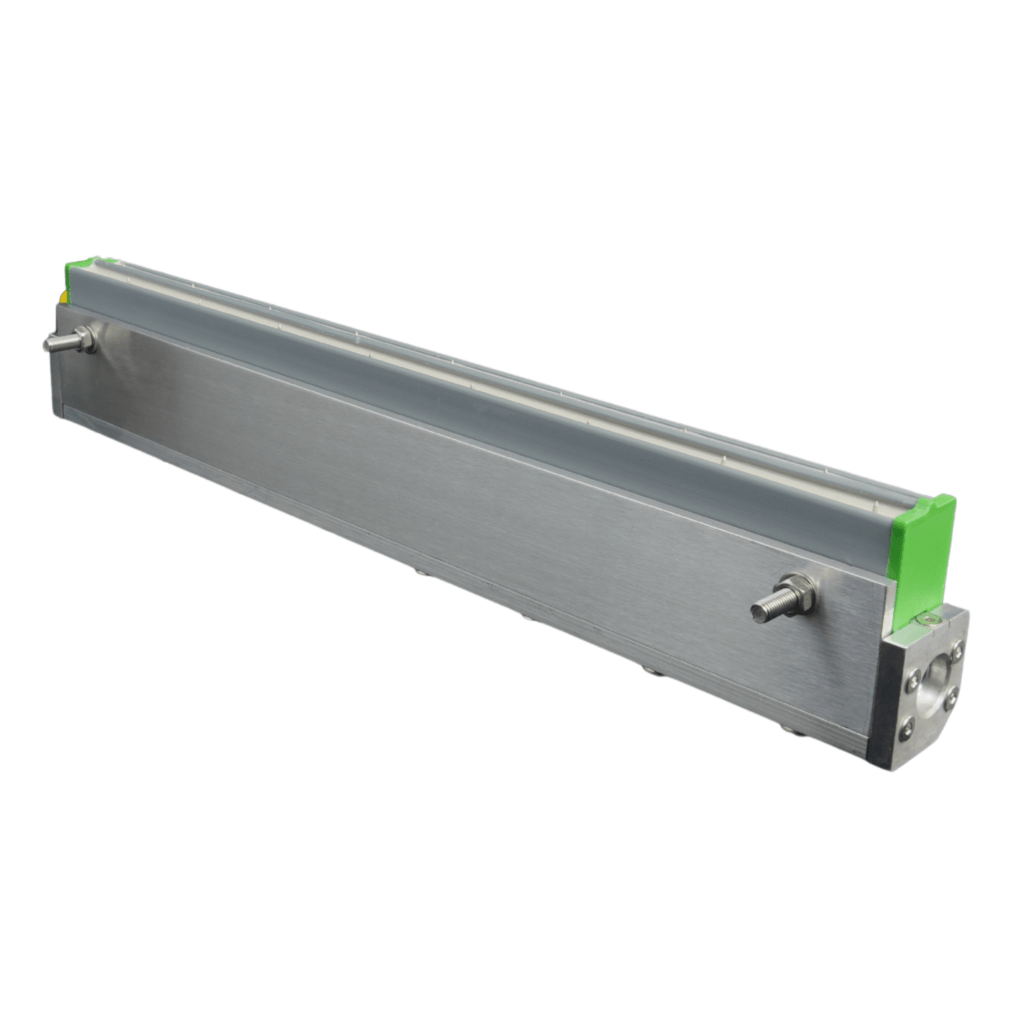

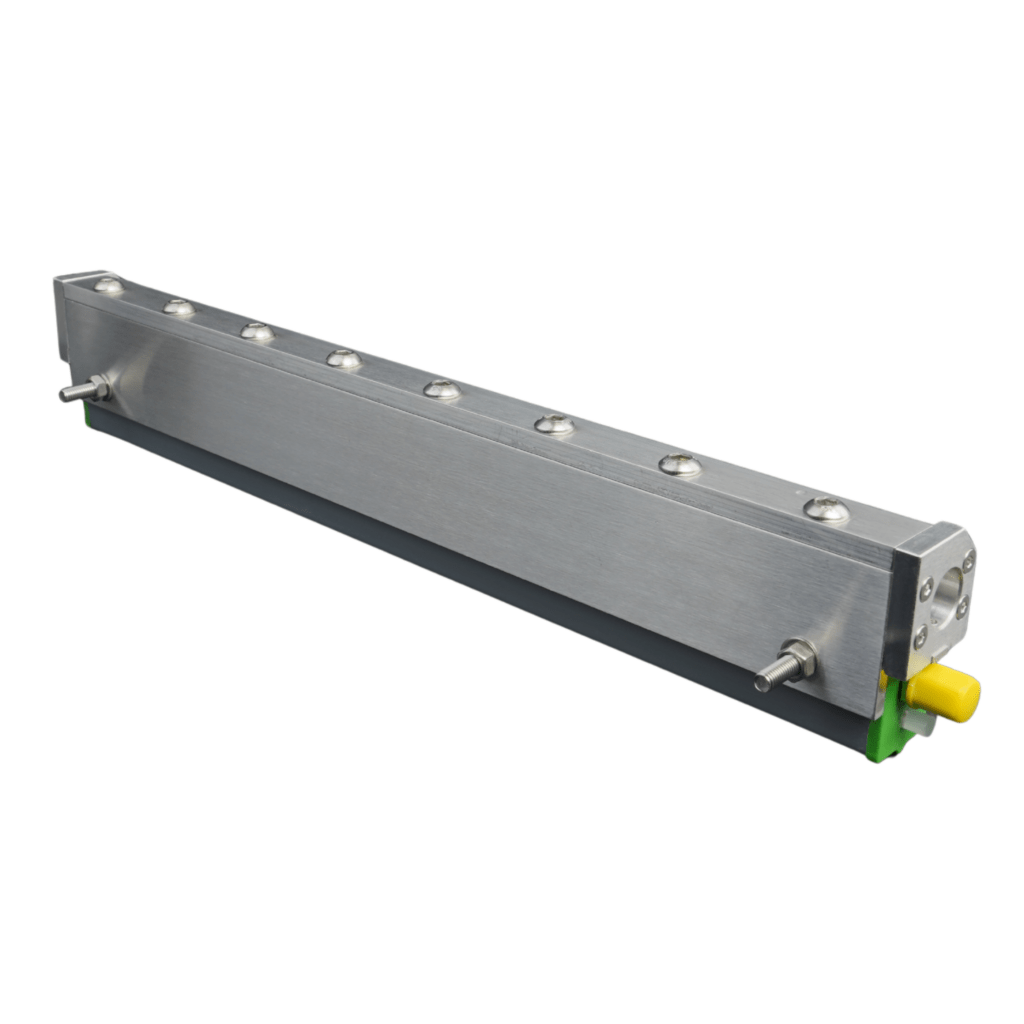

Hyperion 959IPS Ionising Air Curtain
Product Code: A959IPS
The Hyperion 959IPS ionising air curtain is an extremely versatile product that provides effective static neutralisation and dust removal for a wide range of industrial applications.
The unit comprises a Hyperion 924IPS mounted on a Meech energy saving air curtain. Combined they provide a high speed laminar sheet of ionised air.
As with other Hyperion products, the 959IPS features Meech’s Ion Current Monitoring (ICM) technology, which ensures performance is maintained with local and remote alerts when the bar needs cleaning.
Fully BarMaster compatible, the frequency and balance can be adjusted to optimise performance.Download
Features & Benefits
20-300mm for dust removal combined with a typical effective ionisation range of up to 300mm.
Can cut compressed air demand by up to 70%, reducing running costs.
Requiring a 24V DC supply removes the need for high voltage wiring to the ionising bar.
The integral pulsed DC power supply uses surface-mount high voltage components. This reduces the overall size of the bar.
Output voltage, frequency and balance can be adjusted using the BarMaster programmer.
Adjustable output optimises the bar for a range of applications.
Meech Ion Current Monitoring (ICM) technology detects when the 924IPS needs to be cleaned. The LED on the bar alerts operators of the need for cleaning. This ensures peak performance is maintained.
IP66 construction makes the ionising air curtain suitable for harsh environments.
An output signal will activate when the bar needs cleaning or a fault has been detected.
This will alert operators remotely to attend the bar.
28mm x 59mm (Maximum Length 1800mm)
FR ABS / Aluminium
24V DC (21-27V DC)
Adjustable, +/- 3 to 7.5kV pulsed DC
Default: 20Hz (Adjustable with BarMaster)
Default: 54% Positive, 46% Negative (Adjustable with BarMaster)
‘T’ Slot with M4 x 20mm studs
Sharp Titanium Pins
112 l/min at 5 Bar per 25mm of length
