Hyperion IonCharge30 (25W)
Product Code: AIC30-25DC-N-00 (negative variant)
AIC30-25DC-P-00 (positive variant)

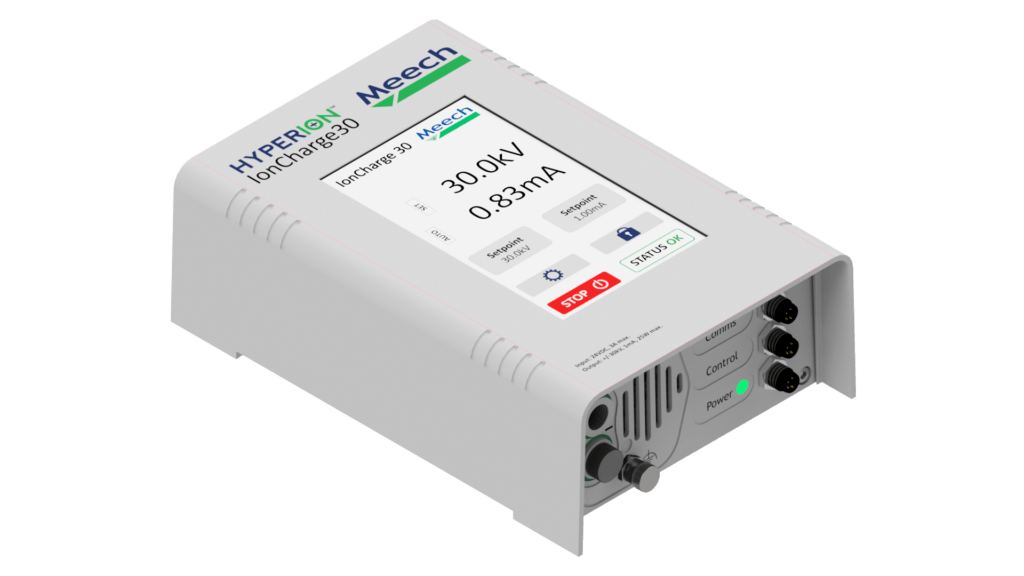

The Hyperion IonCharge30 (25W) is a compact high-performance static generator in Meech’s advanced range, which also includes the larger higher powered IonCharge50.
IonCharge30 is for use across a range of common applications including pinning, bag making and card insertion. It uses advanced high-voltage technology and intelligent control software to deliver a precisely regulated static charge through Meech’s range of static generator bars and pinning heads. The static charge can be either positive or negative (model dependent) and is used to impart temporary bonding between materials, at least one of which is insulative.

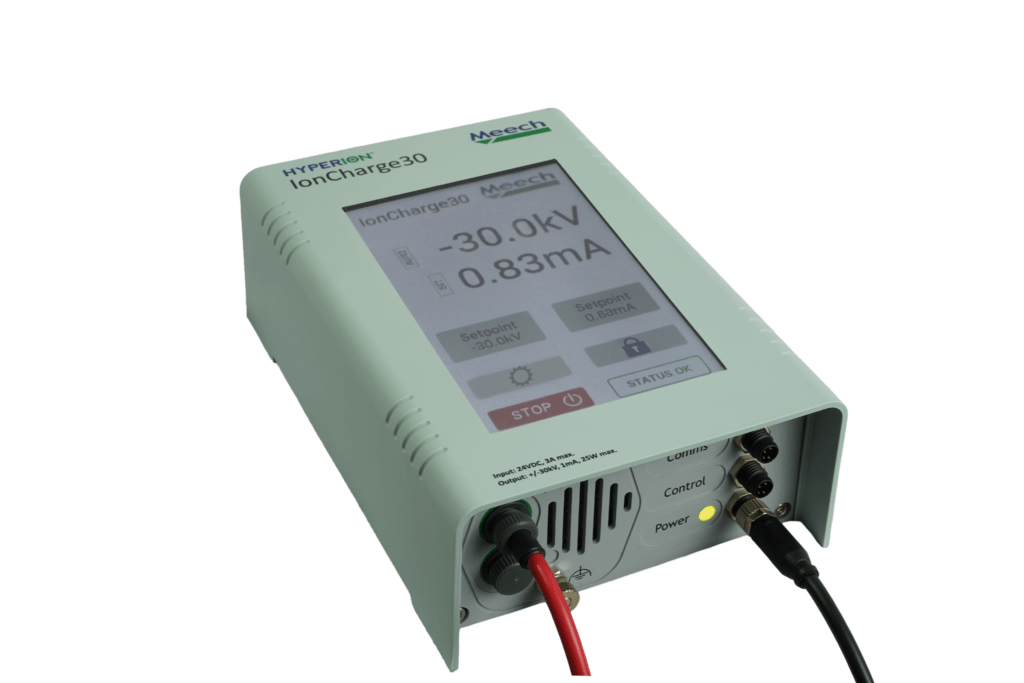

The system provides independently adjustable voltage (0 to 30 kV) and current (0 to 1 mA). A colour touchscreen interface allows for straightforward configuration and clear visibility of operating parameters.
Thanks to its compact design, flexible control, and high‑performance output, the IonCharge30 is a versatile and highly effective static generator suitable for a broad range of materials and production processes
DownloadFeatures & Benefits
Providing range for voltage (0-30kV) and current (0-1.0mA). Therefore, performance can be optimised for a variety of applications and maximum pinning effect can be achieved without risk of overload.
24V DC power is often the preferred power supply for use with industrial equipment for several reasons including safety, reliability, ease of installation.
Increased control across a range of applications and material types.
Built in perforation and hole detection functionality for use in applications such as the manufacture of plastic bags.
IonCharge30 supports multi-language displays in English, Mandarin, French, German, Italian and Spanish.
Clear and intuitive information display and simple input of settings.
Reduces the risk of damage to equipment and/or materials being processed.
Versatile connectivity for integration with existing PLC compatible industrial networks for monitoring and control.
Unit can be switched on and off in association with machine operation for process integration.
Provides flexibility in positioning.
Multiple generator bars can be connected. NOTE: HV output socket requires accessories with a short plug connector.
Technical Characteristics
180mm x 146mm x 59mm (with mounting brackets);
180mm x 123mm x 58mm (without mounting brackets)
AIC30-25DC-N-00; DC, Negative; -30kVDC (-1 to -30kVDC),
AIC30-25DC-P-00; DC, Positive; 30kVDC (1 to 30kVDC)
Green/yellow/red LED
FR ABS
IP20 construction
55°C
24VDC (22 to 28VDC)
3A maximum
3x 4-Pole M8 & earth terminal
0.8kg
1mA (0.01 to 1mA)
2x HT connection ports
1x 4-20mA voltage control input, 1x 4-20mA current control input, 2x HT ON inputs, 1x HT OK output
2x 3.4mm holes, 4x 3.4mm x 10mm slots
25ms minimum output pulse duration
20 Hz
CE, UL
Applications
- 1 sided film pinning to aluminum sheet
- 2 sided film pinning to aluminum sheet
- Bag on a roll
- Cold roller pinning
- Compensation stacking
- Core pinning
- Gusset pinning for carrier bags
- Hole detection
- Label insert pinning
- Noodle packing
- Peanut chocolate sorting
- Plant impurity removal
- Seam welded bags
- Shrinkwrap noodles
- Static charging powder glue applicator
- Turret rewind core pinning
- Twin rewind core pinning
- Web Pinning
- Wine bag with metallised film
