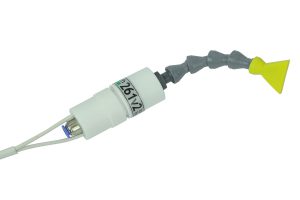

261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

The 261v2 -1/4 Flexi Nozzle is designed for use with Meech Pulsed DC Controllers and is suitable for installation into machinery and equipment in both industrial and electronics environments. It is particularly suited to high speed applications such as sheet delivery systems.

The addition of flexible knuckle trunking enables the system to deliver ionised air with accuracy into “difficult to reach” places, where conventional systems would be ineffective or impossible to install.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.

  Download
Features & Benefits
Flexible knuckle trunking extension

Delivers ionisation precisely where it is needed. Effective in “difficult to reach” places

Adjustable balance and frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range

Rapid decay times

Very effective in high speed applications

Removable emitter pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life.

Low air consumption

Economical use of compressed air

“Stay put” knuckle trunking

Enables simple and quick installation

Small and compact

Easy to locate and install in confined spaces

Technical Characteristics
Air Fitting

1/4″ BSP inlet

Max Air Pressure Rating

100 Psi (7 bar)

Typical Pressure

20 to 40Psi (1.5 to 3 bar)

Emitter Pins

Machined titanium (7mm)

Decay Time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)

Ozone

Less than 0.01 ppm

Input Voltage

+/- 9kV DC Nominal

Ion Balance

+/- 10V or better at set up

Noise Level (261v2 -32)

68 dBa (20 Psi at 1m) (1.5 bar)

Images
Documentation

Meech Static Control Brochure - English

Download

A261v2_32_FLEX_1_4

Download
