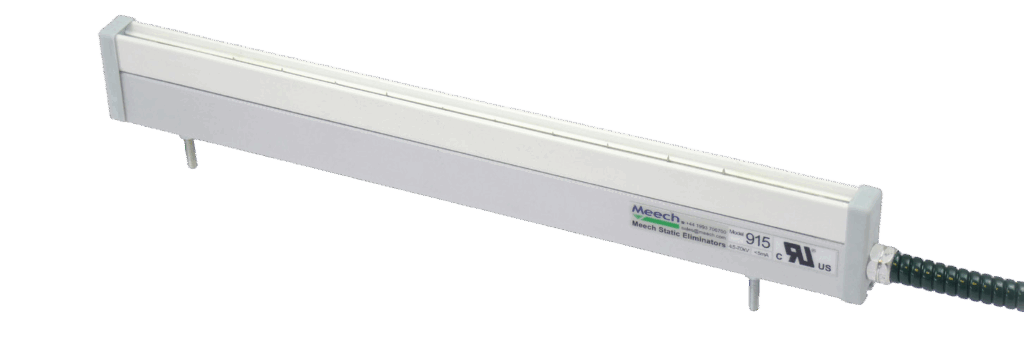

915 Anti-Static Bar

Product Code: 915

Fast and powerful static control for high speed applications.

The Meech Model 915 AC Anti-Static Bar has been designed to meet the most arduous of static elimination problems, including those encountered in high speed web applications.

The powerful performance of the Model 915 provides very fast decay times and effective ionisation up to distances of 150mm. The Model 915 bar is shockless and is easily maintained. It is powered by the Model 904.

Download
Features & Benefits
Powerful, intense ion production

Very fast decay times and effective at faster
web speeds

Extended range performance

Flexibility in positioning

Slim profile

Can be installed in restricted spaces

Resistively coupled emitter pins

Shockless, thereby enhancing operator
safety

Sharp titanium emitter pins

Reduced pin contamination & longer
effective life

Easy wipe casing

Easy maintenance, sustained performance
and reduced machine downtimes

“T” channel mounting system

Simple & quick installation

CUL and CE approved

Full conformance to international standards (UL, CSA & CE)

Technical Characteristics
Dimensions

18mm x 42mm x length (up to 4000mm)

Weight

Approx 1,100gms per 1000mm length

Operating voltage

4.5-7.0kV

Cable

2 metres shielded in flexible conduit; longer
lengths can ordered

Construction

Anodised aluminium and fire retardant PVC
extrusion

Emitters

Titanium

Mounting

Two M4 x 20mm studs into “T” slots

Operating current

Less than 5 mA

Maximum operating temperature

60°C

Typical Operating Range

30 – 150mm

Certifications

CE, UL.

Images
Related Products
Documentation

Meech Static Control Brochure - English

Download

915 Operating Manual

Download

915_Assembly

Download
