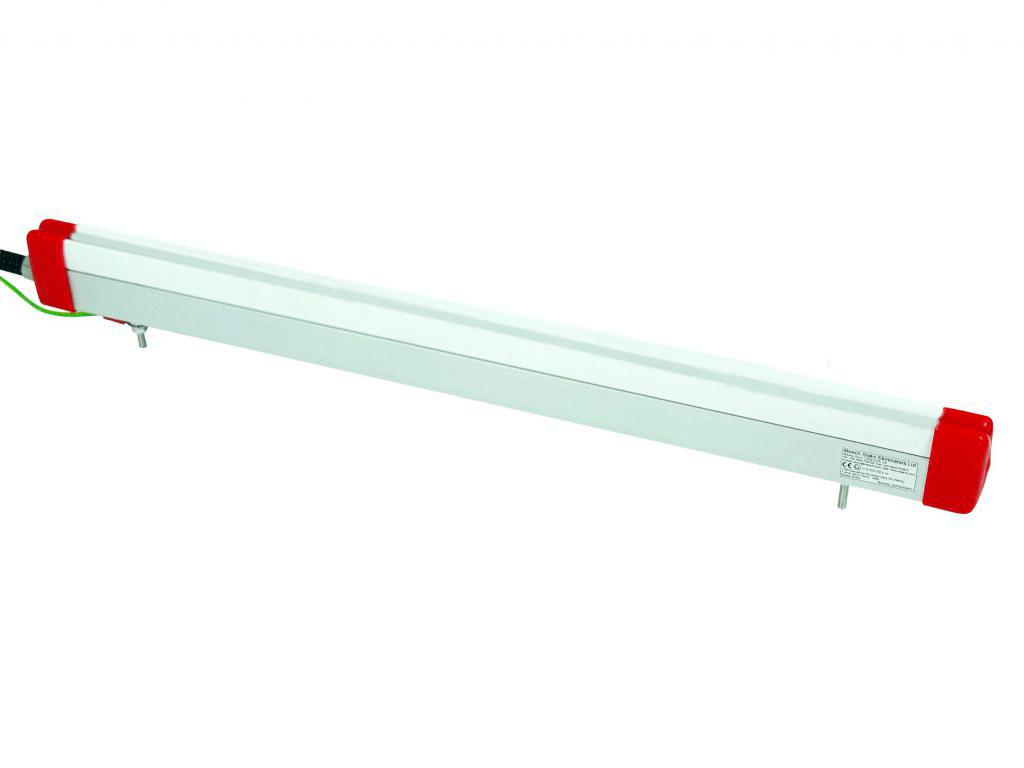

915EX Hazardous Area AC Bar

Product Code: 915EX

The Meech Model 915Ex has been designed to extend the exceptional performance and other benefits of the 915 AC system to classified hazardous environments. It is particularly suited to coating, laminating, finishing and gravure printing applications.

The 915Ex is certified by Baseefa: Certficate No Baseefa04ATEX0347X/6 II 2 GD EEx m lIB T6 -20°C ≤ Tamb ≤ 35°C (IP65). The Meech 915Ex Hazardous Area AC Bar is certified for use with both Group IIA and Group IIB gases.

  Download
Features & Benefits
Powerful, intense ion production

Very fast decay times and effective at faster web speeds

Effective at distances up to 150mm

Flexibility in positioning

Slim profile

Can be installed in restricted places

Resistively coupled emitter pins

Shockless, thereby enhancing operator safety

Sharp titanium emitter pins

Reduced pin contamination & longer effective life

Easy wipe casing

Easy maintenance, sustained performance and reduced machine downtimes

“T” channel mounting system

Simple & quick installation

Technical Characteristics
Dimensions

18mm x 42mm x length (up to 4000mm)

Weight

Approx 1.1 kgs per 1000mm length

Operating voltage

4.5-7.0 kV

Cable

5 metres shielded in flexible conduit; longer
lengths can be ordered

Construction

Anodised aluminium and fire retardant PVC
extrusion

Emitters

Titanium

Mounting

M4 x 20mm studs into “T” slots

Operating current

Less than 5 mA

Baseefa ATEX Certified

Cert No. Baseefa04ATEX0347X/6EX II 2 GD EEx m IIB T6 -20°C ≤ Tamb ≤ 35°C

Certifcations

CE

Applications
Images
Documentation

915Ex Cert ATEX

Download

Meech Static Control Brochure - English

Download

915Ex Operating Manual

Download

915_Ex_Assembly

Download

915EX Certification Report

Download
Related Products
Must Haves

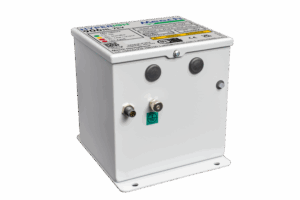

904 Power Supply
