945IPS Mid-Range Ionising Bar

Product Code: A945IPS-XXXX

The 945IPS Ionising Bar introduces new technology, whilst retaining all the key features and benefits of our Hyperion™ range. In particular, it maintains powerful 15kV output, ion current monitoring (ICM) technology and fault/cleaning alarms. Additionally, it integrates with our SmartControl Touch™ and BarMaster Programmer for adjustability and remote monitoring.

As a result of our continuous improvement program, the 945IPS Ionising Bar includes several enhancements that further improve its performance. For example, using pure Titanium emitter pins with a new rounded pin shape, specifically to deliver the highest level of performance and resist corrosion. Additionally, using a raised bar profile height optimises the ionisation performance of the powerful 15kV output. Furthermore, we have improved mounting of the bar, using a wide T-slot and a new design T-slide to enhance mounting reliability.

We have carefully engineered these features into the 945IPS Ionising Bar and as a result, created a market leading performance ionising bar. The 945IPS, therefore, can be used across many industries and applications.

  Download
Features & Benefits
Operating Distance

150-600mm.
Tri-Colour LED

LED indication of operational status of bar, fault/needs cleaning or standby.
Slimlined End Cap Design

Slimline end caps eliminate dead space, providing full-length active ionisation.
Dual Alarm Lines

Dual alarm lines to tell PLCs, buzzers and remote lamps whether the ionising equipment needs routine maintenance or if there is a more serious system failure.
Shockless Pure Titanium Emitters

One of the best materials with extremely low wear rates. Resistively coupled for shockless operation.
T-Slide & T-Slot Design

Larger T-Slot design and longer M4 T-slide ensures secure mounting.​
Adjustable Settings

Adjustable voltage, frequency & balance output via BarMaster Programmer or SmartControl Touch™ , giving the operator the ability to optimise performance for difficult applications.
Technical Characteristics
Construction

FR ABS.
Output Voltage

Default 12.5kV, adjustable (2 to 15kV) via BarMaster  or SmartControl.
Weight

0.9kg/metre.
Output Balance

Default 52:48 Pos:Neg, adjustable (80:20 to 20:80) via BarMaster  or SmartControl.

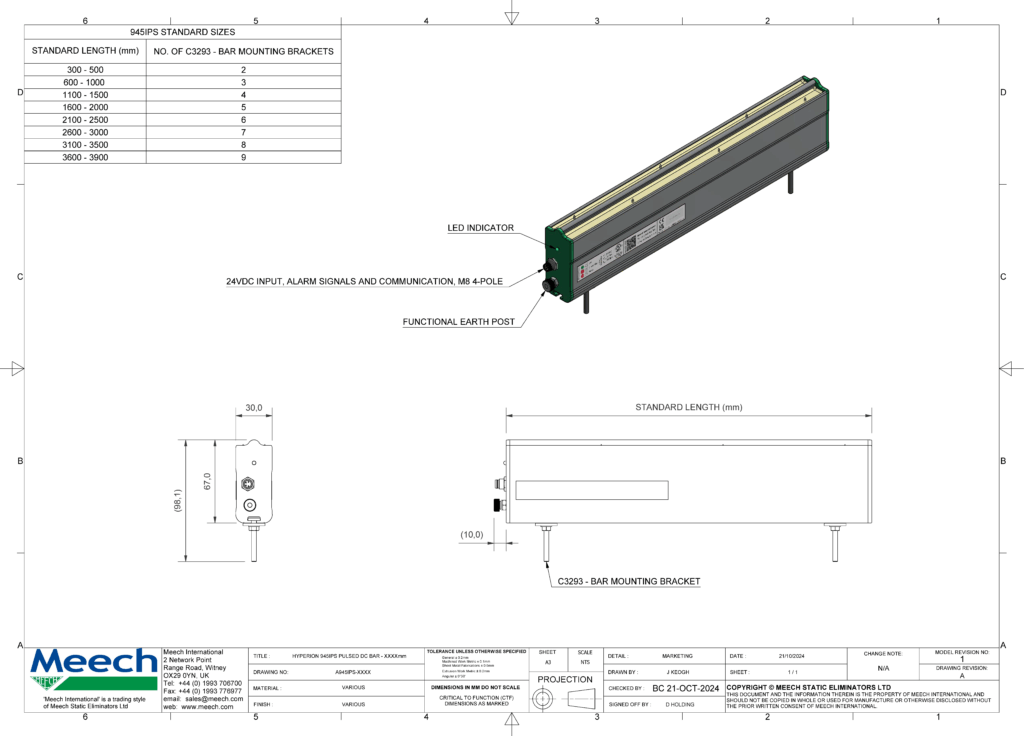

Dimensions (W x H)

30mm x 67mm.
Output Frequency

Default setting: 5Hz, Adjustable (1 to 20Hz) via BarMaster  or SmartControl.
Electrical Input

24V DC (22 to 26VDC), maximum input current 625mA. 4-pin M8 & earth terminal connection.
Environmental

IP66 construction.
Alarm

Two signals available: ‘Alert’ and ‘Fault/Standby'(fault/standby adjustable via BarMaster Programmer). Both outputs are IEC 61131-2 type 1, 2 & 3 PLC inputs compatible. Tri-colour LED for local status indication.
Certification

CE & UL.
Images

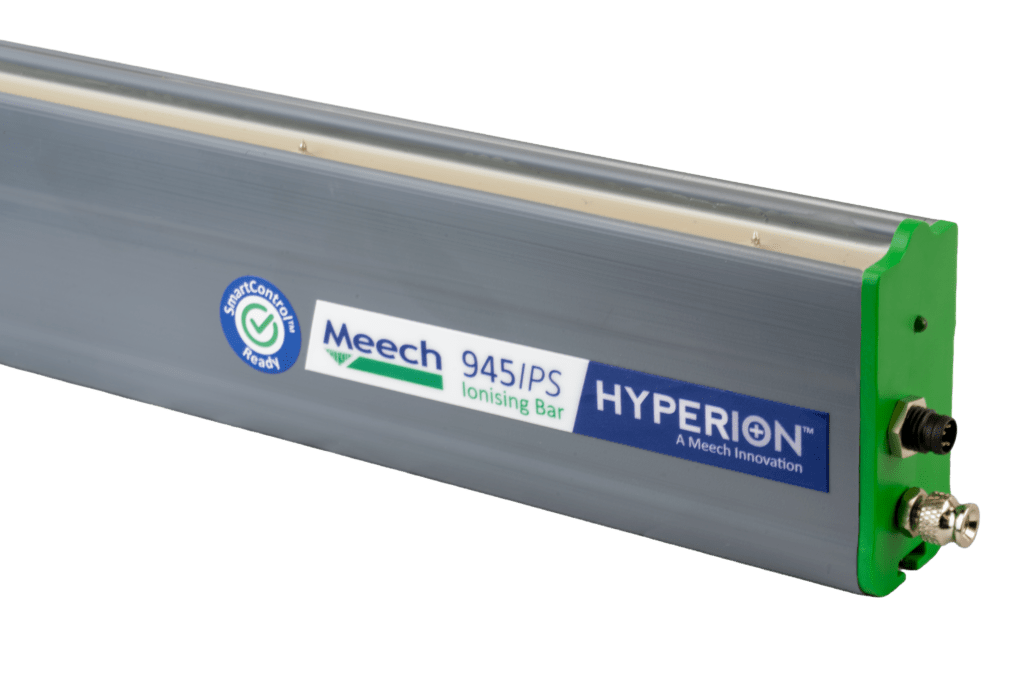

945IPS Ionising Bar

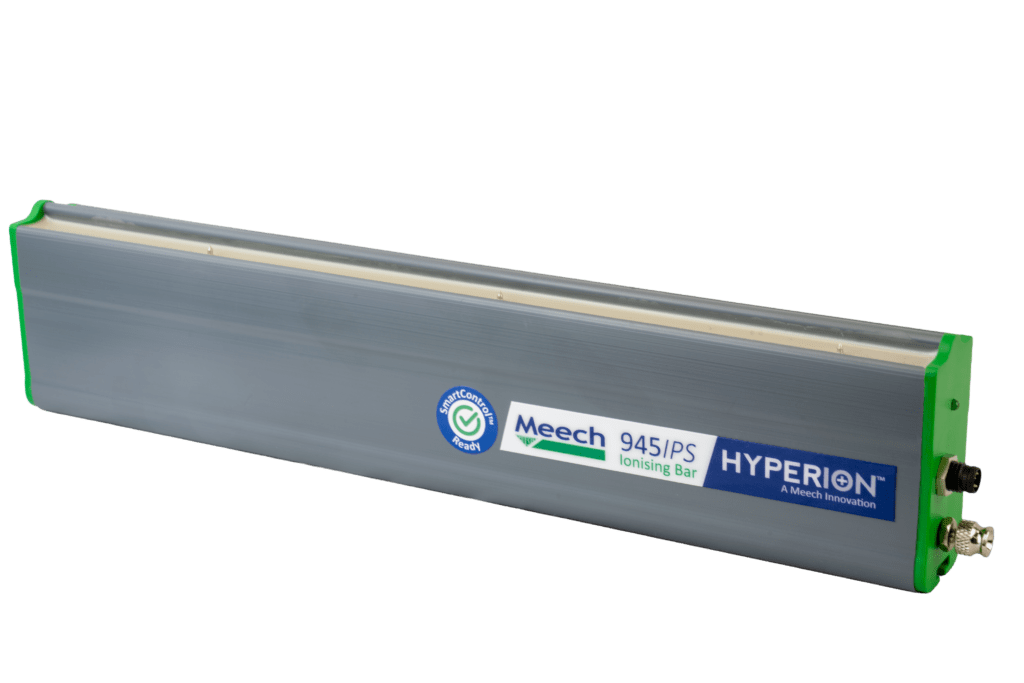

945IPS Ionising Bar
