PulseDrive Plus PDC Controller
Product Code: APD15-PLUS-00
The Hyperion™ PulseDrive Plus is a static elimination controller that uses advanced pulsed DC technology to control Meech ionisers.

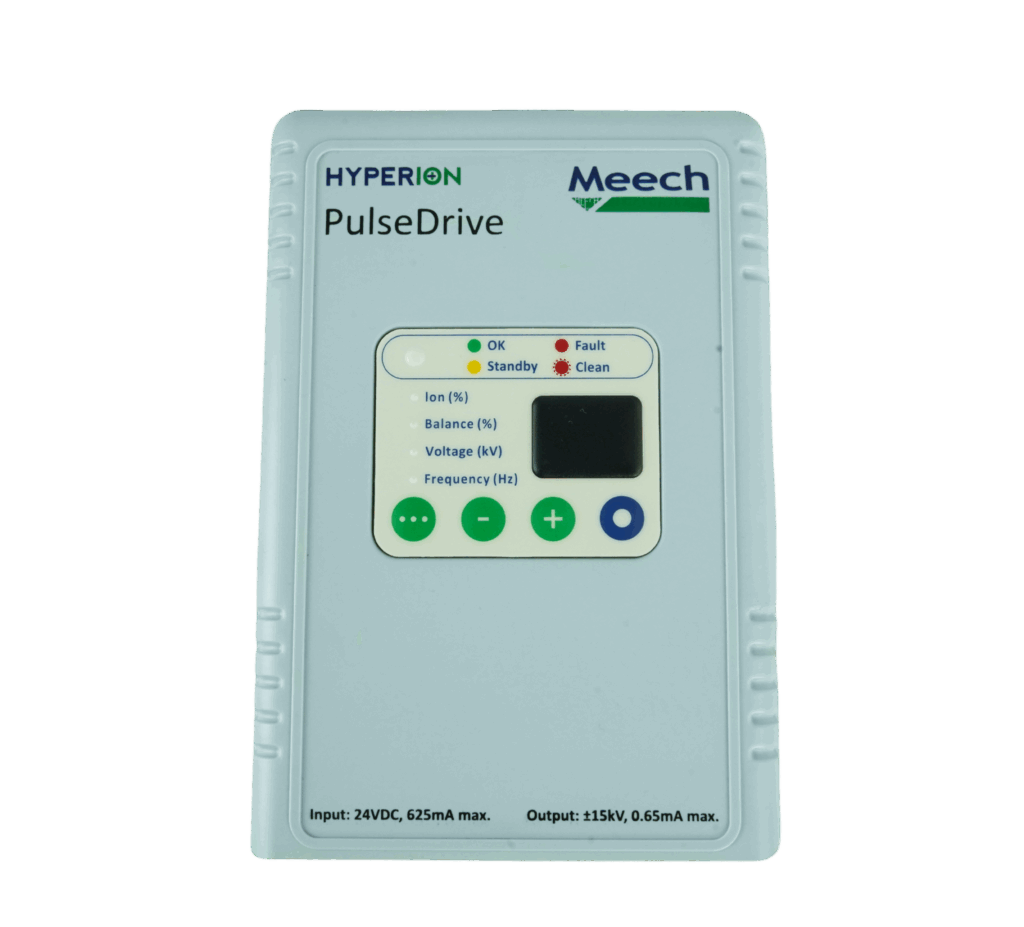

Firstly, a front-panel keypad provides local adjustment of parameters, allowing performance optimisation for output voltage up to 15kV, frequency for range, and balance for speed and accuracy. With adaptable parameters, PulseDrive ensures that any Meech DC ioniser can be setup and optimised to suit any requirement.
In addition, the PulseDrive Plus has many key features including LEDs to indicate operation status and ion current monitoring technology for greater control of the ionisation performance.
Furthermore, PulseDrive is compatible with our remote programmers, Hyperion™ BarMaster and Hyperion™ SmartControl Touch, enabling smarter and more effective static management.

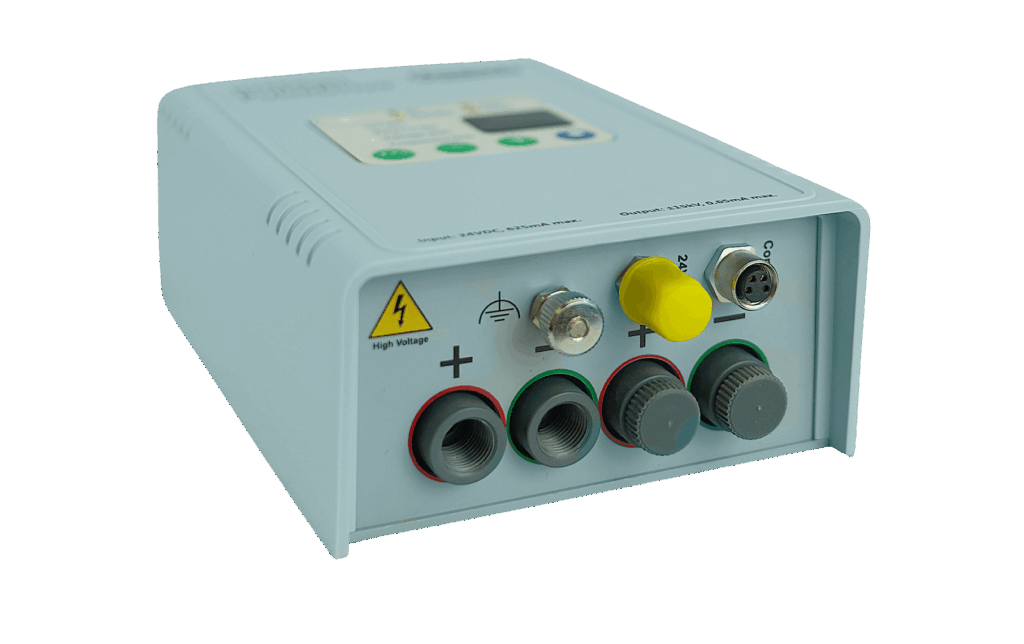

Two pairs of HV outputs allow two ionisers to be connected, however with Meech HV Splitters, multiple ionisers can be connected.
Finally, the PulseDrive Plus is also available in two other versions for use in hazardous locations, PulseDrive Plus HL 5.5kV and PulseDrive Plus HL 9.0kV. These are ideal for use with our 924EX and 976EX Static Eliminator bars.
DownloadFeatures & Benefits
For direct connection of two ionisers or multiply ionisers with Meech HV Splitters.
For performance optimisation.
Indicate operational status.
Hyperion™ SmartControl Touch and BarMaster Remote Programmer for optimal control.
Technical Characteristics
FR-ABS Housing.
55°C max. IP65 construction.
With mounting brackets: 141 x 118 x 55mm (L x W x H). Without mounting brackets: 141 x 97 x 51mm (L x W x H). Clearance of 150mm may be required for electrical connections.
4–Pin Male M8 Connector.
Adjustable ±2-15kV (default = 9.0kV) via the integrated keypad or via a connected BarMaster or SmartControl Touch.
Dual HV outputs.
Adjustable from 1-20Hz (default 20Hz) via the integrated keypad or via a connected BarMaster or SmartControl Touch.
15W Maximum.
Maximum 0.65mA.
600g
A balanced output can be adjusted from 80:20 to 20:80 in each polarity via the integrated keypad or via a connected BarMaster Remote Programmer or SmartControl Touch for even better performance.
UL.
On/Off via the 4-pin Female M8 connector. Hi/Lo signals IEC 61131-2 compatible.
Hyperion™ SmartControl Touch and BarMaster Remote Programmer for optimal control.
24 V DC.
Images
Related Products

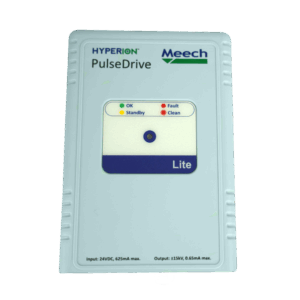

PulseDrive Lite PDC Controller
Product Code: APD15-LITE-00
The Hyperion PulseDrive Lite is an OEM-friendly controller with local status indication and a single pair of positive and negative HV outputs.
A single ioniser can be connected directly, or multiple ionisers connected using Meech HV splitters.
Also, being a Hyperion product, there is the ability to adjust output parameters via the use of a BarMaster or SmartControl Touch. SmartControl Touch compatibility also provides enhanced, integrated monitoring and control.

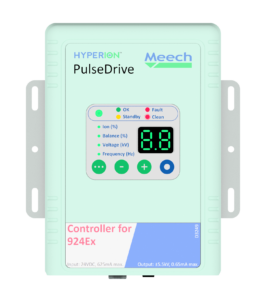

Hyperion PulseDrive Plus HL 5.5kV
