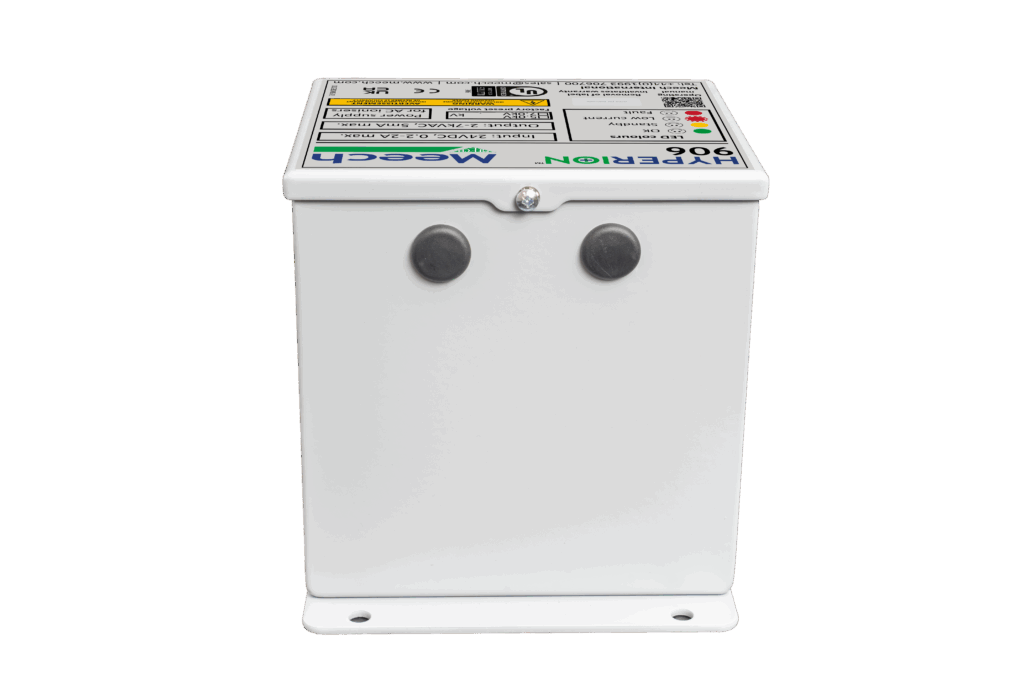

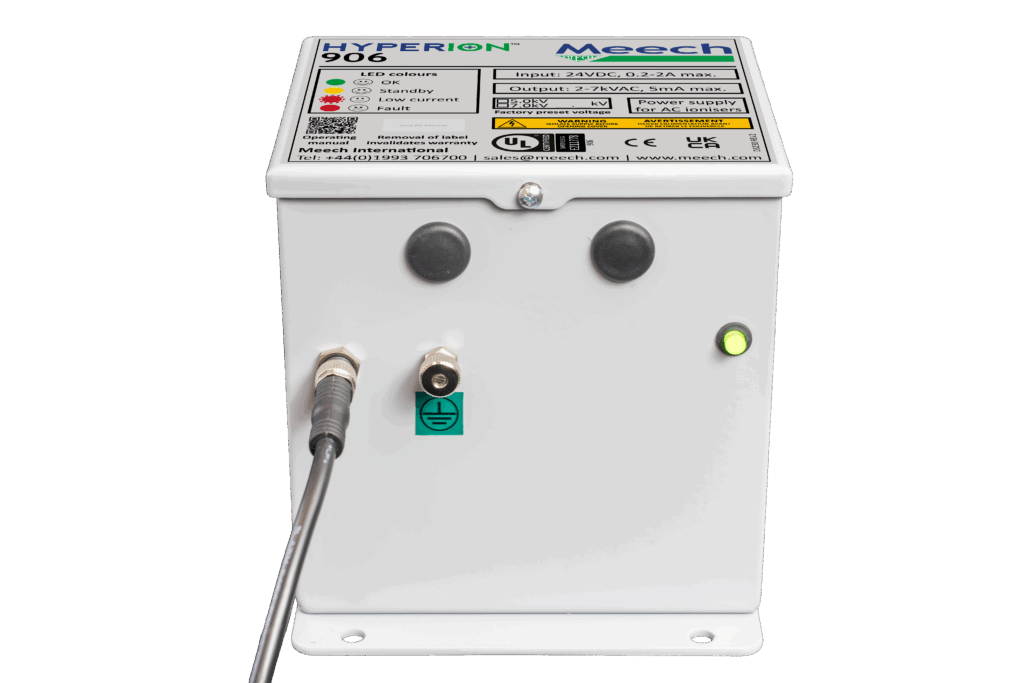

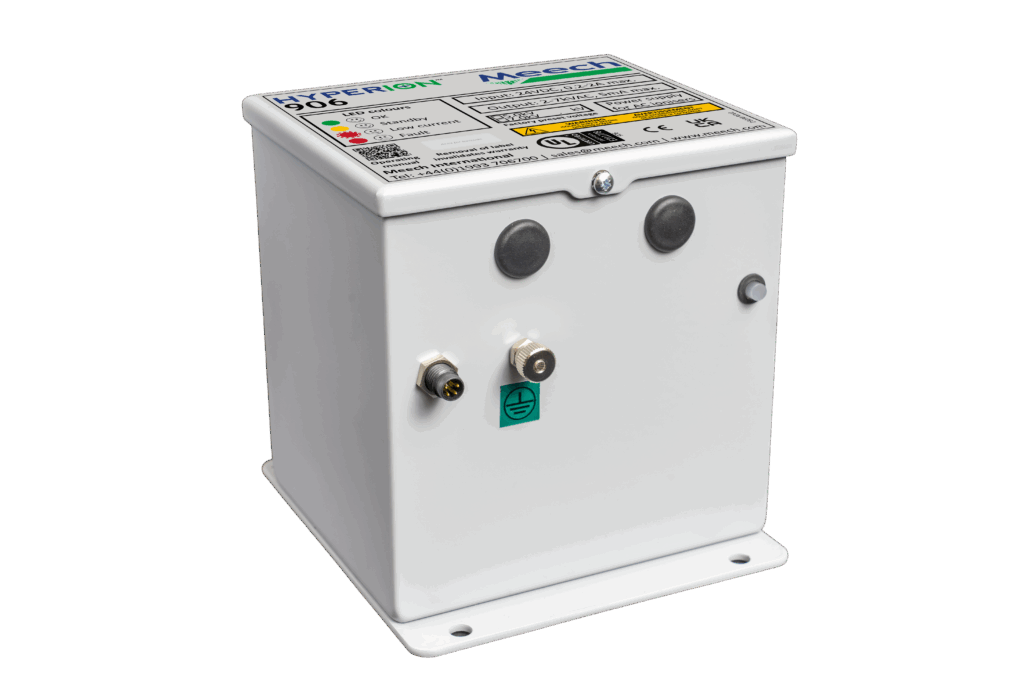

Hyperion 906 Power Unit
Product Code: A906
The Hyperion 906 Power Unit is the latest addition to Meech’s Hyperion range (superseding the 904/905), which provides the voltage required to produce ionisation for our range of AC static eliminator bars.
Traditionally, power units have an AC supply which can be susceptible to voltage fluctuations, sags, and surges. Utilising a 24VDC supply is a significant step forward in this respect, offering improved stability, reliability, and compatibility with modern control systems.
The 906 Power Unit has an adjustable (via BarMaster or SmartControl Touch) output voltage of 2-7kVAC and can power up to four bars simultaneously, making it suitable on a wide range of industrial processes and static eliminator applications.
For fast and easy connectivity, the 906 requires a 24VDC input from either a 48W switch mode or 4 pin M8 power cable (if powering directly from 24V feed).
The 906 also offers several key features detailed in the features section below. These include a unique design to allow automated manufacture for increased reliability and extended product life. To ensure a high level of operator safety, the 906 features a short circuit current of <5mA.
We also offer the 906 Power Unit in two other versions for use with products intended for hazardous locations; 906HL 5kV and 906HL 7kV. These are specifically designed for use with our 914EX and 915EX Static Eliminator bars respectively.
DownloadFeatures & Benefits
Power Supply for up to four AC bars simultaneously.
Adjustable output voltage (2-7kV AC) via attached BarMaster or SmartControl Touch, to suit your specific needs.
Remote dual alarm signal indicates when the current is low or a fault has been detected.
Tri-Colour LED status indicator for current monitoring and fault alert.
Compatible with Meech remote programmers: BarMaster & SmartControl Touch.
24VDC input voltage, favoured on modern machinery and big benefit for OEM’s.
Ion Current Monitoring providing continuous monitoring of the ionising bar’s performance.
Technical Characteristics

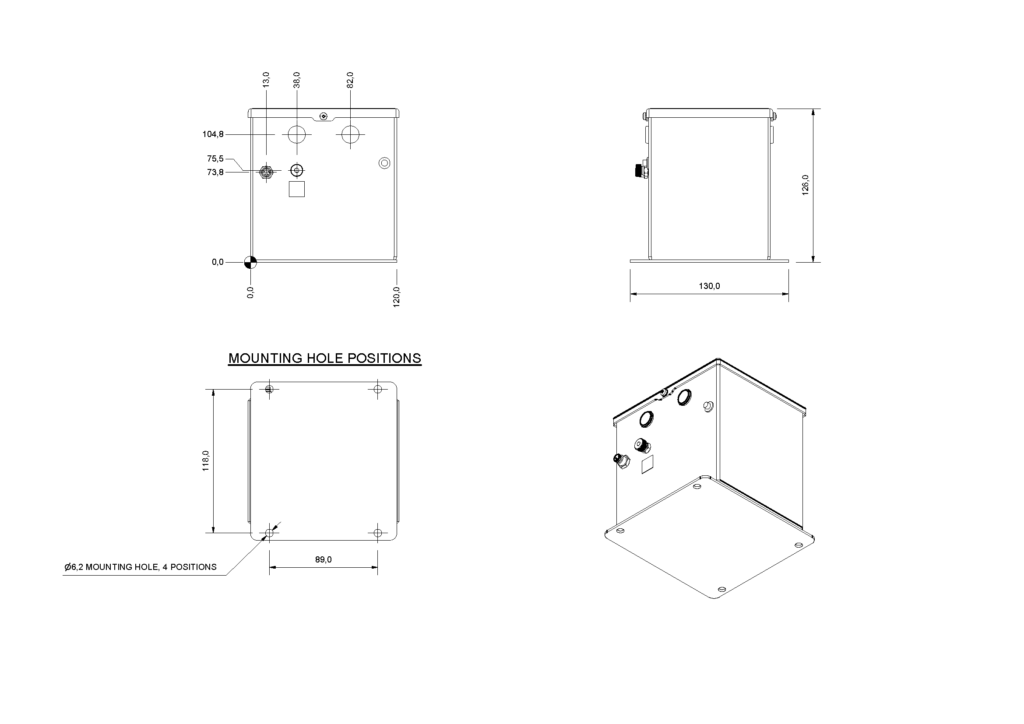

120mm x 130mm x 126mm
Approx 3.85kg
55oC
4x 6mm holes
To comply with UL 62368-1, the 906 must be mounted at a height ≤2m
Powder coated steel
4-pin M8, earth terminal & M4 HV output post
Maximum 2A
24VDC (22 to 26VDC)
4x HV connection ports
Maximum 5mA
- A906-5kV: 2 to 7kVAC (Preset to 5kV)
- A906-7kV: 2 to 7kVAC (Preset to 7kV)
70Hz
Dual outputs for Alert/Fault monitoring (0/24V):
- 1x Alert output
- 1x Fault output/standby input
Compatible with IEC 61131-2 type 1,2,3 plc inputs
Green/yellow/red LED
IP40 construction
CE, UL
Images
Related Products
914EX Hazardous Area Anti-Static Bar
Product Code: A914EX-XXXX
The Meech model 914EX has been designed to extend benefits of the 914 system to classified hazardous environments.

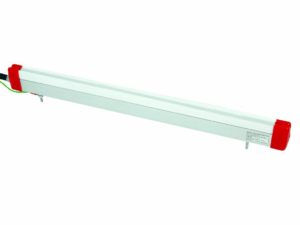

915EX Hazardous Area AC Bar
