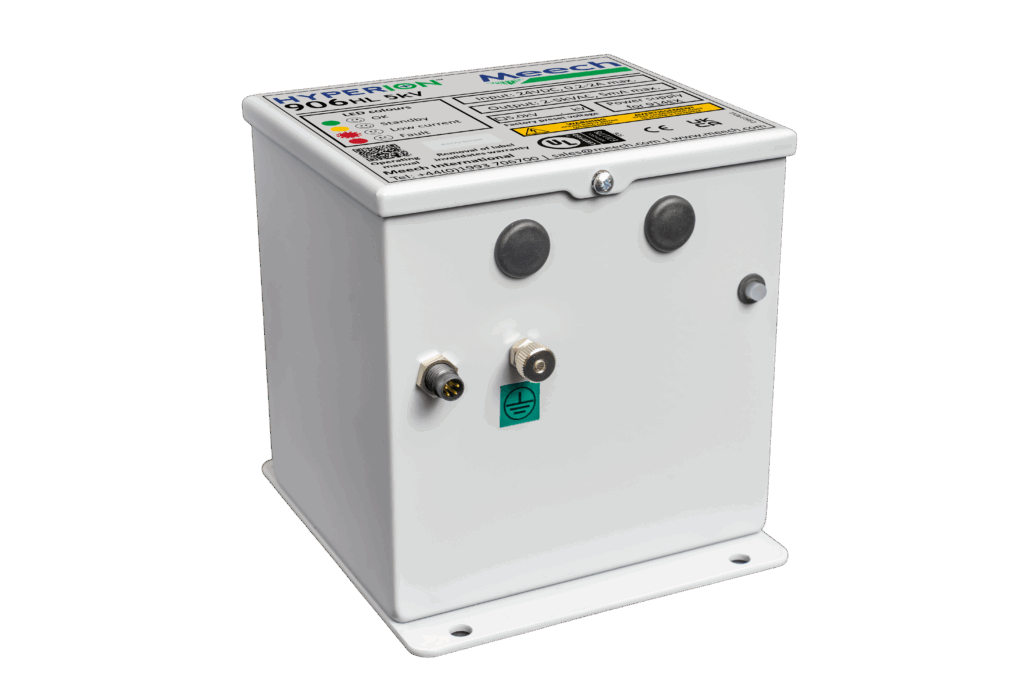

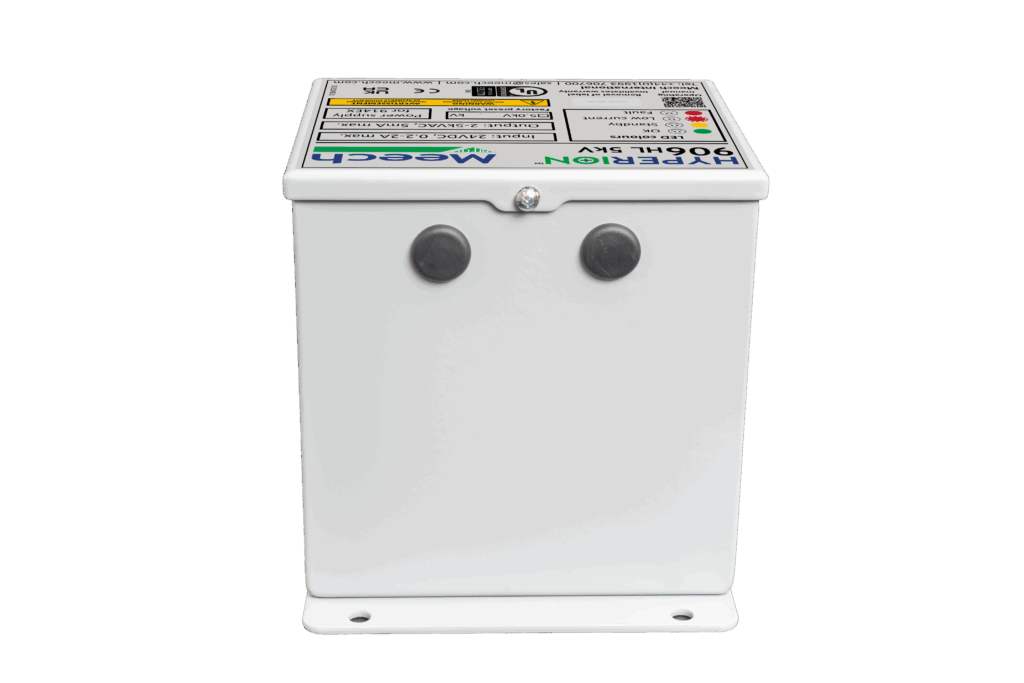

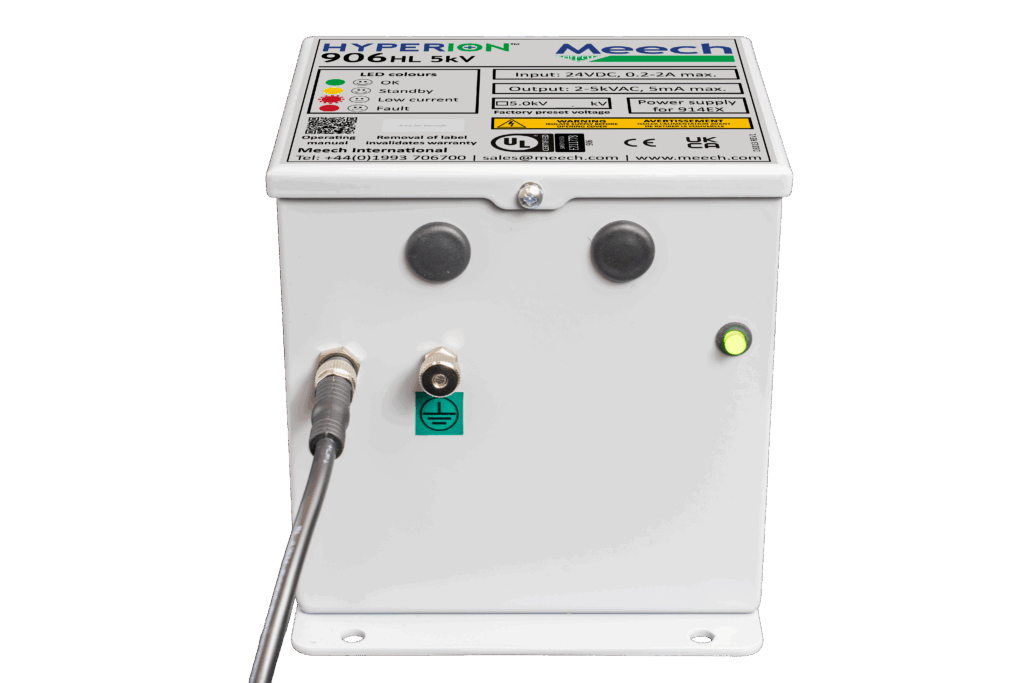

Hyperion 906HL 5kV Power Unit
Product Code: A906HL-5kV
The Hyperion 906 Power Unit is the latest addition to Meech’s Hyperion range (superseding the 904/905), which provide the voltage required to produce ionisation for our range of AC static eliminator bars.
The 906HL 5kV Power Unit has a fixed output voltage 5kVAC to power up to four bars simultaneously, making it suitable on a wide range of industrial processes and static eliminator applications.
For fast and easy connectivity, the 906 range requires a 24VDC input from either a 48W switch mode or 4 pin M8 power cable (if powering directly from 24V feed).
The 906 also offers several key features detailed in the features section below. These include a unique design to allow automated manufacture for increased reliability and extended product life. To ensure a high level of operator safety, the 906 features a short circuit current of <5mA.
We also offer the 906HL in a 7kV version, specifically designed for use with our 915EX static eliminator bars.
Traditionally, power units have an AC supply which can be susceptible to voltage fluctuations, sags, and surges. Utilising a 24VDC supply is a significant step forward in this respect, offering improved stability, reliability, and compatibility with modern control systems
DownloadFeatures & Benefits
Power Supply for up to four AC bars simultaneously.
Remote dual alarm signal indicates when the current is low or a fault has been detected.
Tri-Colour LED status indicator for current monitoring and fault alert.
Compatible with Meech remote programmers: BarMaster & SmartControl Touch.
24VDC input voltage, favoured on modern machinery and big benefit for OEM’s.
Ion Current Monitoring providing continuous monitoring of the ionising bar’s performance.
Technical Characteristics
120mm x 130mm x 126mm
Approx 3.85kg
55oC
4x 6mm holes
To comply with UL 62368-1, the 906 must be mounted at a height ≤2m
Powder coated steel
4-pin M8, earth terminal & M4 HV output post
Maximum 2A
24VDC (22 to 26VDC)
4x HV connection ports
Maximum 5mA
5kVAC
70Hz
Dual outputs for Alert/Fault monitoring (0/24V):
- 1x Alert output
- 1x Fault output/standby input
Compatible with IEC 61131-2 type 1,2,3 plc inputs
Green/yellow/red LED
IP40 construction
CE, UL
