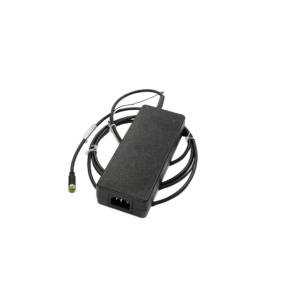

Switchmode Power Adaptor 48W

Product Code: A200-SM2MS-48W

A general 24V DC 48W Power Adaptor for use with products including IonCharge30 and 936IPS Blowers (<1200mm).

Switchmode Power Adaptors take the local electrical supply and convert it to a stable and filtered 24V DC output. The adaptors are very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

  Download
Technical Characteristics
Input Range

90-264V AC

Frequency

47 – 63 Hz

Input Current RMS

0.75A Max

Maximum Power

60W

Output Voltage

24V DC

Output Current Max

Max 2.5A

Protection

Over voltage and over current protection

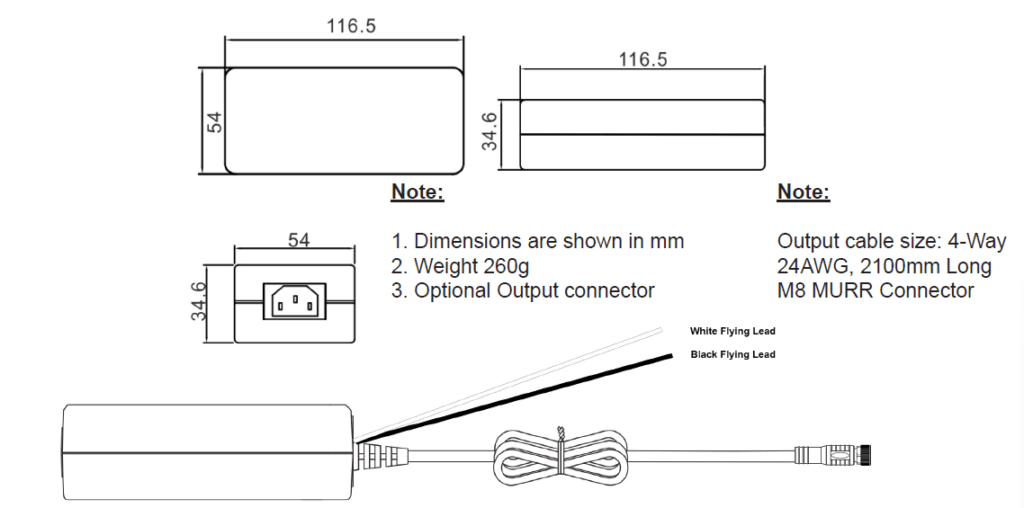

Dimensions LxWxD

118mm x 47mm x 30mm excluding cables

Input Connector & Cable Length

AC input IEC 320-C14 inlet. Cable length 2000mm

Output Connector & Cable Length

4 pole M8 Murr Connector. Cable length 2000mm

Operating Temperature

-25 – 70ºC

Certification

Certification CE. UL.

Images
