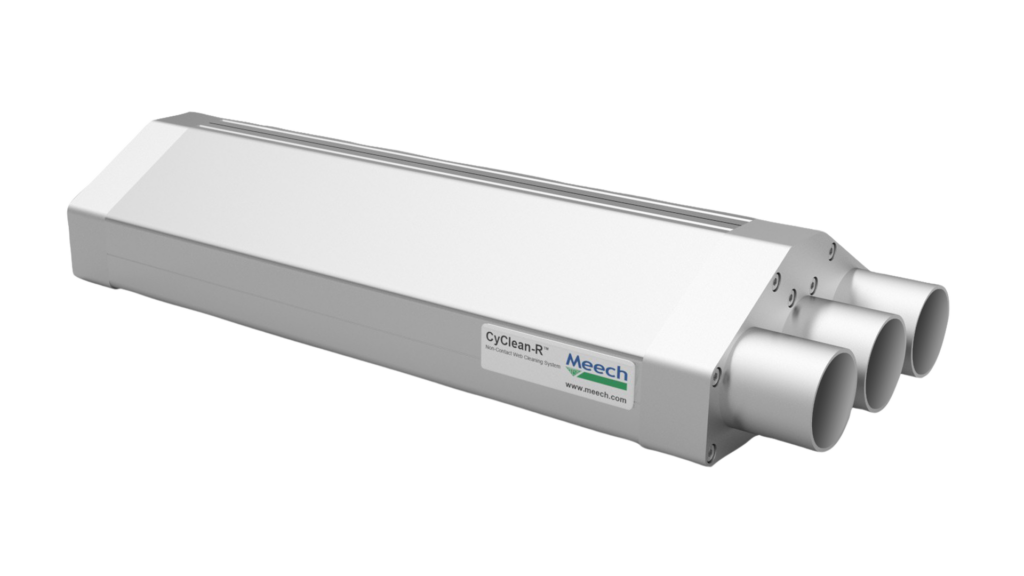

CyClean™-R Web Cleaning System
Product Code: ACR-XXXX-XXXX-01
The CyClean™-R Non-Contact Web Cleaning System delivers a compact solution that removes contamination from webs running over a roller, making it ideal for applications with low-tension, sensitive materials.
Firstly, CyClean‑R is designed to be positioned directly on the roller where web tension is highest, thereby overcoming low‑tension challenges. Using Hyperion™ 924IPS Short-Range Ionising Bars, CyClean-R neutralises static charges and disrupts the boundary layer that allows particles to cling to the web surface. Subsequently, it applies controlled micro-movements and turbulent airflow to loosen debris before extracting it into the integrated Air Handling Unit (AHU). Finally, the system filters and removes contaminants, achieving particle removal down to 0.5 micron.
Furthermore, CyClean™-R is available in a wide range of configurations to suit different applications. Options include a Narrow Web CyClean-R (200–699mm) with fixed, manual lift or manual tilt openings. A Mid Web CyClean-R is available in fixed configurations with top‑feed or end‑feed options. Additionally, for wide web applications (1300mm–4000mm), CyClean‑R offers fixed or pneumatic tilt opening designs with a carapace structure for enhanced rigidity. The system is supplied as a single‑sided cleaner, with a double‑sided configuration available if required.
As a result, the CyClean™‑R Non‑Contact Web Cleaning System provides the ideal solution for applications that require high‑performance, non‑contact cleaning. Its versatile design makes it suitable for a wide range of web widths, materials and production environments.
Features & Benefits
Delivers consistent cleaning across the web width by removing static and contamination.
Overcomes low tension issues. High-velocity airflow maximises particle removal.
Contact‑free cleaning prevents marking and maintains web tracking and tension.
Provides precise control over the balance between blowing and vacuum airflow.
Low ongoing costs.
Reduces the need for manual operator adjustments.
Installs easily on most machines and is capable of cleaning web widths up to 4000mm.
Narrow webs: fixed/lift/tilt openings; mid webs: top/end; wide webs: fixed/pneumatic tilt.
Low noise levels suitable for enclosed work areas without H&S concerns.
One sided or optional top and bottom web cleaning.
Technical Characteristics
Up to 4000mm.
4 x M8 x 16mm holes.
Narrow web: 3 × 40mm Ø OD; mid web: 6 × 40mm Ø OD; wide web: 3 × 100mm.
800mtrs/min, 2624ft/min.
Narrow/mid webs: end or top‑feed; wide webs: end‑feed only.
