CyClean™ Web Cleaning System
Product Code: ACC-XXXX-XXXX-01
The CyClean™ Non-Contact Web Cleaning System comprises a double-sided web cleaning head, integrated static control equipment and an Air Handling Unit (AHU) to clean both sides of a web simultaneously.
Firstly, CyClean neutralises static and breaks the boundary layer of air that holds contamination to the surface of the web. It achieves this by using high-frequency micro-movements and turbulent airflow to loosen contaminants. Subsequently, the system then extracts the debris from the cleaning head into the Air Handling Unit where the air is cleaned and recirculated, resulting in contamination removal to below 1 micron.

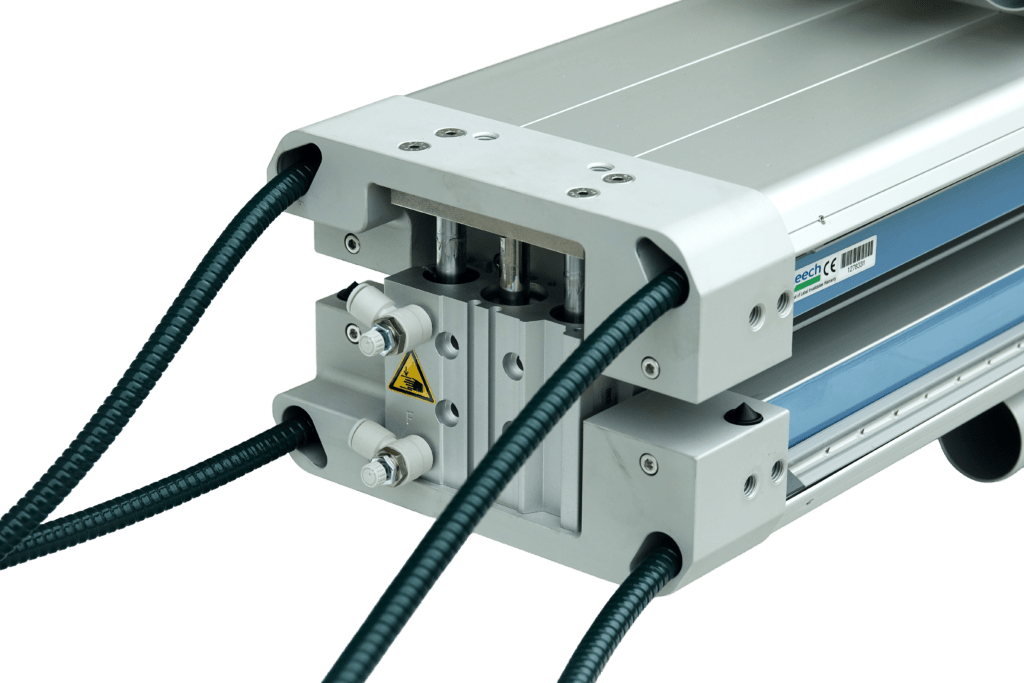

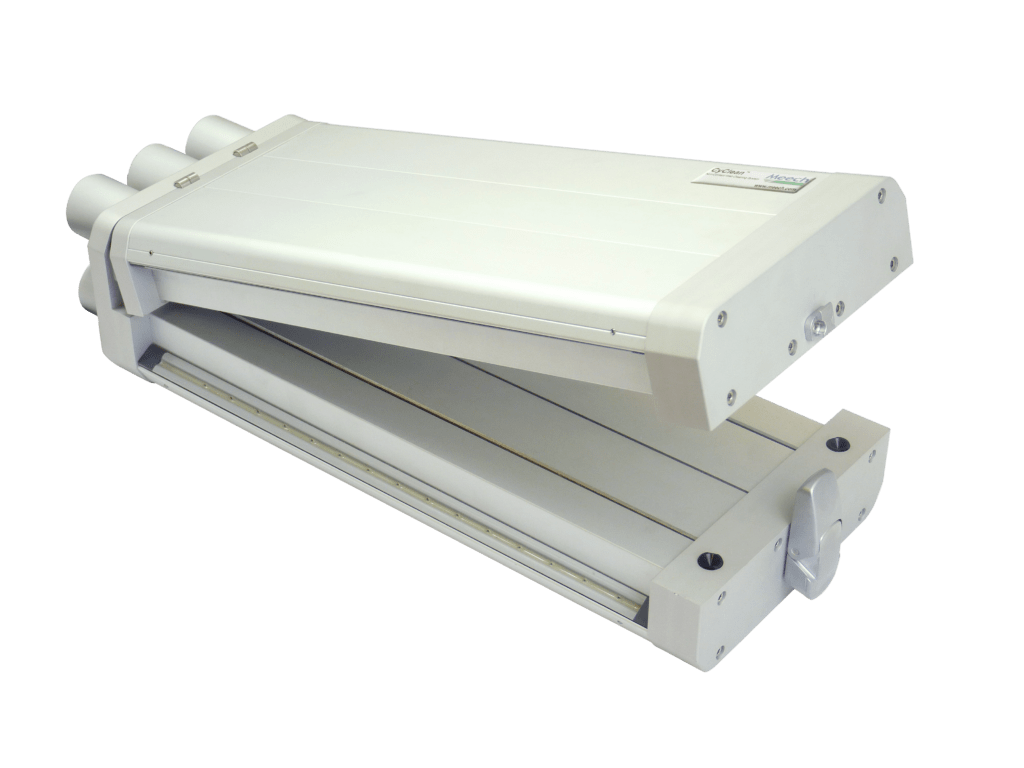

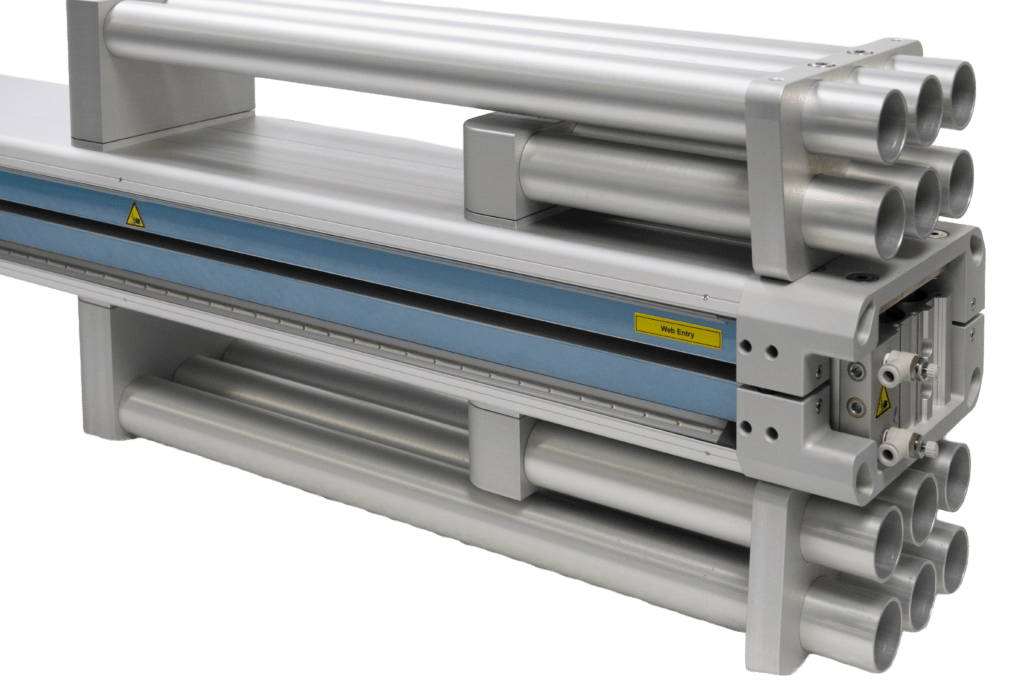

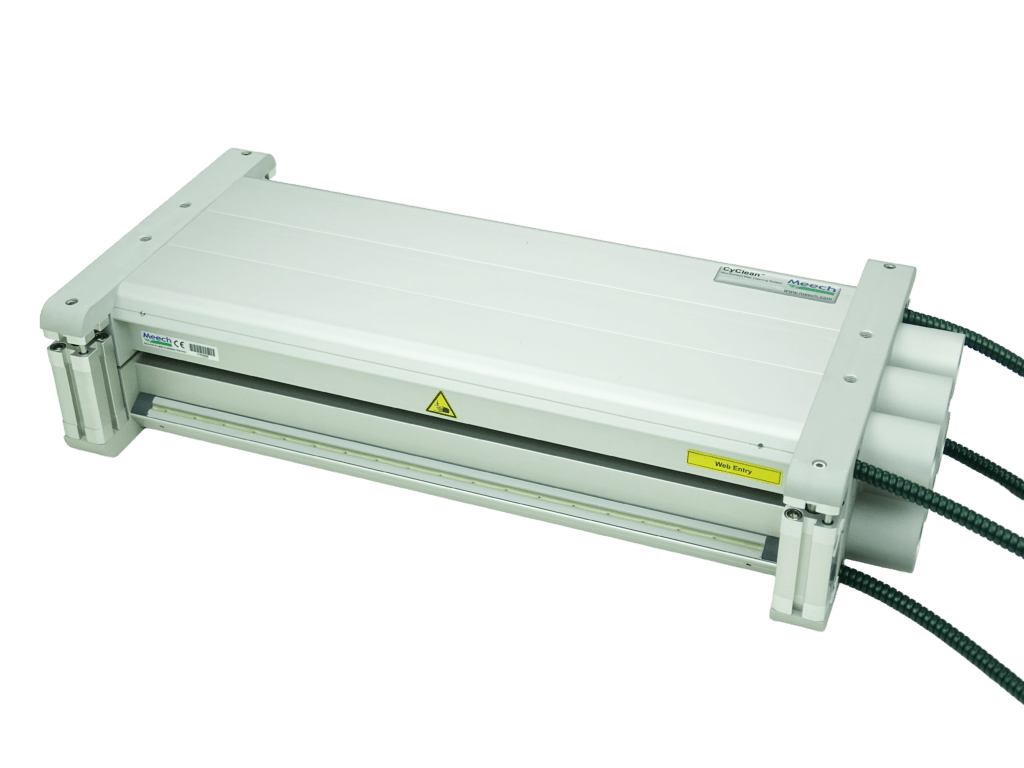

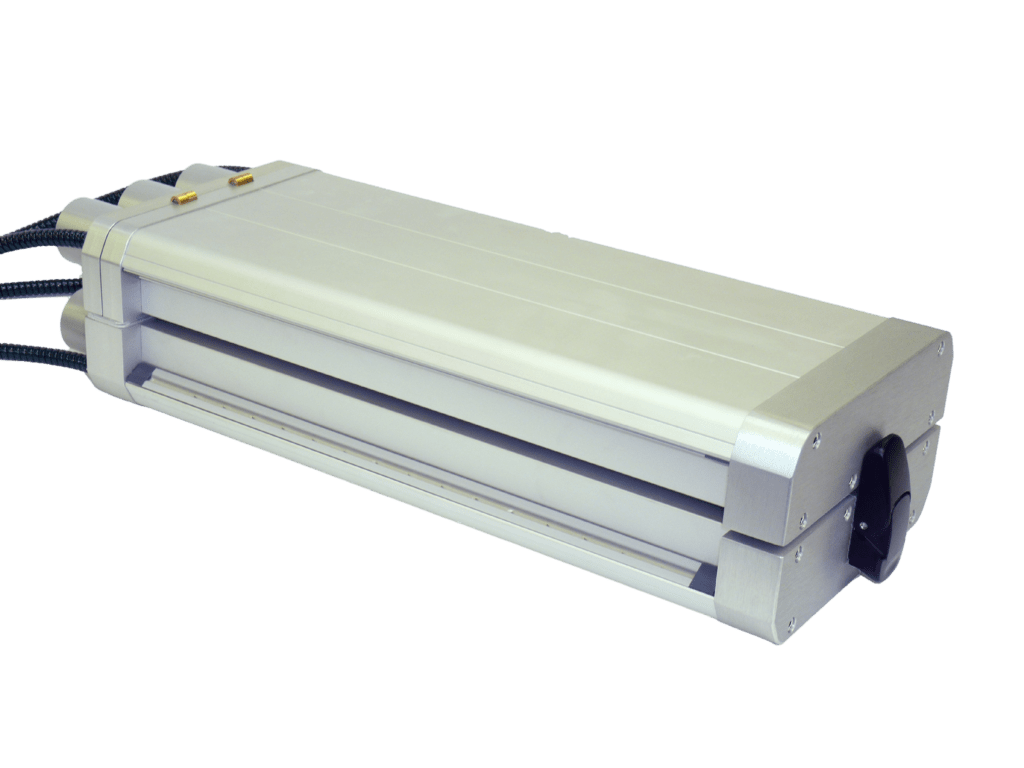

The versatile design of the CyClean™ Non-Contact Web Cleaning System supports a wide range of variations for different applications. Options include a Narrow Web CyClean which offers either a manual opening with a unique fixed‑port design or a pneumatic opening in either end‑feed or top‑feed configurations. Additionally, a Mid Web CyClean with pneumatic opening and top and bottom (TAB) duct connections. Finally, a Wide Web CyClean with an optional end‑feed carapace configuration.
DownloadFeatures & Benefits
Delivers consistent cleaning across the web width by removing static and contamination.
Stationary ducting connections simplify installation.
Contact‑free cleaning prevents marking and maintains web tracking and tension.
Provides precise control over the balance between blowing and vacuum airflow.
Low ongoing costs.
Reduces the need for manual operator adjustments.
Installs easily on most machines for quick web threading with a minimal footprint.
Neutralises static to improve cleaning and prevent recontamination.
Low noise levels suitable for enclosed work areas without H&S concerns.
Narrow webs: manual or pneumatic; wider webs: pneumatic TAB or carapace.
Technical Characteristics
Up to 2000mm, 78″.
6 x 40mm Ø duct connections in a fixed position.
4 x M8 x 16mm holes.
600 mtrs/min, 1968 ft/min.
Manual opening with gas strut and end hinges or pneumatic opening.
Images
Documentation
*Access our full library of current and archived operation manuals here.
Related Products
Must Haves
AHUv3 Mini – 1 Pump
Product Code: A-AHUV3-1PUMP
The AHUv3 Mini – 1 Pump provides the positive pressure and vacuum pressure airflows and houses the system filters.
AHUv3 Compact – 2 Pump
Product Code: A-AHUV3-2PUMP
The AHUv3 Compact provides the positive pressure and vacuum pressure airflows and houses the system filters. The AHUv3 Compact is a 2 pump unit designed predominantly for narrow web applications of up to 600mm.
AHUv3 Standard – 3 Pump or 6 Pump
Product Code: A-AHUV3-3PUMP/6PUMP
The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.
