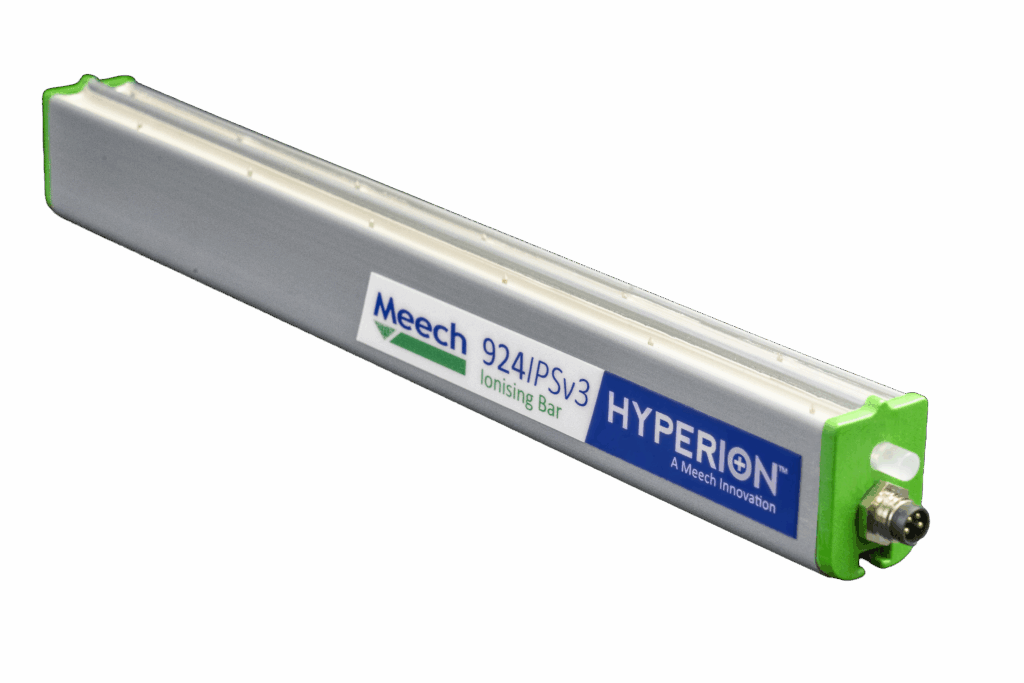

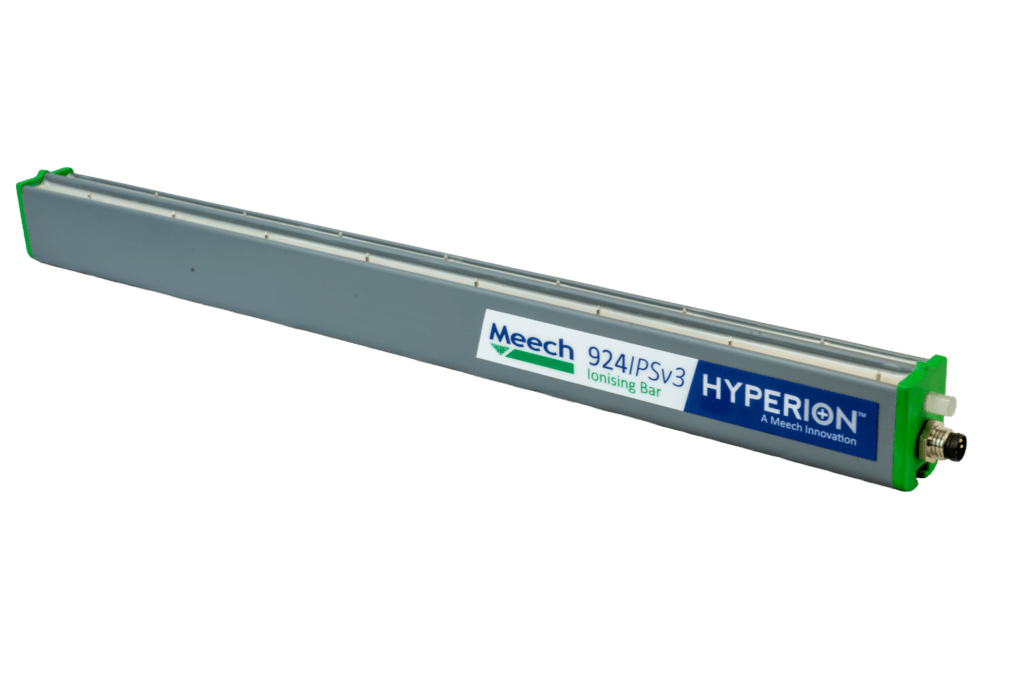

924IPSv3 Short-Range Ionising Bar
Product Code: 924IPSv3
The Hyperion™ 924IPSv3 ionising bar utilises a 24V DC integrated power supply, capable of providing ionising power for short range distances up to 200mm. In addition, it is specifically designed with full length ionisation, ensuring full performance over its entire length. Furthermore, it is the most compact pulsed DC bar available on the market.
The Hyperion™ 924IPSv3 also integrates with our SmartControl Touch™ and BarMaster Programmer for adjustability of the output voltage, frequency and balance settings, giving the operator the ability to optimise performance for specific conditions. The LED on the bar indicates status and whether the bar needs cleaning, whilst dual alarm signals for PLCs, buzzers and remote lamps will remotely alert operators to check the bar.
As part of our continuous improvement programme, the 924IPSv3 replaces the 924IPSv2, our best-selling 24V DC ionising bar. The 924IPSv3 includes enhancements that further improve its performance. For example, pure Titanium emitter pins shaped with a rounded tip to guarantee the highest level of performance and a long life.
Finally, the 924IPSv3 is available in two alternative versions to meet different application needs. For example, the 924EX Short-Range Ionising Bar for hazardous areas and the 924S Short-Range Ionising Bar for use on wide format digital printers.
DownloadFeatures & Benefits
Will fit into tight installations.
LEDs indicate status of bar and and whether it needs cleaning.
One of the best materials with extremely low wear rates for guaranteed long life.
Dual alarm signals for PLCs, buzzers and remote lamps.
100% performance over its entire length.
Adjustable voltage, frequency & output balance via BarMaster Programmer or SmartControl Touch™ .
Technical Characteristics
FR-ABS with pure Titanium emitters.
Two signals available: ‘Alert’ and ‘Fault/Standby’ (fault/standby signal can also be adjusted via BarMaster or SmartControl.). Both outputs are IEC 61131-2 type 1, 2 & 3 PLC inputs compatible. Tri-colour LEDs for local status indication including a cleaning alert.

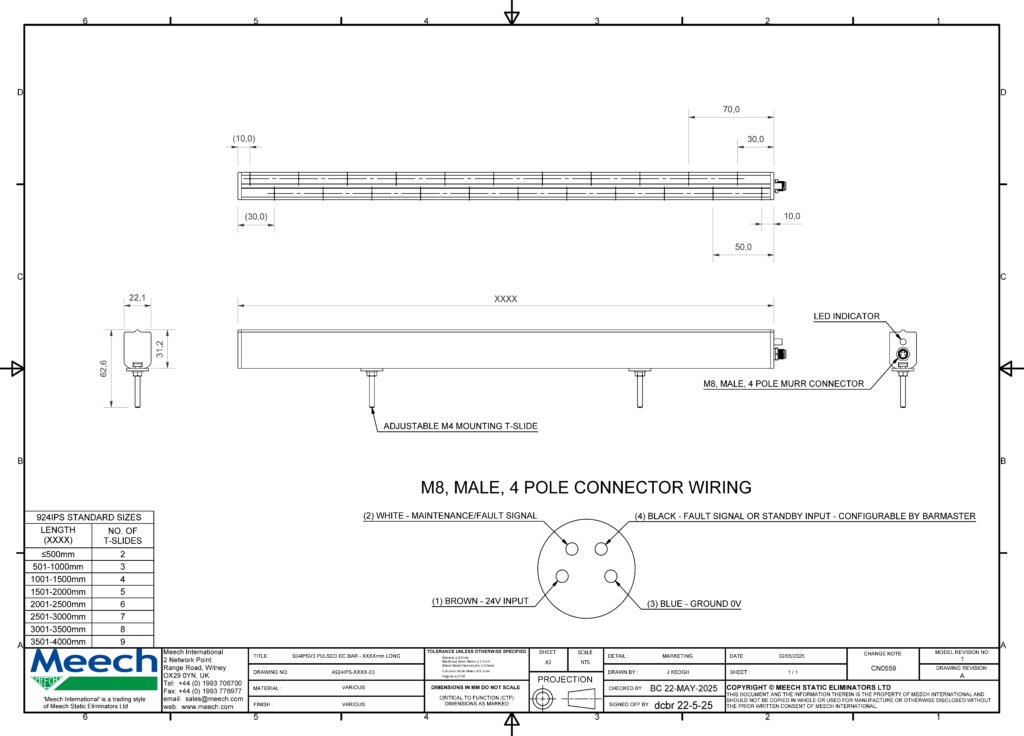

22.1mm x 31.2mm (W x H). Available lengths: 40mm increments between 240-3960mm.
24V DC (21-27V). Maximum current required 0.5mA. M8 4-pin connector.
0.5kg/m.
60°C. IP66.
Adjustable (2 to 7.5kV) via BarMaster or SmartControl.
CE and UL.
Default setting: 20Hz, Adjustable via BarMaster or SmartControl.
‘T’-slot with M4 x 20mm slides.
Default 54:46 Pos:Neg, adjustable via BarMaster or SmartControl.
100 – 240V, 24V DC Power Supply, SmartControl™ and BarMaster.
Images
Related Products

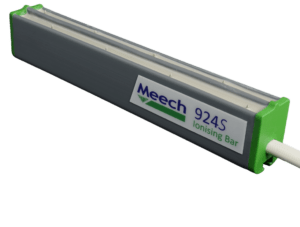

924S Pulsed DC Ionising Bar
