IonWash™

Product Code:

The Meech IonWash™ is a revolutionary nozzle cleaning system, designed to remove dry un-bonded contamination from components.
The IonWash incorporates specially designed Meech adjustable ionising nozzles which direct the ionisation and air flow towards the components to blow the contamination from the surface of a three-dimensional object in a time and labour efficient manner. Developed specifically with three-dimensional ionisation in mind, the IonWash is the latest innovation in large product and component contamination removal.

  Download
Features & Benefits
Enclosed cleaning chamber

No manual handling of components required during the cleaning cycle, resulting in consistent and effective contamination removal.
High volume blown air flow

Rapid and effective removal of contamination without the need for compressed air.
Closed loop air flow

Instant high volume positive and negative (vacuum) air flow is generated within a closed loop system resulting in rapid extraction and containment of contamination
16 multi directional nozzles

Each nozzle can be manually positioned and relocated to target the high volume air flow at the areas of the 3 dimensional component being cleaned for optimal contamination removal.
Static neutralisation

Each nozzle emits powerful blown ionisation at the component to eliminate static charge to loosen and remove contamination. Ionisation balance also be easily adjusted.
Advanced filtration

Particle contamination is trapped via a two stage filtration system using F8 grade bag filter and HEPA H14 filter.
Touch screen control panel

For adjustments to cycle time and air pressure according to requirements for optimal cleaning performance.
Images
Documentation

Ionwash Operating Manual

Download

IonWash Brochure

Download
Must Haves
AHUv3 Standard – 3 Pump or 6 Pump

Product Code: A-AHUV3-3PUMP/6PUMP

The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.

View Product

IonWash™

Product Code:

The Meech IonWash™ is a revolutionary nozzle cleaning system, designed to remove dry un-bonded contamination from components.
The IonWash incorporates specially designed Meech adjustable ionising nozzles which direct the ionisation and air flow towards the components to blow the contamination from the surface of a three-dimensional object in a time and labour efficient manner. Developed specifically with three-dimensional ionisation in mind, the IonWash is the latest innovation in large product and component contamination removal.



Features & Benefits
Enclosed cleaning chamber No manual handling of components required during the cleaning cycle, resulting in consistent and effective contamination removal.
High volume blown air flow Rapid and effective removal of contamination without the need for compressed air.
Closed loop air flow Instant high volume positive and negative (vacuum) air flow is generated within a closed loop system resulting in rapid extraction and containment of contamination
16 multi directional nozzles Each nozzle can be manually positioned and relocated to target the high volume air flow at the areas of the 3 dimensional component being cleaned for optimal contamination removal.
Static neutralisation Each nozzle emits powerful blown ionisation at the component to eliminate static charge to loosen and remove contamination. Ionisation balance also be easily adjusted.
Advanced filtration Particle contamination is trapped via a two stage filtration system using F8 grade bag filter and HEPA H14 filter.
Touch screen control panel For adjustments to cycle time and air pressure according to requirements for optimal cleaning performance.

925 High Temperature Bar

Product Code: A925-XXXX

The Meech 925 is an AC Ionising bar, designed to eliminate static in high-temperature applications. With a maximum operating temperature of 150°C, the 925 can be mounted in areas not suitable for standard AC ionising bars. The powerful performance of this anti-static bar provides very effective neutralisation of static charges at distances up to 100mm.
The emitter pins of the 925 are directly coupled to the HT output of the Meech 906 Power Unit. The 906 has a maximum output current of 5mA; an internationally recognised safe current.

  Download
Features & Benefits
Intense Ion Production

Very fast decay times and effective on fast web speeds
Extended Range Performance

Flexibility in positioning
Slim Profile

Can be installed in restricted spaces
Titanium Emitter Pins

Long effective life
Easy Wipe Clean Tube

Easy maintenance, reduced machine down time
High Temperature Operation

Suitable for use in areas too hot for standard ionising bars
Technical Characteristics
Dimensions

Ø 28mm, Max length 2400mm
Optimum Working Distance

100mm
Operating Temperature

Max 150°C
Power Supply

906 Power Unit
Weight

Approx 800g per metre
Operating Voltage

4.5 – 6kV
Cable

Shielded flexible conduit. Standard length 2000mm. Longer lengthavailable on request.
Construction

Aluminium chassis with PTFE and PEEK connection and insulationcomponents
Emitter Pins

Titanium
Operating Current

Less than 5mA
Images
Documentation

Meech Static Control Brochure

Download
Related Products
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product

925 High Temperature Bar

Product Code: A925-XXXX

The Meech 925 is an AC Ionising bar, designed to eliminate static in high-temperature applications. With a maximum operating temperature of 150°C, the 925 can be mounted in areas not suitable for standard AC ionising bars. The powerful performance of this anti-static bar provides very effective neutralisation of static charges at distances up to 100mm.
The emitter pins of the 925 are directly coupled to the HT output of the Meech 906 Power Unit. The 906 has a maximum output current of 5mA; an internationally recognised safe current.



Features & Benefits
Intense Ion Production Very fast decay times and effective on fast web speeds
Extended Range Performance Flexibility in positioning
Slim Profile Can be installed in restricted spaces
Titanium Emitter Pins Long effective life
Easy Wipe Clean Tube Easy maintenance, reduced machine down time
High Temperature Operation Suitable for use in areas too hot for standard ionising bars

Technical Characteristics
Dimensions Ø 28mm, Max length 2400mm
Optimum Working Distance 100mm
Operating Temperature Max 150°C
Power Supply 906 Power Unit
Weight Approx 800g per metre
Operating Voltage 4.5 - 6kV
Cable Shielded flexible conduit. Standard length 2000mm. Longer lengthavailable on request.
Construction Aluminium chassis with PTFE and PEEK connection and insulationcomponents
Emitter Pins Titanium
Operating Current Less than 5mA

Hyperion 994CG – Compact Generator

Product Code: A994CG

The Hyperion 994CG Compact IML Generator is the first generator to be developed as part of the Hyperion range. Developed for the In Mould Labelling (IML) market, Meech has designed the 994CG to meet the growing demand for a compact, lightweight generator to fit on the end of a robot arm.

The 994CG is the only generator to feature 4 x 25kV outlets, allowing the coupling of Meech Hydras without the need for a splitter whilst still maintaining its compact dimensions. Powered by a 22-26VDC supply it is one of the most powerful compact IML Generators available.

  Download
Features & Benefits
Low Voltage Wiring

Requiring a 24V DC supply removes the need for high voltage wiring to the compact IML Generator. This greatly simplifies installation; avoiding the need to route high voltage cables from a remote high voltage generator.
Integrated Power Supply (IPS)

The integral DC power supply uses surface mount high voltage components. This reduces the overall size of the 994CG helping with installation into tight spaces.
Compact Size

Allows installation directly on horizontal or vertical access robot arms.
Adjustable Output

The Output voltage can be adjusted to suit sensitive applications. This can be programmed remotely either with an existing PLC control, a Meech Remote Set Point control or via a Meech BarMaster programmer.
PLC Control

The voltage, remote on/off and alarms can be activated, adjusted or monitored via the robot PLC. This can be fully integrated into the robots programming.
Remote Set Point Control

For applications without PLC control or BarMaster connectivity a manually operated Remote Set Point Control can be supplied to allow adjustment to output voltage.
Technical Characteristics
Dimensions (WxHxD)

45mm x 40mm x 170mm
Weight

0.4kg
Construction

DuraForm PA (Nylon 12)
Input Current

200 to 850mA Load dependant
Output Voltage

4 to 25kV
Connection

5-Pin, M12
Settings Control

BarMaster or Remote Setpoint Control
LED Indication

Green/Red LEDs
Setpoint

4 to 20mA, 1 to 5VDC
Environmental Protection

IP66
Input Voltage

22 to 26VDC – N.B. Supply must be grounded
Local Indication

Two colour solid green = standby, flashing green = charging, red = fault
Applications
Images
Documentation

Hyperion_994CG_Compact_IML_Generator

Download

Meech Static Control Brochure

Download

994CG SOCKET Technical Drawing

Download

Hyperion Static Control Range Brochure

Download
Related Products
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product

Hyperion 994CG – Compact Generator

Product Code: A994CG

The Hyperion 994CG Compact IML Generator is the first generator to be developed as part of the Hyperion range. Developed for the In Mould Labelling (IML) market, Meech has designed the 994CG to meet the growing demand for a compact, lightweight generator to fit on the end of a robot arm.

The 994CG is the only generator to feature 4 x 25kV outlets, allowing the coupling of Meech Hydras without the need for a splitter whilst still maintaining its compact dimensions. Powered by a 22-26VDC supply it is one of the most powerful compact IML Generators available.



Features & Benefits
Low Voltage Wiring Requiring a 24V DC supply removes the need for high voltage wiring to the compact IML Generator. This greatly simplifies installation; avoiding the need to route high voltage cables from a remote high voltage generator.
Integrated Power Supply (IPS)         The integral DC power supply uses surface mount high voltage components. This reduces the overall size of the 994CG helping with installation into tight spaces.
Compact Size Allows installation directly on horizontal or vertical access robot arms.
Adjustable Output The Output voltage can be adjusted to suit sensitive applications. This can be programmed remotely either with an existing PLC control, a Meech Remote Set Point control or via a Meech BarMaster programmer.
PLC Control The voltage, remote on/off and alarms can be activated, adjusted or monitored via the robot PLC. This can be fully integrated into the robots programming.
Remote Set Point Control For applications without PLC control or BarMaster connectivity a manually operated Remote Set Point Control can be supplied to allow adjustment to output voltage.

Technical Characteristics
Dimensions (WxHxD) 45mm x 40mm x 170mm
Weight 0.4kg
Construction DuraForm PA (Nylon 12)
Input Current 200 to 850mA Load dependant
Output Voltage 4 to 25kV
Connection 5-Pin, M12
Settings Control BarMaster or Remote Setpoint Control
LED Indication Green/Red LEDs
Setpoint 4 to 20mA, 1 to 5VDC
Environmental Protection IP66
Input Voltage 22 to 26VDC - N.B. Supply must be grounded
Local Indication Two colour solid green = standby, flashing green = charging, red = fault

EX Cabinet Cooler

Product Code: A70025EX-SS303 and A70025EX-SS316

The IP66 EX Cabinet Cooler is suitable for cooling cabinet/panels in hazardous locations.

The Meech EX Cabinet Cooler uses compressed air to provide a cold air source that stops industrial cabinets/panels or enclosures in hazardous locations from overheating. The Meech EX Cabinet Cooler is suitable for installation in category 2 (Zone 1), T4 locations, where ATEX or IECEx certification is required.

This IP66 rated model is both dust tight and protected against powerful water jets. Meaning water projected in powerful jets against the enclosure from any direction shall have no harmful effects.

Prior to the IP test the Cabinet Cooler was also subjected to three climatic pre-conditioning tests. These tests proved the integrity of the Cabinet Cooler after it had been subjected to temperatures of 90°C for a duration of 672 hours. Following this the cooler was subjected to further temperature endurance test. These tests were carried out in accordance with IEC60079-0:2017.

The Cabinet Cooler has no electrical/electronic components making them entirely non-electrical. The cooling is provided from a Vortex Tube located inside the cooler. The Cabinet Cooler creates both a hot and cold stream of air, the cold air is directed inside the enclosure whilst the hot air is released to the atmosphere via two holes located in the side of the Cabinet Cooler.

The device is supplied with 4 x Generators that are used to regulate both the air consumption and air temperature. The Yellow 10CFM, Red 15CFM, Blue 25CFM and Brown 35CFM Generators can be easily switched to suit different conditions or applications.

The Cooler can be mounted to the directly to the top, side or underneath of the enclosure via a 26mm diameter hole. An O-ring seal between the Cabinet Cooler and the enclosure wall maintains the integrity of the enclosure. This model Cabinet Cooler is IP66 rated.

The Cabinet Cooler is available in both Stainless Steel grades 303 and 316, allowing it to be used in a wide variety of applications.

Product Codes

EX Cabinet Cooler Unit – IP66 Category 2 (Zone1), T4 applications, in SS303 – A70025EX-SS303

EX Cabinet Cooler Unit – IP66 Category 2 (Zone1), T4 applications, in SS316L- A70025EX-SS316

  Download
Features & Benefits
Innovative Design

Small Size allows installation into Small spaces
No Moving parts

Reduced Maintenance
Adjustable

Supplied with 4 x Generators to control air volume and temperature
Low Noise

73dBA with red generator at 80 psi (5.4 Bar)
Prevents dust and ingress

Cooler creates positive pressure inside cabinet to stop ingress
Cold Fraction

70% (2.5 Turns from closed)
Non EX Version available

For use in standard applictions
Can be easily fitted as an replacement replacement for an existing panel/cabinet

Ideal replacement for fans that are more commonly used to cool cabinets
Technical Characteristics
Dimensions

(H) 194mm x (W) 45mm
Included

EX Cabinet Cooler unit, 4 x High Fraction Generators and 2.5m of Cooling Tube.
Noise Level

73dBA (@ 80psi, 5.5 Bar), with Red Generator fitted.
Cooling Capacity

190 Watt (650 Btu/hr) to 703 Watt (2400 Btu/hr)
IP Rating

IP66 (Test Certificate Number TRA055426CC01)
Maximum Inlet Air Pressure

80 psi (5.5 Bar)
Maximum Inlet Air Temperature

55°C
Metal Grade

Available in either Stainless Steel grade 303 or 316L
Pressure Relief Valve

Dependant on inlet pressure the cooler will vent air at between 1.5 & 3kPa (0.015 and 0.03 bar)
Thermal Endurance to heat test

In accordance with IEC6079-0:2017. Specimen subjected to three climatic pre-conditioning tests
EX and IECEx Certification Numbers

Baseefa16ATEX0042X – Issue 2

IECEx BAS 16,0087X
Report Number

GB/BAS/ExTR16.0213/00
Temperature Classification

T4
Product Classification

Group II Category 2 Equipment
Images
Documentation

EX_Cabinet_Cooler_Manual_October_2016

Download

Meech Air Technology - Vortex Cooling Range Brochure

Download

Baseefa16ATEX0042X Issue 2 signed

Download

IECEx_BAS_16.0087X_002_SR

Download

Cabinet Cooler IP test certificate 2023

Download
Related Products
Cabinet Cooler

Product Code: A70000

Meech Stainless Steel Cabinet Coolers provide a cold air source to stop cabinets overheating and prevent ingress of contamination such as dust or moisture.



View Product

EX Cabinet Cooler

Product Code: A70025EX-SS303 and A70025EX-SS316

The IP66 EX Cabinet Cooler is suitable for cooling cabinet/panels in hazardous locations.

The Meech EX Cabinet Cooler uses compressed air to provide a cold air source that stops industrial cabinets/panels or enclosures in hazardous locations from overheating. The Meech EX Cabinet Cooler is suitable for installation in category 2 (Zone 1), T4 locations, where ATEX or IECEx certification is required.

This IP66 rated model is both dust tight and protected against powerful water jets. Meaning water projected in powerful jets against the enclosure from any direction shall have no harmful effects.

Prior to the IP test the Cabinet Cooler was also subjected to three climatic pre-conditioning tests. These tests proved the integrity of the Cabinet Cooler after it had been subjected to temperatures of 90°C for a duration of 672 hours. Following this the cooler was subjected to further temperature endurance test. These tests were carried out in accordance with IEC60079-0:2017.

The Cabinet Cooler has no electrical/electronic components making them entirely non-electrical. The cooling is provided from a Vortex Tube located inside the cooler. The Cabinet Cooler creates both a hot and cold stream of air, the cold air is directed inside the enclosure whilst the hot air is released to the atmosphere via two holes located in the side of the Cabinet Cooler.

The device is supplied with 4 x Generators that are used to regulate both the air consumption and air temperature. The Yellow 10CFM, Red 15CFM, Blue 25CFM and Brown 35CFM Generators can be easily switched to suit different conditions or applications.

The Cooler can be mounted to the directly to the top, side or underneath of the enclosure via a 26mm diameter hole. An O-ring seal between the Cabinet Cooler and the enclosure wall maintains the integrity of the enclosure. This model Cabinet Cooler is IP66 rated.

The Cabinet Cooler is available in both Stainless Steel grades 303 and 316, allowing it to be used in a wide variety of applications.

Product Codes

EX Cabinet Cooler Unit – IP66 Category 2 (Zone1), T4 applications, in SS303 – A70025EX-SS303

EX Cabinet Cooler Unit – IP66 Category 2 (Zone1), T4 applications, in SS316L- A70025EX-SS316



Features & Benefits
Innovative Design Small Size allows installation into Small spaces
No Moving parts Reduced Maintenance
Adjustable Supplied with 4 x Generators to control air volume and temperature
Low Noise 73dBA with red generator at 80 psi (5.4 Bar)
Prevents dust and ingress Cooler creates positive pressure inside cabinet to stop ingress
Cold Fraction 70% (2.5 Turns from closed)
Non EX Version available For use in standard applictions
Can be easily fitted as an replacement replacement for an existing panel/cabinet Ideal replacement for fans that are more commonly used to cool cabinets

Technical Characteristics
Dimensions (H) 194mm x (W) 45mm
Included EX Cabinet Cooler unit, 4 x High Fraction Generators and 2.5m of Cooling Tube.
Noise Level 73dBA (@ 80psi, 5.5 Bar), with Red Generator fitted.
Cooling Capacity 190 Watt (650 Btu/hr) to 703 Watt (2400 Btu/hr)
IP Rating IP66 (Test Certificate Number TRA055426CC01)
Maximum Inlet Air Pressure 80 psi (5.5 Bar)
Maximum Inlet Air Temperature 55°C
Metal Grade Available in either Stainless Steel grade 303 or 316L
Pressure Relief Valve Dependant on inlet pressure the cooler will vent air at between 1.5 & 3kPa (0.015 and 0.03 bar)
Thermal Endurance to heat test In accordance with IEC6079-0:2017. Specimen subjected to three climatic pre-conditioning tests
EX and IECEx Certification Numbers Baseefa16ATEX0042X - Issue 2 IECEx BAS 16,0087X
Report Number GB/BAS/ExTR16.0213/00
Temperature Classification T4
Product Classification Group II Category 2 Equipment

Hyperion 971IPS-30 Extra Long-Range Pulsed DC Ionising Bar

Product Code: A971IPS-30

The Meech 971IPS-30 Extra Long-Range Pulsed DC Ionising Bar is the latest addition to the Meech Hyperion Range.

The 971IPS-30 is powered by an integrated +/- 30kV 24V DC power supply, making it the most powerful ionising bar in Meech’s range.

The 971IPS-30 is suitable for ultra-long range applications from 450 to 1500mm.

Equipped with Meech’s Ion Current Monitoring (ICM) technology, bar performance is maintained with local and remote alarms indicating when the bar needs cleaning. The Hyperion BarMaster remote programmer can also be used to adjust the frequency and balance of the bar, optimizing it for each application.

  Download
Features & Benefits
Optimum working distance

450-1500mm suitable for long reach applications such as slitter rewinders, transit bag machines and turret rewinders.
Low voltage wiring

Requiring a 24V DC power supply eliminates the need for high-voltage wiring to the ionisation strip.
Integrated power supply (IPS)

The integrated power supply delivers +/- 30kV pulsed DC.
Adjustable output

Frequency and balance can be adjusted with the optional BarMaster programmer.
Air Boost (air amplification)

Additional performance can be achieved through the use of integrated air support.
Adjustable Clean Pin Warning Signal

Meech Ion Current Monitoring (ICM) technology detects when the 971IPS-30 needs cleaning. An LED on the bar alerts operators when cleaning is required. This ensures peak performance is maintained.
Removable titanium emitters

Emitter pin assemblies are designed to be easy to clean and replace, allowing the 971IPS-30 to maintain performance for many years.
Remote signal

An output signal will be activated when the bar needs cleaning or a fault is detected. In this way, operators will be remotely notified when the bar needs to be serviced.
Technical Characteristics
Optimum Operating Distance

450 to 1200mm
Dimensions (WxH)

63mm x 70mm
Weight

1.2kg/metre
Construction

FR ABS
Mounting

Socket ‘T’ with M4 x 20mm pins
Emitters

Sharp titanium pins. Replaceable
Input Current

Max 625mA
Input Voltage

24VDC (21-27VDC)
Output voltage

2 to 15kVDC Pos/Neg
Output frequency

Default setting: 1Hz, Adjustable with BarMaster or SmartControl from 0.5H to 9.5Hz
Environmental protection

IP64
Output Balance

BarMaster ir SmartControl adjustable between 80:20 to 20:80 Pos:Neg (Defalt 60:40 Pos:Neg)
Baseline Balance

Default: 60% positive, 40% negative (adjustable with BarMaster)
Maximum Ambient Temperature

60°C
Air Boost Connection

6mm push-lift
Air Consumption

113 1/min per 1000mm at 1 bar
Maximum Length

3920mm
Electrical Connection

4-Pin, M8
Certificate

CE
Applications
Images
Documentation

Meech Static Control Brochure

Download

A971IPS-30KV

Download

Hyperion Static Control Range Brochure

Download

971IPS-30kV Operating Manual

Download
Related Products
SmartControl Touch SmartControl™ Touch

Product Code: ASMARTCON-TOUCH-LAN

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Hyperion™ Feedback Sensor Feedback Sensor

Product Code: A900IPS-FBSEN-XX

View Product
Programmer BarMaster Programmer

Product Code: A900-BARMASTER-F

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product

Hyperion 971IPS-30 Extra Long-Range Pulsed DC Ionising Bar

Product Code: A971IPS-30

The Meech 971IPS-30 Extra Long-Range Pulsed DC Ionising Bar is the latest addition to the Meech Hyperion Range.

The 971IPS-30 is powered by an integrated +/- 30kV 24V DC power supply, making it the most powerful ionising bar in Meech’s range.

The 971IPS-30 is suitable for ultra-long range applications from 450 to 1500mm.

Equipped with Meech’s Ion Current Monitoring (ICM) technology, bar performance is maintained with local and remote alarms indicating when the bar needs cleaning. The Hyperion BarMaster remote programmer can also be used to adjust the frequency and balance of the bar, optimizing it for each application.



Features & Benefits
Optimum working distance 450-1500mm suitable for long reach applications such as slitter rewinders, transit bag machines and turret rewinders.
Low voltage wiring Requiring a 24V DC power supply eliminates the need for high-voltage wiring to the ionisation strip.
Integrated power supply (IPS) The integrated power supply delivers +/- 30kV pulsed DC.
Adjustable output Frequency and balance can be adjusted with the optional BarMaster programmer.
Air Boost (air amplification) Additional performance can be achieved through the use of integrated air support.
Adjustable Clean Pin Warning Signal Meech Ion Current Monitoring (ICM) technology detects when the 971IPS-30 needs cleaning. An LED on the bar alerts operators when cleaning is required. This ensures peak performance is maintained.
Removable titanium emitters Emitter pin assemblies are designed to be easy to clean and replace, allowing the 971IPS-30 to maintain performance for many years.
Remote signal An output signal will be activated when the bar needs cleaning or a fault is detected. In this way, operators will be remotely notified when the bar needs to be serviced.

Technical Characteristics
Optimum Operating Distance 450 to 1200mm
Dimensions (WxH)  63mm x 70mm
Weight 1.2kg/metre
Construction FR ABS
Mounting Socket 'T' with M4 x 20mm pins
Emitters Sharp titanium pins. Replaceable
Input Current Max 625mA
Input Voltage 24VDC (21-27VDC)
Output voltage 2 to 15kVDC Pos/Neg
Output frequency Default setting: 1Hz, Adjustable with BarMaster or SmartControl from 0.5H to 9.5Hz
Environmental protection IP64
Output Balance BarMaster ir SmartControl adjustable between 80:20 to 20:80 Pos:Neg (Defalt 60:40 Pos:Neg)
Baseline Balance Default: 60% positive, 40% negative (adjustable with BarMaster)
Maximum Ambient Temperature 60°C
Air Boost Connection 6mm push-lift
Air Consumption 113 1/min per 1000mm at 1 bar
Maximum Length 3920mm
Electrical Connection 4-Pin, M8
Certificate CE

Hyperion 959IPS Ionising Air Curtain

Product Code: A959IPS

The Hyperion 959IPS ionising air curtain is an extremely versatile product that provides effective static neutralisation and dust removal for a wide range of industrial applications.

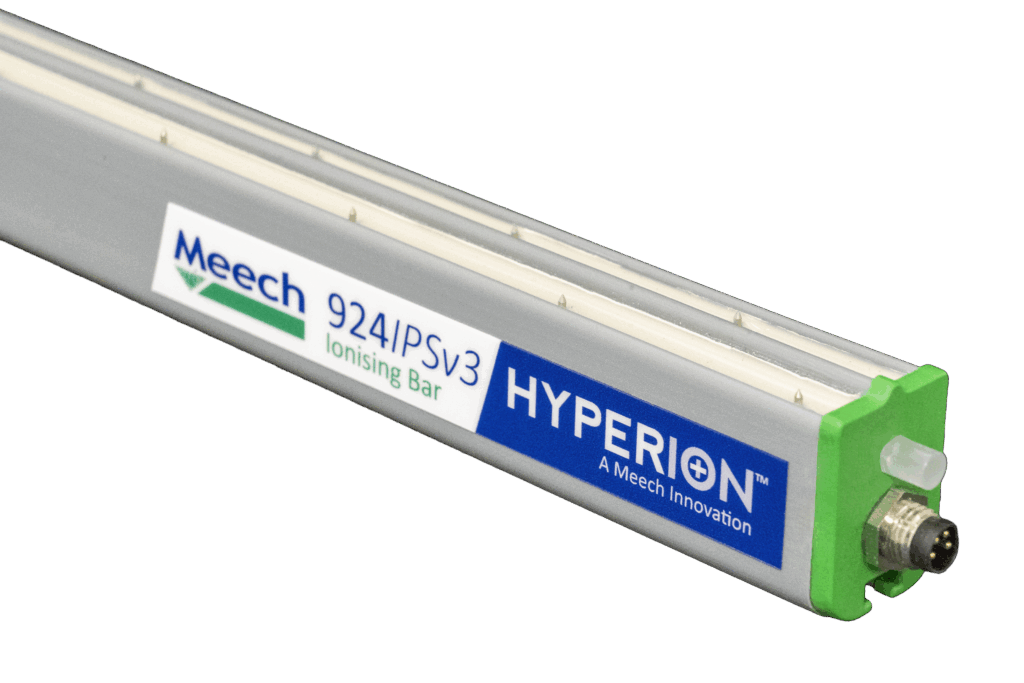

The unit comprises a Hyperion 924IPS mounted on a Meech energy saving air curtain. Combined they provide a high speed laminar sheet of ionised air.

As with other Hyperion products, the 959IPS features Meech’s Ion Current Monitoring (ICM) technology, which ensures performance is maintained with local and remote alerts when the bar needs cleaning.

Fully BarMaster compatible, the frequency and balance can be adjusted to optimise performance.

  Download
Features & Benefits
Optimum Working Distance

20-300mm for dust removal combined with a typical effective ionisation range of up to 300mm.
Energy Efficient Air Curtain

Can cut compressed air demand by up to 70%, reducing running costs.
Low Voltage Wiring

Requiring a 24V DC supply removes the need for high voltage wiring to the ionising bar.
Integrated Power Supply (IPS)

The integral pulsed DC power supply uses surface-mount high voltage components. This reduces the overall size of the bar.
Adjustable Output

Output voltage, frequency and balance can be adjusted using the BarMaster programmer.
Adjustable output optimises the bar for a range of applications.
Adjustable Clean Pin Alert

Meech Ion Current Monitoring (ICM) technology detects when the 924IPS needs to be cleaned. The LED on the bar alerts operators of the need for cleaning. This ensures peak performance is maintained.
Environmental Protection

IP66 construction makes the ionising air curtain suitable for harsh environments.
Remote Signal

An output signal will activate when the bar needs cleaning or a fault has been detected.
This will alert operators remotely to attend the bar.
Technical Characteristics
Optimum Operating Distance

20 to 300mm
Dimensions (WxH)

28mm x 60.5mm
Maximum Length

1800mm
Weight

2.1kg/metre
Electrical Connection

4-Pin, M8
Construction

FR ABS / Aluminium
Input Current

Max 500mA
Input Voltage

24VDC (21-27VDC)
Output Voltage

Adjustable, 3 to 7.5kVDC Pos/Neg
Output Frequency

Default Setting: 20Hz, Adjustable with BarMaster or Smart Control from 1 to 20Hz
Output Balance

Barmaster or SmartControl adjustable between 80:20 to 20:80 Pos:Neg (Default 54:46 Pos:Neg)
Environmental Protection

IP66
Mounting

Fixed M5 studs
Emitters

Sharp titanium pins
Max Ambient Temperature

60°C
Air Curtain Connection

1/4” BSP
Fault Alert

0/24V
Clean Pin Alert

0/24V
Air Consumption

112 l/min at 5 bar per 25mm of length
Applications
Images
Documentation
Related Products
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Programmer BarMaster Programmer

Product Code: A900-BARMASTER-F

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product

Hyperion 959IPS Ionising Air Curtain

Product Code: A959IPS

The Hyperion 959IPS ionising air curtain is an extremely versatile product that provides effective static neutralisation and dust removal for a wide range of industrial applications.

The unit comprises a Hyperion 924IPS mounted on a Meech energy saving air curtain. Combined they provide a high speed laminar sheet of ionised air.

As with other Hyperion products, the 959IPS features Meech’s Ion Current Monitoring (ICM) technology, which ensures performance is maintained with local and remote alerts when the bar needs cleaning.

Fully BarMaster compatible, the frequency and balance can be adjusted to optimise performance.



Features & Benefits
Optimum Working Distance 20-300mm for dust removal combined with a typical effective ionisation range of up to 300mm.
Energy Efficient Air Curtain Can cut compressed air demand by up to 70%, reducing running costs.
Low Voltage Wiring Requiring a 24V DC supply removes the need for high voltage wiring to the ionising bar.
Integrated Power Supply (IPS) The integral pulsed DC power supply uses surface-mount high voltage components. This reduces the overall size of the bar.
Adjustable Output Output voltage, frequency and balance can be adjusted using the BarMaster programmer. Adjustable output optimises the bar for a range of applications.
Adjustable Clean Pin Alert  Meech Ion Current Monitoring (ICM) technology detects when the 924IPS needs to be cleaned. The LED on the bar alerts operators of the need for cleaning. This ensures peak performance is maintained.
Environmental Protection IP66 construction makes the ionising air curtain suitable for harsh environments.
Remote Signal An output signal will activate when the bar needs cleaning or a fault has been detected. This will alert operators remotely to attend the bar.

Technical Characteristics
Optimum Operating Distance 20 to 300mm
Dimensions (WxH)  28mm x 60.5mm
Maximum Length 1800mm
Weight 2.1kg/metre
Electrical Connection 4-Pin, M8
Construction FR ABS / Aluminium
Input Current Max 500mA
Input Voltage 24VDC (21-27VDC)
Output Voltage Adjustable, 3 to 7.5kVDC Pos/Neg
Output Frequency Default Setting: 20Hz, Adjustable with BarMaster or Smart Control from 1 to 20Hz
Output Balance Barmaster or SmartControl adjustable between 80:20 to 20:80 Pos:Neg (Default 54:46 Pos:Neg)
Environmental Protection IP66
Mounting Fixed M5 studs
Emitters Sharp titanium pins
Max Ambient Temperature 60°C
Air Curtain Connection 1/4” BSP
Fault Alert 0/24V
Clean Pin Alert 0/24V
Air Consumption 112 l/min at 5 bar per 25mm of length

Small Coldstream Air Gun

Product Code: A60008

The Meech Small Coldstream Air Gun comprises of a small Vortex Tube, hot and cold-end silencers and a length of flexible knuckle trunking.

The Small Coldstream Air Gun is specially designed for smaller, more delicate applications that require less air flow. The Small Coldstream Air Gun is supplied with both the yellow 8cfm high fraction generator and the green 8cfm low fraction generator.

  Download
Features & Benefits
Innovative Design

The use of silencers reduces noise levels meaning they can be used in most environments
No Moving Parts

No maintenance
Easy to Install

Includes a strong magnet that will secure it to any ferromagnetic surface
Adjustable

Supplied with 2 generators (yellow and green) that will control the air volume and temperature
Manufactured in Stainless Steel

Hard wearing and suitable for use in many different environments
Low Noise

Cold-end silencer reduces compressed air noise
Two Sizes

Small and Large
Knuckle Trunking

Allows cold air to be directed to hard to reach areas
Technical Characteristics
Dimensions (mm)

(L) 230mm x (H) 50mm
Images
Related Products
Coldstream Air Gun

Product Code: A60000

Coldstream Air Guns from Meech Air Technology provide a cold airflow that is commonly used for spot cooling.

View Product

Small Coldstream Air Gun

Product Code: A60008

The Meech Small Coldstream Air Gun comprises of a small Vortex Tube, hot and cold-end silencers and a length of flexible knuckle trunking.

The Small Coldstream Air Gun is specially designed for smaller, more delicate applications that require less air flow. The Small Coldstream Air Gun is supplied with both the yellow 8cfm high fraction generator and the green 8cfm low fraction generator.



Features & Benefits
Innovative Design The use of silencers reduces noise levels meaning they can be used in most environments
No Moving Parts No maintenance
Easy to Install Includes a strong magnet that will secure it to any ferromagnetic surface
Adjustable Supplied with 2 generators (yellow and green) that will control the air volume and temperature
Manufactured in Stainless Steel Hard wearing and suitable for use in many different environments
Low Noise Cold-end silencer reduces compressed air noise
Two Sizes Small and Large
Knuckle Trunking Allows cold air to be directed to hard to reach areas

Technical Characteristics
Dimensions (mm) (L) 230mm x (H) 50mm

Small Vortex Tube

Product Code: A21000

Like the medium version, the Meech Small Vortex Tube converts compressed air into two air flows, one very cold the other very hot. Temperature drops can be up to 50°C below the inlet compressed air temperature, whilst the hot air can be up to 50°C above the inlet air temperature.

Small Vortex Tubes are specially designed for smaller, more delicate applications that require less air flow. The Small Vortex Tube is supplied with either a yellow 8cfm high fraction generator, or a green 8cfm low fraction generator.

  Download
Features & Benefits
Innovative Design

Provides both hot and cold air, which can be as much as 50°C above or below the air temperature
No Moving Parts

No maintenance
Easy to Install

Standard 1/8” BSP fitting will connect to most existing air supplies. Small Vortex Tubes are also supplied with a standard 1/8” BSP to 6mm push fit adapter
Adjustable

Control valve allows temperature adjustment
Manufactured in Stainless Steel

Hard wearing and suitable for many different environments
Small

Specifically designed for smaller applications that require less air flow. Small Vortex Tubes will also have lower air consumption.
Technical Characteristics
Dimensions (mm)

(L) 174.9mm x (H) 34.9mm
Images
Related Products
Vortex Tube

Product Code: A20000

Meech Stainless Steel Vortex Tubes convert compressed air into two airflows, one as low as 50°C below the inlet air temperature and one as high as 110°C.

View Product

Small Vortex Tube

Product Code: A21000

Like the medium version, the Meech Small Vortex Tube converts compressed air into two air flows, one very cold the other very hot. Temperature drops can be up to 50°C below the inlet compressed air temperature, whilst the hot air can be up to 50°C above the inlet air temperature.

Small Vortex Tubes are specially designed for smaller, more delicate applications that require less air flow. The Small Vortex Tube is supplied with either a yellow 8cfm high fraction generator, or a green 8cfm low fraction generator.



Features & Benefits
Innovative Design Provides both hot and cold air, which can be as much as 50°C above or below the air temperature
No Moving Parts No maintenance
Easy to Install Standard 1/8” BSP fitting will connect to most existing air supplies. Small Vortex Tubes are also supplied with a standard 1/8” BSP to 6mm push fit adapter
Adjustable Control valve allows temperature adjustment
Manufactured in Stainless Steel Hard wearing and suitable for many different environments
Small Specifically designed for smaller applications that require less air flow. Small Vortex Tubes will also have lower air consumption.

Technical Characteristics
Dimensions (mm) (L) 174.9mm x (H) 34.9mm

Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech offer a suitable Switchmode Power Adaptor for the Hyperion, 924IPSv2, 314IPS, 945IPS and 971IPS-30, 650QAC Bars and PulseDrive DC Controller.

The Switchmode Power Adaptor takes the local electricity supply and converts it into a stable and filtered 24V DC output. The adapter is very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

Mains cable end connector cable end options include, STRIP (stripped ends) ,UK (UK plug), EURO (Schuko plug), USA (USA plug).

For correct product code replace “XX” with one of the above options.

  Download
Technical Characteristics
Input Range

100 – 240V AC
Frequency

47 – 63 Hz
Input Current

0.4A Max
Maximum Power

15W
Output Voltage

24V DC
Output Current Max

Max 0.62A
Protection

Over voltage and over current protection
Dimensions LxWxD

38mm x 35mm x 90mm excluding cables
Input Connector & Cable Length

IEC 60320 C5 inlet. Cable length 2000mm
Output Connector & Cable Length

4 pole M8 Murr Connector. Cable length 2000mm
Operating Temperature

-25 – 70°C
Certification

Certification CE. UL.
Images
Must Haves

Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech offer a suitable Switchmode Power Adaptor for the Hyperion, 924IPSv2, 314IPS, 945IPS and 971IPS-30, 650QAC Bars and PulseDrive DC Controller.

The Switchmode Power Adaptor takes the local electricity supply and converts it into a stable and filtered 24V DC output. The adapter is very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

Mains cable end connector cable end options include, STRIP (stripped ends) ,UK (UK plug), EURO (Schuko plug), USA (USA plug).

For correct product code replace “XX” with one of the above options.



Technical Characteristics
Input Range 100 - 240V AC
Frequency 47 - 63 Hz
Input Current 0.4A Max
Maximum Power 15W
Output Voltage 24V DC
Output Current Max Max 0.62A
Protection Over voltage and over current protection
Dimensions LxWxD 38mm x 35mm x 90mm excluding cables
Input Connector & Cable Length IEC 60320 C5 inlet. Cable length 2000mm
Output Connector & Cable Length 4 pole M8 Murr Connector. Cable length 2000mm
Operating Temperature -25 - 70°C
Certification Certification CE. UL.

Hydra Splitters

Product Code: A994-HY-SPLIT

Hydra splitters are used in Hydra In Mould Label pinning systems to connect multiple Hydra distributors to a single high voltage generator. This is often required on injection mould tools with multiple impressions.

Simple screwed connections are easily made without the need for tools. This allows rapid reconnection of new pinning systems during tool changes.

The Hydra splitters are available in 2, 4, 6 and 8 way versions.

  Download
Features & Benefits
Dimensions

12mm (H) x 58mm (W) x Length (See Drawing)
Number Of Outputs

2, 4, 6 & 8 way versions available
Construction

PVC
Applications
Images
Documentation

Hyperion Static Control Range Brochure

Download

Meech Static Control Brochure

Download
Related Products
Hyperion 994CG – Compact Generator

Product Code: A994CG

The 994CG is designed for the IML market to meet the demand for a compact, lightweight generator to fit on the end of a robot arm.

View Product

Hydra Splitters

Product Code: A994-HY-SPLIT

Hydra splitters are used in Hydra In Mould Label pinning systems to connect multiple Hydra distributors to a single high voltage generator. This is often required on injection mould tools with multiple impressions.

Simple screwed connections are easily made without the need for tools. This allows rapid reconnection of new pinning systems during tool changes.

The Hydra splitters are available in 2, 4, 6 and 8 way versions.



Features & Benefits
Dimensions 12mm (H) x 58mm (W) x Length (See Drawing)
Number Of Outputs 2, 4, 6 & 8 way versions available
Construction PVC

924IPSv3 Short-Range Ionising Bar

Product Code: 924IPSv3

The Hyperion™ 924IPSv3 ionising bar features an integrated power supply for distances up to 200mm. Designed with full length ionisation, the 924IPSv3 will give full performance over it’s entire length and is the most compact pulsed DC bar available on the market.

Pure Titanium emitter pins with a rounded pin shape guarantee the highest level of performance and a long life. Hyperion™ 924IPSv3 integrates with our SmartControl Touch™ and BarMaster Programmer for adjustability of the output voltage, frequency and balance settings, giving the operator the ability to optimise performance for specific conditions. LED’s on the bar indicate status and whether the bar needs cleaning whilst dual alarm signals for PLC’s, buzzers and remote lamps will alert operators remotely to check the bar.

The 924IPSv3 replaces the 924IPSv2, our best-selling 24 V DC ionising bar, as part of our updates to the colours on our ionising bars. We have changed the colour of the endcaps to green and the colour of the extrusion to a darker grey so that they match our 945IPS bar.

The 924IPSv3 is also available in another version. See 924EX Short-Range Ionising Bar for hazardous areas.

  Download
Features & Benefits
Titanium Emitters

One of the best materials with extremely low wear rates for guaranteed long life.
Full Length Ionisation

100% performance over it’s entire length.
LED Status

LED’s indicate status of bar and and whether it needs cleaning.
Dual Alarm Signals

Dual alarm signals for PLC’s, buzzers and remote lamps.
Adjustable Settings

Adjustable voltage, frequency & balance output via BarMaster Programmer or SmartControl Touch™ , giving the operator the ability to optimise performance for specific applications.
Technical Characteristics
Construction

FR-ABS with pure Titanium emitters.
Dimensions

22.1mm x 31.2mm (W x H). Available lengths: 40mm increments between 240-3960mm.
Weight

0.5kg/m.
Output Voltage

Adjustable (3 to 7.5kV) via BarMaster  or SmartControl.
Output Frequency

Default setting: 20Hz, Adjustable via BarMaster  or SmartControl.
Output Balance

Default 54:46 Pos:Neg, adjustable via BarMaster  or SmartControl.
Dual Alarm Lines

2 signals available: ‘Alert’ and ‘Fault/Standby’. Both outputs are IEC 61131-2 type 1, 2 & 3 compatible. The fault/standby signal can also be adjusted via BarMaster  or SmartControl.). Tri-colour LEDs for local status indication including a cleaning alert.
Electrical Input

24V DC (21-27V). Maximum current required 0.5mA. M8 4-pin connector.
Mounting

‘T’ Slot with M4 x 35mm studs
Environmental

60°C. IP66.
Certification

CE and UL.
Applications
Documentation

Hyperion Static Control Range Brochure

Download

Meech Static Control Brochure

Download

924v2 Operating Manual

Download

A924IPS_assembly

Download

924IPSv2 UL Certificate

Download
Related Products
SmartControl Touch SmartControl™ Touch

Product Code: ASMARTCON-TOUCH-LAN

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Hyperion™ Feedback Sensor Feedback Sensor

Product Code: A900IPS-FBSEN-XX

View Product
Programmer BarMaster Programmer

Product Code: A900-BARMASTER-F

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product

924IPSv3 Short-Range Ionising Bar

Product Code: 924IPSv3

The Hyperion™ 924IPSv3 ionising bar features an integrated power supply for distances up to 200mm. Designed with full length ionisation, the 924IPSv3 will give full performance over it’s entire length and is the most compact pulsed DC bar available on the market.

Pure Titanium emitter pins with a rounded pin shape guarantee the highest level of performance and a long life. Hyperion™ 924IPSv3 integrates with our SmartControl Touch™ and BarMaster Programmer for adjustability of the output voltage, frequency and balance settings, giving the operator the ability to optimise performance for specific conditions. LED’s on the bar indicate status and whether the bar needs cleaning whilst dual alarm signals for PLC’s, buzzers and remote lamps will alert operators remotely to check the bar.

The 924IPSv3 replaces the 924IPSv2, our best-selling 24 V DC ionising bar, as part of our updates to the colours on our ionising bars. We have changed the colour of the endcaps to green and the colour of the extrusion to a darker grey so that they match our 945IPS bar.

The 924IPSv3 is also available in another version. See 924EX Short-Range Ionising Bar for hazardous areas.



Features & Benefits
Titanium Emitters One of the best materials with extremely low wear rates for guaranteed long life.
Full Length Ionisation 100% performance over it's entire length.
LED Status LED's indicate status of bar and and whether it needs cleaning.
Dual Alarm Signals Dual alarm signals for PLC's, buzzers and remote lamps.
Adjustable Settings Adjustable voltage, frequency & balance output via BarMaster Programmer or SmartControl Touch™ , giving the operator the ability to optimise performance for specific applications.

Technical Characteristics
Construction FR-ABS with pure Titanium emitters.
Dimensions 22.1mm x 31.2mm (W x H). Available lengths: 40mm increments between 240-3960mm.
Weight 0.5kg/m.
Output Voltage Adjustable (3 to 7.5kV) via BarMaster  or SmartControl.
Output Frequency Default setting: 20Hz, Adjustable via BarMaster  or SmartControl.
Output Balance Default 54:46 Pos:Neg, adjustable via BarMaster  or SmartControl.
Dual Alarm Lines 2 signals available: ‘Alert’ and ‘Fault/Standby'. Both outputs are IEC 61131-2 type 1, 2 & 3 compatible. The fault/standby signal can also be adjusted via BarMaster  or SmartControl.). Tri-colour LEDs for local status indication including a cleaning alert.
Electrical Input 24V DC (21-27V). Maximum current required 0.5mA. M8 4-pin connector.
Mounting  'T’ Slot with M4 x 35mm studs
Environmental 60°C. IP66.
Certification CE and UL.

261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

The 261v2 -1/4 Flexi Nozzle is designed for use with Meech Pulsed DC Controllers and is suitable for installation into machinery and equipment in both industrial and electronics environments. It is particularly suited to high speed applications such as sheet delivery systems.

The addition of flexible knuckle trunking enables the system to deliver ionised air with accuracy into “difficult to reach” places, where conventional systems would be ineffective or impossible to install.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.

  Download
Features & Benefits
Flexible knuckle trunking extension

Delivers ionisation precisely where it is needed. Effective in “difficult to reach” places
Adjustable balance and frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range
Rapid decay times

Very effective in high speed applications
Removable emitter pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life.
Low air consumption

Economical use of compressed air
“Stay put” knuckle trunking

Enables simple and quick installation
Small and compact

Easy to locate and install in confined spaces
Technical Characteristics
Air Fitting

1/4″ BSP inlet
Max Air Pressure Rating

100 Psi (7 bar)
Typical Pressure

20 to 40Psi (1.5 to 3 bar)
Emitter Pins

Machined titanium (7mm)
Decay Time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone

Less than 0.01 ppm
Input Voltage

+/- 9kV DC Nominal
Ion Balance

+/- 10V or better at set up
Noise Level (261v2 -32)

68 dBa (20 Psi at 1m) (1.5 bar)
Applications
Images
Documentation

Meech Static Control Brochure

Download

A261v2_32_FLEX_1_4

Download
Related Products
261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

View Product
261v2 Ion Nozzle

Product Code: A261v2-32

The 261v2 Ion Nozzle is a small, robust ioniser, suitable for installation into machinery and equipment used within industrial and cleanroom environments.

View Product
261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

The 261v2-1/4OUT Ion Nozzle is a small in-line ioniser. 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

View Product
261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures.

View Product
261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
200 Series Fixing Bracket

Product Code: 260-FIX

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

View Product

261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

The 261v2 -1/4 Flexi Nozzle is designed for use with Meech Pulsed DC Controllers and is suitable for installation into machinery and equipment in both industrial and electronics environments. It is particularly suited to high speed applications such as sheet delivery systems.

The addition of flexible knuckle trunking enables the system to deliver ionised air with accuracy into “difficult to reach” places, where conventional systems would be ineffective or impossible to install.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.



Features & Benefits
Flexible knuckle trunking extension Delivers ionisation precisely where it is needed. Effective in “difficult to reach” places
Adjustable balance and frequency (Pulsed DC Controller) Optimisation of performance and extended ionisation range
Rapid decay times Very effective in high speed applications
Removable emitter pins Easy to clean and replace. Minimum maintenance downtime and extended equipment life.
Low air consumption Economical use of compressed air
“Stay put” knuckle trunking Enables simple and quick installation
Small and compact Easy to locate and install in confined spaces

Technical Characteristics
Air Fitting 1/4" BSP inlet
Max Air Pressure Rating 100 Psi (7 bar)
Typical Pressure 20 to 40Psi (1.5 to 3 bar)
Emitter Pins Machined titanium (7mm)
Decay Time 0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone Less than 0.01 ppm
Input Voltage +/- 9kV DC Nominal
Ion Balance +/- 10V or better at set up
Noise Level (261v2 -32) 68 dBa (20 Psi at 1m) (1.5 bar)

261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

The 261v2 Flexi Nozzle is designed for use with Meech Pulsed DC Controllers, and is suitable for installation into machinery and equipment in both industrial and electronics environments.

It is particularly suited to high speed applications such as sheet delivery systems. The addition of flexible knuckle trunking enables the system to deliver ionised air with accuracy into “difficult to reach” places, where conventional systems would be ineffective or impossible to install.

It is powered by a Meech PulseDrive Pulsed DC Controller.

  Download
Features & Benefits
Flexible Knuckle Trunking Extension

Delivers ionisation precisely where it is needed. Effective in “difficult to reach” places
Adjustable Balance and Frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range
Rapid Decay Times

Very effective in high speed applications
Removable Emitter Pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low Air Consumption

Economical use of compressed air
“Stay put” Knuckle Trunking

Enables simple and quick installation
Small and Compact

Easy to locate and install in confined spaces
Technical Characteristics
Air Fitting

6mm diameter push fit
Max Air Pressure Rating

100 Psi (7 bar)
Typical Pressure

20 to 40Psi (1.5 to 3 bar)
Noise Level

68 dBa (20 Psi at 1m) (1.5 bar)
Emitter Pins

Machined Titanium (7mm)
Decay Time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone

Less than 0.01 ppm
Input Voltage

+/- 9kV DC Nominal
Ion Balance

+/- 10V or better at set up
Applications
Images
Documentation

Meech Static Control Brochure

Download

A261v2_32_FLEX

Download
Related Products
261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

View Product
261v2 Ion Nozzle

Product Code: A261v2-32

The 261v2 Ion Nozzle is a small, robust ioniser, suitable for installation into machinery and equipment used within industrial and cleanroom environments.

View Product
261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

The 261v2-1/4OUT Ion Nozzle is a small in-line ioniser. 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

View Product
261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures.

View Product
261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
200 Series Fixing Bracket

Product Code: 260-FIX

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

The 261v2 Flexi Nozzle is designed for use with Meech Pulsed DC Controllers, and is suitable for installation into machinery and equipment in both industrial and electronics environments.

It is particularly suited to high speed applications such as sheet delivery systems. The addition of flexible knuckle trunking enables the system to deliver ionised air with accuracy into “difficult to reach” places, where conventional systems would be ineffective or impossible to install.

It is powered by a Meech PulseDrive Pulsed DC Controller.



Features & Benefits
Flexible Knuckle Trunking Extension Delivers ionisation precisely where it is needed. Effective in “difficult to reach” places
Adjustable Balance and Frequency (Pulsed DC Controller) Optimisation of performance and extended ionisation range
Rapid Decay Times Very effective in high speed applications
Removable Emitter Pins Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low Air Consumption Economical use of compressed air
“Stay put” Knuckle Trunking Enables simple and quick installation
Small and Compact Easy to locate and install in confined spaces

Technical Characteristics
Air Fitting 6mm diameter push fit
Max Air Pressure Rating 100 Psi (7 bar)
Typical Pressure 20 to 40Psi (1.5 to 3 bar)
Noise Level 68 dBa (20 Psi at 1m) (1.5 bar)
Emitter Pins Machined Titanium (7mm)
Decay Time 0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone Less than 0.01 ppm
Input Voltage +/- 9kV DC Nominal
Ion Balance +/- 10V or better at set up

261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures. Compressed air is connected using the 6mm push-fit inlet fitting. The nozzle is mounted through the wall of the duct or enclosure using a threaded boss, pushed through from the inside of the duct.

The nozzle is frequently used to neutralise materials in air-conveying systems to prevent blockages.

It is powered by a Meech PulseDrive Pulsed DC Controller.

  Download
Features & Benefits
Adjustable Balance and Frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range
Rapid Decay Times

Very effective in high speed applications
Removable Emitter Pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low air Consumption

Economical use of compressed air
Small and Compact

Easy to locate and install in confined spaces
Technical Characteristics
Inlet

6mm Inlet
Outlet

Bulkhead fitting on outlet
Body

PTFE
Length

74mm
Diameter

32mm
Weight

0.06kg (Without bracket)
Max Air Pressure Rating

100Psi (7 bar)
Typical Pressure

7 to 40Psi (0.5 to 3 bar)
Emitter Pins

Machined titanium (7mm)
Decay Time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone

Less than 0.01 ppm
Input Voltage

+/- 9kV DC Nominal
Ion Balance

+/- 10V or better at set up
Applications
Images
Documentation

Meech Static Control Brochure

Download

A261v2_32_BulkHead

Download
Related Products
261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

View Product
261v2 Ion Nozzle

Product Code: A261v2-32

The 261v2 Ion Nozzle is a small, robust ioniser, suitable for installation into machinery and equipment used within industrial and cleanroom environments.

View Product
261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

The 261v2-1/4OUT Ion Nozzle is a small in-line ioniser. 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

View Product
261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

View Product
261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures. Compressed air is connected using the 6mm push-fit inlet fitting. The nozzle is mounted through the wall of the duct or enclosure using a threaded boss, pushed through from the inside of the duct.

The nozzle is frequently used to neutralise materials in air-conveying systems to prevent blockages.

It is powered by a Meech PulseDrive Pulsed DC Controller.



Features & Benefits
Adjustable Balance and Frequency (Pulsed DC Controller) Optimisation of performance and extended ionisation range
Rapid Decay Times Very effective in high speed applications
Removable Emitter Pins Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low air Consumption Economical use of compressed air
Small and Compact Easy to locate and install in confined spaces

Technical Characteristics
Inlet 6mm Inlet
Outlet Bulkhead fitting on outlet
Body PTFE
Length 74mm
Diameter 32mm
Weight 0.06kg (Without bracket)
Max Air Pressure Rating 100Psi (7 bar)
Typical Pressure 7 to 40Psi (0.5 to 3 bar)
Emitter Pins Machined titanium (7mm)
Decay Time 0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone Less than 0.01 ppm
Input Voltage +/- 9kV DC Nominal
Ion Balance +/- 10V or better at set up

261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

Meech’s Model 261v2-1/4OUT Ion Nozzle is a small, robust in-line ioniser. A 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

When used in automated cleaning machinery, the 261v2-1/4OUT ionises the airflow that is then used to clean and neutralise containers and components.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.

  Download
Features & Benefits
Adjustable balance and frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range
Rapid decay times

Very effective in high speed applications
Removable emitter pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low air consumption

Economical use of compressed air
Small and compact

Easy to locate and install in confined spaces
Technical Characteristics
Inlet

6mm Inlet
Outlet

1/4″ BSP Outlet
Body

PTFE
Length

74mm
Diameter

32mm
Weight

0.06kg (Without bracket)
Max Air Pressue Rating

100 Psi (7 bar)
Typical Pressure

20 to 40Psi (1.5 to 3 bar)
Emitter Pins

Machined titanium (7mm)
Decay Time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone

Less than 0.01 ppm
Input Voltage

+/- 9kV DC Nominal
Ion Balance

+/- 10V or better at set up
Images
Documentation

Meech Static Control Brochure

Download

A261v2_32_1_4_OUT

Download
Related Products
261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

View Product
261v2 Ion Nozzle

Product Code: A261v2-32

The 261v2 Ion Nozzle is a small, robust ioniser, suitable for installation into machinery and equipment used within industrial and cleanroom environments.

View Product
261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures.

View Product
261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

View Product
261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
200 Series Fixing Bracket

Product Code: 260-FIX

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

Meech’s Model 261v2-1/4OUT Ion Nozzle is a small, robust in-line ioniser. A 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

When used in automated cleaning machinery, the 261v2-1/4OUT ionises the airflow that is then used to clean and neutralise containers and components.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.



Features & Benefits
Adjustable balance and frequency (Pulsed DC Controller) Optimisation of performance and extended ionisation range
Rapid decay times Very effective in high speed applications
Removable emitter pins Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low air consumption Economical use of compressed air
Small and compact Easy to locate and install in confined spaces

Technical Characteristics
Inlet 6mm Inlet
Outlet 1/4" BSP Outlet
Body PTFE
Length 74mm
Diameter 32mm
Weight 0.06kg (Without bracket)
Max Air Pressue Rating 100 Psi (7 bar)
Typical Pressure 20 to 40Psi (1.5 to 3 bar)
Emitter Pins Machined titanium (7mm)
Decay Time 0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone Less than 0.01 ppm
Input Voltage +/- 9kV DC Nominal
Ion Balance +/- 10V or better at set up

261v2 Ion Nozzle

Product Code: A261v2-32

Meech’s Model 261v2 Ion Nozzle is a small, robust ioniser. It is suitable for installation into machinery and equipment used within industrial and cleanroom environments; providing fast static control and excellent dust removal.  It is quick to install, using the optional mounting bracket. It is safe to use and meets OSHA dead-end pressure requirements.

It is powered by a Meech PulseDrive Pulsed DC Controller.

  Download
Features & Benefits
Adjustable Balance and Frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range
Rapid Decay Times

Very effective in high speed applications
Removable Emitter Pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low Air Consumption

Economical use of compressed air
Small and Compact

Easy to locate and install in confined spaces
Technical Characteristics
Body

PTFE
Length

74mm
Diameter

32mm
Weight

0.06 kg (Without bracket)
Max Air Pressure Rating

100Psi (7 bar)
Typical Pressure

20 to 40Psi (1.5 to 3 Bar)
Noise Level

68 dBa (20 Psi at 1m) (1.5 bar)
Emitter Pins

Machined titanium (7mm)
Decay Time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone

Less than 0.01 ppm
Input Voltage

+/- 9kV DC Nominal
Ion Balance

+/- 10V or better at set up
Applications
Images
Documentation

Meech Static Control Brochure

Download

261v2 Operating Manual

Download

A261v2_32

Download
Related Products
261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

View Product
261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

The 261v2-1/4OUT Ion Nozzle is a small in-line ioniser. 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

View Product
261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures.

View Product
261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

View Product
261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
200 Series Fixing Bracket

Product Code: 260-FIX

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

261v2 Ion Nozzle

Product Code: A261v2-32

Meech’s Model 261v2 Ion Nozzle is a small, robust ioniser. It is suitable for installation into machinery and equipment used within industrial and cleanroom environments; providing fast static control and excellent dust removal.  It is quick to install, using the optional mounting bracket. It is safe to use and meets OSHA dead-end pressure requirements.

It is powered by a Meech PulseDrive Pulsed DC Controller.



Features & Benefits
Adjustable Balance and Frequency (Pulsed DC Controller) Optimisation of performance and extended ionisation range
Rapid Decay Times Very effective in high speed applications
Removable Emitter Pins Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low Air Consumption Economical use of compressed air
Small and Compact Easy to locate and install in confined spaces

Technical Characteristics
Body PTFE
Length 74mm
Diameter 32mm
Weight 0.06 kg (Without bracket)
Max Air Pressure Rating 100Psi (7 bar)
Typical Pressure 20 to 40Psi (1.5 to 3 Bar)
Noise Level 68 dBa (20 Psi at 1m) (1.5 bar)
Emitter Pins Machined titanium (7mm)
Decay Time 0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Ozone Less than 0.01 ppm
Input Voltage +/- 9kV DC Nominal
Ion Balance +/- 10V or better at set up

261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

When used in automated cleaning machinery, the 261v2-1/4 ionises the airflow that is then used to clean and neutralise containers and components.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.

  Download
Features & Benefits
Adjustable balance and frequency (Pulsed DC Controller)

Optimisation of performance and extended ionisation range
Rapid decay times

Very effective in high speed applications
Removable emitter pins

Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low air consumption

Economical use of compressed air
Small and compact

Easy to locate and install in confined spaces
Technical Characteristics
Inlet

1/4″ BSP Inlet
Outlet

1/4″ BSP Outlet
Weight

0.06 kg (without bracket)
Emitter Pins

Machined titanium (7mm)
Length

74mm
Max air pressure rating

100 Psi (7 bar)
Body

PTFE
Ozone

Less than 0.01 ppm
Ion balance

+/- 10V or better at set up
Diameter

32mm
Typical pressure

20 to 40Psi (1.5 to 3 bar)
Input voltage

+/- 9kV DC nominal
Decay time

0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)
Images
Documentation

Meech Static Control Brochure

Download

A261v2_32_1_4

Download
Related Products
261v2 Ion Nozzle

Product Code: A261v2-32

The 261v2 Ion Nozzle is a small, robust ioniser, suitable for installation into machinery and equipment used within industrial and cleanroom environments.

View Product
261v2-¼OUT Ion Nozzle

Product Code: A261V2-32-1/4OUT

The 261v2-1/4OUT Ion Nozzle is a small in-line ioniser. 6mm push–fit connection and ¼” bsp outlet connection allow integration into existing plastic pipe work.

View Product
261v2 – BULKHEAD Ion Nozzle

Product Code: A261V2-32-BULKHEAD

Meech’s Model 261v2-Bulkhead Nozzle provides an easy way to inject ionised air into ducting or enclosures.

View Product
261v2 Flexi Nozzle

Product Code: A261V2-32-FLEX

The Meech Model 261v2 Flexi Nozzle is a small, lightweight ioniser with a 6mm push-fit inlet and an outlet extended by flexible knuckle trunking.

View Product
261v2-¼ Flexi Nozzle

Product Code: A261V2-32-FLEX-1/4

The Meech Model 261v2 -1/4 Flexi Nozzle is a small, lightweight ioniser with a ¼”bsp inlet and an outlet extended by flexible knuckle trunking.

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
200 Series Fixing Bracket

Product Code: 260-FIX

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

261v2-¼ Ion Nozzle

Product Code: A261V2-32-1/4

Meech’s Model 261v2-1/4 Ion Nozzle is a small, robust in-line ioniser.  ¼” bsp connections allow integration into existing plastic pipe work.

When used in automated cleaning machinery, the 261v2-1/4 ionises the airflow that is then used to clean and neutralise containers and components.

It is powered by a Meech Model 233v3, 977CM or 977v3 Pulsed DC Controller.



Features & Benefits
Adjustable balance and frequency (Pulsed DC Controller) Optimisation of performance and extended ionisation range
Rapid decay times Very effective in high speed applications
Removable emitter pins Easy to clean and replace. Minimum maintenance downtime and extended equipment life
Low air consumption Economical use of compressed air
Small and compact Easy to locate and install in confined spaces

Technical Characteristics
Inlet 1/4" BSP Inlet
Outlet 1/4" BSP Outlet
Weight 0.06 kg (without bracket)
Emitter Pins Machined titanium (7mm)
Length 74mm
Max air pressure rating 100 Psi (7 bar)
Body PTFE
Ozone Less than 0.01 ppm
Ion balance +/- 10V or better at set up
Diameter 32mm
Typical pressure 20 to 40Psi (1.5 to 3 bar)
Input voltage +/- 9kV DC nominal
Decay time 0.8 sec at 150mm at 30 Psi (2 bar) (1000V to 100V)

AHUv3 Compact – 2 Pump

Product Code: A-AHUV3-2PUMP

The AHUv3 Compact provides the positive pressure and vacuum pressure airflows and houses the system filters. The AHUv3 Compact is a 2 pump unit designed predominantly for narrow web applications of up to 600mm.

  Download
Features & Benefits
Touch Screen

Clear visual representation of the system status: vacuum target pressures and vacuum and positive pressures
Digitally Set Target Vacuum Pressure

Digital adjustments of 0.1kPa increments, for fast and accurate setup
Automatic Vacuum Pressure Control

System will clean effectively for the full life of the filters
Local / Remote Mode

Option of manual input or interlocked system
Control Lock

Option to password protect touch screen to ensure settings
Technical Characteristics
Output

2.2kW
Capacity

733 m³/hr
Weight

70kg
Noise Level

69dBa
Full Load Current @ 400V

Neutral = 11.3A, Line = 8.1A
Electrical Supply

200- 440V 3ph 50/60Hz
Size

Height 925mm x Depth 450mm x Width 450mm
Full Load Current @ 200V

Line = 17A
Exhauster

Turbine Fan
Filters

Bag – Efficiency F8 – 90-95% @ 0.4μ
HEPA – Efficiency H14 – 99.997% @ 0.3μ
Inline – Efficiency F8 – 90-95% @ 0.4μ
Stainless Steel

Grade 430
Environmental Operating Range: Temperature

+5°C to +40°C
Environmental Operating Range: Humidity

Max 80% RH up to 31°C To Max 50% RH at 40°C
Environmental Operating Range: Altitude

Below 2000m
Environmental Operating Range: Pullution Degree

2
Applications
Images
Documentation

Web Cleaning Overview Brochure

Download
Related Products
AHUv3 Standard – 3 Pump or 6 Pump

Product Code: A-AHUV3-3PUMP/6PUMP

The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.

View Product
Must Haves
CyClean™ Non-Contact Web Cleaning System

Product Code: CyClean

The Meech CyClean™ web cleaning system is optimised to remove and extract contamination to below 1 micron.

View Product
CyClean™-R Narrow Web Non-Contact Web Cleaning System

Product Code: CyClean-R Narrow

CyClean-R is a non-contact web cleaning system, designed for narrow webs running in low tension.

View Product
VacClean™ Contact Web Cleaning System

Product Code: VacClean™

Meech VacClean™ contact web cleaning system incorporates an enhanced contact cleaning manifold with either an Air Handling Unit (AHU) or vacuum fan unit.

View Product
RoClean™ Contact Web Cleaner

Product Code: RoClean

RoClean is the latest contact web cleaner from Meech, delivering excellent surface cleaning results for the battery film manufacturing industry as well as other applications demanding exceptional cleaning standards.

View Product

AHUv3 Compact – 2 Pump

Product Code: A-AHUV3-2PUMP

The AHUv3 Compact provides the positive pressure and vacuum pressure airflows and houses the system filters. The AHUv3 Compact is a 2 pump unit designed predominantly for narrow web applications of up to 600mm.



Features & Benefits
Touch Screen Clear visual representation of the system status: vacuum target pressures and vacuum and positive pressures
Digitally Set Target Vacuum Pressure Digital adjustments of 0.1kPa increments, for fast and accurate setup
Automatic Vacuum Pressure Control System will clean effectively for the full life of the filters
Local / Remote Mode Option of manual input or interlocked system
Control Lock Option to password protect touch screen to ensure settings

Technical Characteristics
Output 2.2kW
Capacity 733 m³/hr
Weight 70kg
Noise Level 69dBa
Full Load Current @ 400V Neutral = 11.3A, Line = 8.1A
Electrical Supply 200- 440V 3ph 50/60Hz
Size Height 925mm x Depth 450mm x Width 450mm
Full Load Current @ 200V Line = 17A
Exhauster Turbine Fan
Filters Bag - Efficiency F8 - 90-95% @ 0.4μ HEPA - Efficiency H14 - 99.997% @ 0.3μ Inline - Efficiency F8 - 90-95% @ 0.4μ
Stainless Steel Grade 430
Environmental Operating Range: Temperature +5°C to +40°C
Environmental Operating Range: Humidity Max 80% RH up to 31°C To Max 50% RH at 40°C
Environmental Operating Range: Altitude Below 2000m
Environmental Operating Range: Pullution Degree 2

AHUv3 Standard – 3 Pump or 6 Pump

Product Code: A-AHUV3-3PUMP/6PUMP

The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.

  Download
Features & Benefits
Touch Screen

Clear visual representation of the system status: vacuum target pressures and vacuum and positive pressures
Digitally Set Target Vacuum Pressure

Digital adjustments of 0.1kPa increments, for fast and accurate setup
Automatic Vacuum Pressure Control

System will clean effectively for the full life of the filters
Local / Remote Mode

Option of manual input or interlocked system
Control Lock

Option to password protect touch screen to ensure settings
Technical Characteristics
Output

3 Pump Unit: 3.3kW    /    6 Pump Unit: 6.6kW
Capacity

3 Pump Unit: 1100 m³/hr    /    6 Pump Unit: 2200 m³/hr
Weight

3 Pump Unit: 95kg    /    6 Pump Unit: 105kg
Noise Level

3 Pump Unit: 72dBa    /    6 Pump Unit: 78dBa
Electrical Supply

200- 440V 3ph 50/60Hz
Size

Height 925mm x Depth 750mm x Width 750mm
Exhauster

Turbine Fan
Stainless Steel

Grade 430
Enviromental Operating Range: Temperature

+5°C to +40°C
Environmental Operating Range: Humidity

Max 80% RH up to 31°C To Max 50% RH at 40°C
Enrironmental Operating Range: Altitude

Below 2000m
Environmental Operating Range: Pullution Degree

2
Filters

Bag – Efficiency F8 – 90-95% @ 0.4μ
HEPA – Efficiency H14 – 99.997% @ 0.3μ
Inline – Efficiency F8 – 90-95% @ 0.4μ
Full Load Current @ 400V

3 Pump Unit: Neutral = 11.5A, Line = 6.9A
6 Pump Unit: Neutral = 23A, Line = 13.8A
Full Load Current @ 200V

3 Pump Unit: Line = 12.5A
6 Pump Unit: Line = 25A
Applications
Images
Related Products
AHUv3 Compact – 2 Pump

Product Code: A-AHUV3-2PUMP

The AHUv3 Compact provides the positive pressure and vacuum pressure airflows and houses the system filters. The AHUv3 Compact is a 2 pump unit designed predominantly for narrow web applications of up to 600mm.

View Product
Must Haves
CyClean™-R Mid Web Non-Contact Web Cleaning System

Product Code: CyClean-R Mid

CyClean-R is a non-contact web cleaning system, designed for mid webs running in low tension.

View Product
CyClean™-R Wide Web Non-Contact Web Cleaning System

Product Code: CyClean-R Wide

CyClean-R is a non-contact web cleaning system, designed for wide webs running in low tension.

View Product
CyClean™ Non-Contact Web Cleaning System

Product Code: CyClean

The Meech CyClean™ web cleaning system is optimised to remove and extract contamination to below 1 micron.

View Product
VacClean™ Contact Web Cleaning System

Product Code: VacClean™

Meech VacClean™ contact web cleaning system incorporates an enhanced contact cleaning manifold with either an Air Handling Unit (AHU) or vacuum fan unit.

View Product
RoClean™ Contact Web Cleaner

Product Code: RoClean

RoClean is the latest contact web cleaner from Meech, delivering excellent surface cleaning results for the battery film manufacturing industry as well as other applications demanding exceptional cleaning standards.

View Product

AHUv3 Standard – 3 Pump or 6 Pump

Product Code: A-AHUV3-3PUMP/6PUMP

The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.



Features & Benefits
Touch Screen Clear visual representation of the system status: vacuum target pressures and vacuum and positive pressures
Digitally Set Target Vacuum Pressure Digital adjustments of 0.1kPa increments, for fast and accurate setup
Automatic Vacuum Pressure Control System will clean effectively for the full life of the filters
Local / Remote Mode Option of manual input or interlocked system
Control Lock Option to password protect touch screen to ensure settings

Technical Characteristics
Output 3 Pump Unit: 3.3kW    /    6 Pump Unit: 6.6kW
Capacity 3 Pump Unit: 1100 m³/hr    /    6 Pump Unit: 2200 m³/hr
Weight 3 Pump Unit: 95kg    /    6 Pump Unit: 105kg
Noise Level 3 Pump Unit: 72dBa    /    6 Pump Unit: 78dBa
Electrical Supply 200- 440V 3ph 50/60Hz
Size Height 925mm x Depth 750mm x Width 750mm
Exhauster Turbine Fan
Stainless Steel Grade 430
Enviromental Operating Range: Temperature +5°C to +40°C
Environmental Operating Range: Humidity Max 80% RH up to 31°C To Max 50% RH at 40°C
Enrironmental Operating Range: Altitude Below 2000m
Environmental Operating Range: Pullution Degree 2
Filters Bag - Efficiency F8 - 90-95% @ 0.4μ HEPA - Efficiency H14 - 99.997% @ 0.3μ Inline - Efficiency F8 - 90-95% @ 0.4μ
Full Load Current @ 400V 3 Pump Unit: Neutral = 11.5A, Line = 6.9A 6 Pump Unit: Neutral = 23A, Line = 13.8A
Full Load Current @ 200V 3 Pump Unit: Line = 12.5A 6 Pump Unit: Line = 25A

BarMaster Programmer

Product Code: A900-BARMASTER-F

The BarMaster Programmer, part of our latest, revolutionary Hyperion™ range, brings another level of static control. It features a control unit with an LCD screen that provides information from a connected Hyperion™ product so operators can easily change and monitor status and parameters. The hand-held programmer is portable and temporarily connects inline with the 24V power supply directly to a Hyperion™ device, removing the need for extra cables. This allows operators to move easily between devices and simplifies the connection. Once programming is complete, operators disconnect the BarMaster Programmer. When they re-power the Hyperion™ device, it operates with the new programmed settings.

The port on the Programmer supports the connection of any current or future Hyperion™ product, ensuring a future-proof solution for your static control setup.

  Download
Features & Benefits
Universal

Connection and adjustment of any Hyperion™ product.
Balance Adjustment

A balanced output can be adjusted for the most rapid static control in demanding applications or for the best balance on sensitive applications.
Hand-Held

Portable and easy to carry around.
Clean Pin Alert

Indicates operational status, can be changed to suit the demands of the application.
Output Frequency Adjustment

Adjustable for different operating distances and better performance.
Future Proof

The BarMaster has been designed to be compatible with current and future Hyperion™ products.
Technical Characteristics
Construction

ABS housing.
Input Connection

4-pin M8 connector.
Dimensions

81mm x 143mm x 24.5mm
Cable Length

2000mm
Input Voltage

24VDC
Documentation

Hyperion™ Static Control Range Brochure

Download
Related Products
SmartControl Touch SmartControl™ Touch

Product Code: ASMARTCON-TOUCH-LAN

View Product

BarMaster Programmer

Product Code: A900-BARMASTER-F

The BarMaster Programmer, part of our latest, revolutionary Hyperion™ range, brings another level of static control. It features a control unit with an LCD screen that provides information from a connected Hyperion™ product so operators can easily change and monitor status and parameters. The hand-held programmer is portable and temporarily connects inline with the 24V power supply directly to a Hyperion™ device, removing the need for extra cables. This allows operators to move easily between devices and simplifies the connection. Once programming is complete, operators disconnect the BarMaster Programmer. When they re-power the Hyperion™ device, it operates with the new programmed settings.

The port on the Programmer supports the connection of any current or future Hyperion™ product, ensuring a future-proof solution for your static control setup.



Features & Benefits
Universal Connection and adjustment of any Hyperion™ product.
Balance Adjustment A balanced output can be adjusted for the most rapid static control in demanding applications or for the best balance on sensitive applications.
Hand-Held Portable and easy to carry around.
Clean Pin Alert Indicates operational status, can be changed to suit the demands of the application.
Output Frequency Adjustment Adjustable for different operating distances and better performance.
Future Proof The BarMaster has been designed to be compatible with current and future Hyperion™ products.

Technical Characteristics
Construction ABS housing.
Input Connection 4-pin M8 connector.
Dimensions 81mm x 143mm x 24.5mm
Cable Length 2000mm
Input Voltage 24VDC

Experimental Kit

Product Code: A20300

The Meech Experimental Kit incorporates a Meech Vortex Tube with a Cold End Silencer and a length of flexible knuckle trunking which can be used to direct the cold air flow. The Medium Experimental Kit includes all 8 generators, allowing for the most flexible temperature and air consumption, perfect for applications that require different cold air temperatures.

A Small Experimental Kit is also available and includes the Green and Yellow 10 CFM Generators. This uses a small Vortex Tube.

  Download
Features & Benefits
No Moving Parts

Virtually no maintenance
Available in 2 Sizes

Suitable for a range of applications
Runs Only on Compressed Air

No electricity costs
Stainless Steel Construction

Hard wearing
Technical Characteristics
Compact and Lightweight

Overall length – Medium 272mm
Overall length – Small 239mm
Versatile Temperature Control

Supplied with all 8 generators (Small Experimental Kit includes Yellow and Green 10cfm Generators).
Directional Cold Air Flow

Knuckle trunking provided
Reduced Noise Operation

Silencer provided
Images
Documentation

Meech Air Technology - Vortex Cooling Range Brochure

Download

Experimental_Kits

Download
Related Products
Coldstream Air Gun

Product Code: A60000

Coldstream Air Guns from Meech Air Technology provide a cold airflow that is commonly used for spot cooling.

View Product

Experimental Kit

Product Code: A20300

The Meech Experimental Kit incorporates a Meech Vortex Tube with a Cold End Silencer and a length of flexible knuckle trunking which can be used to direct the cold air flow. The Medium Experimental Kit includes all 8 generators, allowing for the most flexible temperature and air consumption, perfect for applications that require different cold air temperatures.

A Small Experimental Kit is also available and includes the Green and Yellow 10 CFM Generators. This uses a small Vortex Tube.



Features & Benefits
No Moving Parts Virtually no maintenance
Available in 2 Sizes Suitable for a range of applications
Runs Only on Compressed Air No electricity costs
Stainless Steel Construction Hard wearing

Technical Characteristics
Compact and Lightweight Overall length - Medium 272mm  Overall length - Small 239mm
Versatile Temperature Control Supplied with all 8 generators (Small Experimental Kit includes Yellow and Green 10cfm Generators).
Directional Cold Air Flow Knuckle trunking provided
Reduced Noise Operation Silencer provided

Adhesive Rolls

Product Code:

The quality and performance of the adhesive rolls in any elastomer based web cleaning system is vital to achieve the best levels of contamination removal.

Meech adhesive rolls are manufactured from a moisture stabilised paper base with a release coating to ensure easy unwinding. The paper is coated with an adhesive coating which is specially formulated to work effectively with TransTak elastomer rollers. Meech adhesive rollers have a high adhesive mass, the result of which is longer and more effective cleaning.

Meech adhesive rolls are a continuous roll of 22.4 metres of material with perforations in set positions along the length. The positioning of the perforations gives 70 easily removable (tear off) sections.

  Download
Features & Benefits
A knife is not required to cut the material

Improved operator safety and no risk of damage to the elastomer rollers.
No wasted adhesive material

The operator only removes a pre-specified length of adhesive roll material.
Technical Characteristics
Material

Paper
Coatweight

High; accurately controlled
Core size

76mm / 3″
Core material

High impact polystyrene
Perforations

Roll is perforated into 70 removable sections
Total material length

22.4 meters per roll
Available widths

Any roll width up to 1500mm
Images
Must Haves
TakClean™ Contact Web Cleaning System

Product Code: TakClean™

Meech TakClean™ contact web cleaning system is primarily used in the label and narrow web markets to remove dry, unbonded contamination from a moving web.

View Product

Adhesive Rolls

Product Code:

The quality and performance of the adhesive rolls in any elastomer based web cleaning system is vital to achieve the best levels of contamination removal.

Meech adhesive rolls are manufactured from a moisture stabilised paper base with a release coating to ensure easy unwinding. The paper is coated with an adhesive coating which is specially formulated to work effectively with TransTak elastomer rollers. Meech adhesive rollers have a high adhesive mass, the result of which is longer and more effective cleaning.

Meech adhesive rolls are a continuous roll of 22.4 metres of material with perforations in set positions along the length. The positioning of the perforations gives 70 easily removable (tear off) sections.



Features & Benefits
A knife is not required to cut the material Improved operator safety and no risk of damage to the elastomer rollers.
No wasted adhesive material The operator only removes a pre-specified length of adhesive roll material.

Technical Characteristics
Material Paper
Coatweight High; accurately controlled
Core size 76mm / 3"
Core material High impact polystyrene
Perforations Roll is perforated into 70 removable sections
Total material length 22.4 meters per roll
Available widths Any roll width up to 1500mm

914EX Short-Range Ionising Bar

Product Code: A914EX-XXXX

The 914EX Short-Range Ionising Bar is an exceptional static eliminator with ATEX certification, which ensures equipment is reliable and safe for use in zone 1, gas group IIA applications.

The 914EX features resistively coupled Titanium emitters for shockless operation and maximum safety, whilst giving long-lasting optimal ionisation efficiency and performance. It has an operating range of up to 100mm for short-range applications and is designed to operate with our Hyperion™ 906HL Power Unit. The 914EX Short-Range Ionising Bar certification covers hazardous locations across a wide range of industrial processes and industries worldwide.

  Download
Features & Benefits
Shockless Titanium Emitters

Resistively coupled emitters for shockless operation and maximum safety.
Operating Current

Less than 5 mA.
Sharp Titanium Emitters

For long-lasting optimal ionisation efficiency and performance.
Powerful Ion Production

Very fast decay times and effective at faster web speeds.
Operating Range

Up to 100mm.
Small Cross-Section

Suitable for installations where space is limited.
Technical Characteristics
Construction

Anodised aluminium outer, PVC extruded liner and resin potted components.
EX Zone Characteristics

II 2G IIA T4 Gb Ta = -20°C to +30°C.
Dimensions

15mm x 18mm (W x H) Available lengths: from 80 to 4000mm.
Environmental

30°C max.
Cable

5m of cable in flexible conduit is standard, longer lengths can be specified at time of order. Please check that 5m is sufficient to reach the power unit outside of the EX Zone.
Output Voltage

5.0kV.
Weight

Approximately 400 grams per metre.
Certifications

CE, UL and ATEX certified for use in hazardous areas.
Safety

Resistively coupled emitters for shockless operation.
Mounting

‘T’-slide with M4 x 20mm studs.
Applications
Documentation

914EX ATEX Certificate

Download

Meech Static Control Brochure

Download

914EX Operating Manual

Download

914EX Assembly

Download

914EX UL Certificate

Download
Related Products
914 Ionising Bar 914 Short-Range Ionising Bar

Product Code: A914-XXXX

View Product
Must Haves
906HL 5kV Power Unit

Product Code: A906HL-5kV

View Product

914EX Short-Range Ionising Bar

Product Code: A914EX-XXXX

The 914EX Short-Range Ionising Bar is an exceptional static eliminator with ATEX certification, which ensures equipment is reliable and safe for use in zone 1, gas group IIA applications.

The 914EX features resistively coupled Titanium emitters for shockless operation and maximum safety, whilst giving long-lasting optimal ionisation efficiency and performance. It has an operating range of up to 100mm for short-range applications and is designed to operate with our Hyperion™ 906HL Power Unit. The 914EX Short-Range Ionising Bar certification covers hazardous locations across a wide range of industrial processes and industries worldwide.



Features & Benefits
Shockless Titanium Emitters Resistively coupled emitters for shockless operation and maximum safety.
Operating Current Less than 5 mA.
Sharp Titanium Emitters For long-lasting optimal ionisation efficiency and performance.
Powerful Ion Production Very fast decay times and effective at faster web speeds.
Operating Range Up to 100mm.
Small Cross-Section Suitable for installations where space is limited.

Technical Characteristics
Construction Anodised aluminium outer, PVC extruded liner and resin potted components.
EX Zone Characteristics II 2G IIA T4 Gb Ta = -20°C to +30°C.
Dimensions 15mm x 18mm (W x H) Available lengths: from 80 to 4000mm.
Environmental 30°C max.
Cable 5m of cable in flexible conduit is standard, longer lengths can be specified at time of order. Please check that 5m is sufficient to reach the power unit outside of the EX Zone.
Output Voltage 5.0kV.
Weight Approximately 400 grams per metre.
Certifications CE, UL and ATEX certified for use in hazardous areas.
Safety Resistively coupled emitters for shockless operation.
Mounting ‘T’-slide with M4 x 20mm studs.

CyClean™ Non-Contact Web Cleaning System

Product Code: CyClean

The Meech CyClean™ has been designed in response to increased demand for a compact, high performance, non-contact web cleaning system.

Through the application of advanced computational fluid dynamics, Meech has optimised the cleaning efficiency of CyClean to remove and extract contamination to below 1 micron.

A CyClean system comprises three main components; the cleaning head, active static control and an Air Handling Unit (AHU).

For further information on our CyClean™ Non-Contact Web Cleaning System and to learn how it works, click on the video tab below.

View related article “Xeikon partners with Meech and invests in CyClean non-contact web cleaning system”

  Download
Features & Benefits
Non Contact Cleaning

Eliminates risk of surface marking and damage. No interference with web tension or web tracking.
Compact Design

Flexible positioning & easy installation.
Integrated static control

Neutralises static charges to optimise cleaning performance and prevent re-contamination.
Unique 'fixed ports' System

The ducting connections to the cleaning head remain stationary, resulting in easier installation.
Air Balancing

Allows complete control of the bias between blowing and vacuum airflows.
Auto Airflow Adjustment

Reduces the frequency of required operator adjustments.
Hinged, Clam Shell Design

Allows unit to open for easy threading of the web.
No Consumable Items

Lower ongoing costs
Quiet Operation

Can be installed in enclosed work areas. No H&S issues due to noise.
Technical Characteristics
Maximum Web Speed (web driven)

600 mtrs/min, 1968 ft/min
Maximum Web Width

up to 2000mm, 78″
Duct Connections

Fixed position 6 x 40mm Ø OD
Static Control (active)

4 x 914 AC bars
Mounting

4 x M8 x 16mm holes
Standard Opening

Manual with gas strut and end hinges
Optional Opening

Pneumatic
Applications
Images
Videos
Documentation

Web Cleaning Overview Brochure

Download
Related Products
CyClean™-R Narrow Web Non-Contact Web Cleaning System

Product Code: CyClean-R Narrow

CyClean-R is a non-contact web cleaning system, designed for narrow webs running in low tension.

View Product
Must Haves
AHUv3 Mini – 1 Pump

Product Code: A-AHUV3-1PUMP

The AHUv3 Mini – 1 Pump provides the positive pressure and vacuum pressure airflows and houses the system filters.

View Product
AHUv3 Compact – 2 Pump

Product Code: A-AHUV3-2PUMP

The AHUv3 Compact provides the positive pressure and vacuum pressure airflows and houses the system filters. The AHUv3 Compact is a 2 pump unit designed predominantly for narrow web applications of up to 600mm.

View Product
AHUv3 Standard – 3 Pump or 6 Pump

Product Code: A-AHUV3-3PUMP/6PUMP

The AHUv3 provides the positive pressure and vacuum pressure airflows and houses the system filters. There are 2 models available, a 3 pump unit and a 6 pump unit. For applications where a higher volume capacity is required the 6 pump unit can be used.

View Product

CyClean™ Non-Contact Web Cleaning System

Product Code: CyClean

The Meech CyClean™ has been designed in response to increased demand for a compact, high performance, non-contact web cleaning system.

Through the application of advanced computational fluid dynamics, Meech has optimised the cleaning efficiency of CyClean to remove and extract contamination to below 1 micron.

A CyClean system comprises three main components; the cleaning head, active static control and an Air Handling Unit (AHU).

For further information on our CyClean™ Non-Contact Web Cleaning System and to learn how it works, click on the video tab below.

View related article “Xeikon partners with Meech and invests in CyClean non-contact web cleaning system”



Features & Benefits
Non Contact Cleaning Eliminates risk of surface marking and damage. No interference with web tension or web tracking.
Compact Design Flexible positioning & easy installation.
Integrated static control Neutralises static charges to optimise cleaning performance and prevent re-contamination.
Unique 'fixed ports' System The ducting connections to the cleaning head remain stationary, resulting in easier installation.
Air Balancing Allows complete control of the bias between blowing and vacuum airflows.
Auto Airflow Adjustment Reduces the frequency of required operator adjustments.
Hinged, Clam Shell Design Allows unit to open for easy threading of the web.
No Consumable Items Lower ongoing costs
Quiet Operation Can be installed in enclosed work areas. No H&S issues due to noise.

Technical Characteristics
Maximum Web Speed (web driven) 600 mtrs/min, 1968 ft/min
Maximum Web Width up to 2000mm, 78"
Duct Connections Fixed position 6 x 40mm Ø OD
Static Control (active) 4 x 914 AC bars
Mounting 4 x M8 x 16mm holes
Standard Opening Manual with gas strut and end hinges
Optional Opening Pneumatic

971 Pulsed DC Bar

Product Code: A971-XXXX

The 971 Pulsed DC bar delivers powerful, long range ionisation to control static electricity on a wide range of printing, converting and process machinery.

Using reliable Pulsed DC technology, the 971 delivers industry leading ionisation performance. Its great long range ability makes it ideal for use on applications such as rewinds and collection bins. In most installations, complete static control can be achieved without the need for air assistance. For more demanding applications, the integrated air-boost can be used to increase its capability at distance.  Meech’s ever reliable titanium emitter system gives extra-long service life. Resistive coupling makes the bar shockless to touch and safe for operators to handle. The design has been optimised to reduce the effects of contamination and to allow easy maintenance.

When powered by a PulseDrive Pulsed DC Controller, the system gains the advantage of Hyperion technology; allowing remote programming and monitoring of the bar’s performance.

  Download
Features & Benefits
Powerful Long Range Ionisation

Excellent static control on modern, fast machinery
Rigid Profile

Minimises the number of mounting points required
Resistive Coupling

Safe for operators to handle
Titanium Emitter Pins

Continue to give good ionisation after years of use
Replaceable Emitter Assemblies

Allows periodic replacement to extend service life
'T' Slot Mountings

Provides complete flexibilty of mounting points
Integrated Air-Boost

Increased perfomance for demanding applications
Technical Characteristics
Dimensions (cross section)

63mm x 72mm
Maximum Length

3900mm
Weight

1.2 kg/metre
Construction

ABS Plastic FR
Mounting

‘T’ Slot with M4 x 35 studs
Cable Length

2000mm HT in flexible plastic conduit, longer available.
Emitters

Sharp titanium pins
Power Source

PulseDrive Lite or PulseDrive Plus
Input Voltage

Up to 15KV
Output Frequency

1Hz – 20Hz
Air-Boost Connection

6mm push-fit
Air Consumption

5 cfm per 1000mm at 1 bar
Typical Operating Range

150 – 750mm
Applications
Images
Documentation

Meech Static Control Brochure

Download

971_Assembly

Download
Related Products
976 Emitter Pin Set 976 Emitter Pin Set

Product Code: A976-PINSET

View Product
Programmer BarMaster Programmer

Product Code: A900-BARMASTER-F

View Product
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product
Must Haves
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

971 Pulsed DC Bar

Product Code: A971-XXXX

The 971 Pulsed DC bar delivers powerful, long range ionisation to control static electricity on a wide range of printing, converting and process machinery.

Using reliable Pulsed DC technology, the 971 delivers industry leading ionisation performance. Its great long range ability makes it ideal for use on applications such as rewinds and collection bins. In most installations, complete static control can be achieved without the need for air assistance. For more demanding applications, the integrated air-boost can be used to increase its capability at distance.  Meech’s ever reliable titanium emitter system gives extra-long service life. Resistive coupling makes the bar shockless to touch and safe for operators to handle. The design has been optimised to reduce the effects of contamination and to allow easy maintenance.

When powered by a PulseDrive Pulsed DC Controller, the system gains the advantage of Hyperion technology; allowing remote programming and monitoring of the bar’s performance.



Features & Benefits
Powerful Long Range Ionisation Excellent static control on modern, fast machinery
Rigid Profile Minimises the number of mounting points required
Resistive Coupling Safe for operators to handle
Titanium Emitter Pins Continue to give good ionisation after years of use
Replaceable Emitter Assemblies Allows periodic replacement to extend service life
'T' Slot Mountings Provides complete flexibilty of mounting points
Integrated Air-Boost Increased perfomance for demanding applications

Technical Characteristics
Dimensions (cross section) 63mm x 72mm
Maximum Length 3900mm
Weight 1.2 kg/metre
Construction ABS Plastic FR
Mounting 'T' Slot with M4 x 35 studs
Cable Length 2000mm HT in flexible plastic conduit, longer available.
Emitters Sharp titanium pins
Power Source PulseDrive Lite or PulseDrive Plus
Input Voltage Up to 15KV
Output Frequency 1Hz - 20Hz
Air-Boost Connection 6mm push-fit
Air Consumption 5 cfm per 1000mm at 1 bar
Typical Operating Range 150 - 750mm

200 Series Fixing Bracket

Product Code: 260-FIX

The A260-FIX mounting bracket is for use with the model 261 Ion Nozzle.

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

Socket head cap screws are included to provide bracket adjustment and mounting.

  Download
Images
Related Products
Test Kit – 983v2 & 984v2

Product Code: 983V2-984V2-KIT

The 983v2 & 984v2 test kit allows diagnosis of static related issues and ionising equipment performance monitoring.

View Product

200 Series Fixing Bracket

Product Code: 260-FIX

The A260-FIX mounting bracket is for use with the model 261 Ion Nozzle.

This universal mounting bracket not only simplifies installation but also allows accurate positioning and directional control for the air flow from the 261 Ion Nozzle.

Socket head cap screws are included to provide bracket adjustment and mounting.



Series 200 Cable Extensions

Product Code: A200EXT-CABLE & A200EXT-BASE

Cable extensions are available in one metre increments.

Standard plugs and sockets are fitted to each end for connection to existing equipment installations.

  Download
Images
Must Haves
251 Ion Gun

Product Code: A251

Meech’s Model 251 Ion Gun is suitable for contamination blow-off and neutralisation of static charges in electronic applications and cleanroom environments.

View Product
Switchmode Power Adaptor 15W

Product Code: A900IPS-SM-15-XX

Meech Offer a suitable Switchmode Power Adaptor for the Hyperion 924IPS, 924IPSv2, 314IPS, 960IPS, 971IPS-30 and 650QAC Bars.

View Product
DC Splitters DC Splitters

Product Code: A2WAY / A4WAY / A8WAY / A9WAY

View Product
PulseDrive Lite PDC Controller PulseDrive Lite PDC Controller

Product Code: APD15-LITE-00

View Product
PulseDrive Plus PDC Controller PulseDrive Plus PDC Controller

Product Code: APD15-PLUS-00

View Product

Series 200 Cable Extensions

Product Code: A200EXT-CABLE & A200EXT-BASE

Cable extensions are available in one metre increments.

Standard plugs and sockets are fitted to each end for connection to existing equipment installations.



Switchmode Power Adaptor 100W

Product Code: A900IPS-SM-96W-XX

A general 24V DC 100W Power Adaptor for use with products including IonCharge50, 936IPS Blower (1000mm and 1200mm lengths), SmartControl Touch and SmartControl Touch Extension Unit, fitted with a 2000mm M8 4-pole cable and supplied with 2000mm mains cable.

Switchmode Power Adaptors take the local electrical supply and convert it to a stable and filtered 24V DC output. The adaptors are very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

Mains cable end connector cable end options include, STRIP (stripped ends) ,UK (Uk plug), EURO (Schuko plug), USA (USA plug).

For correct product code replace “XX” with one of the above options.

  Download
Technical Characteristics
Input range

90-264V AC
Frequency

47-63 Hz
Input Current RMS

1.5A Max. on Load
Maximum Power

100W
Output Voltage (Max.)

24V DC
Output Current

Max. 4.7A
Protection

Over voltage and over current protection
Dimensions LxWxD

155mm x 60mm x 39mm excluding cables
Input Connector & Cable Length

AC input IEC 320-C14 inlet. Cable length 2000mm
Output Connector & Cable Length

4 pole M8 Connector. Cable length 2000mm.
Operating Temperature

-25 – 70ºC
Certification

CE. UL.
Related Products
Switchmode Power Adaptor 48W

Product Code: A900IPS-SM-48W-XX

A 24V DC 48W Power Adaptor for use with certain products within the Meech range.

View Product
Must Haves
Hyperion IonCharge50 (75W)

Product Code: AIC50-75DC

IonCharge50 – 75W static generator is designed for a range of applications. It uses advanced high voltage technology and software for a controlled static charge via our range of static generator bars and pinning heads.

View Product
SmartControl Touch SmartControl™ Touch

Product Code: ASMARTCON-TOUCH-LAN

View Product

Switchmode Power Adaptor 100W

Product Code: A900IPS-SM-96W-XX

A general 24V DC 100W Power Adaptor for use with products including IonCharge50, 936IPS Blower (1000mm and 1200mm lengths), SmartControl Touch and SmartControl Touch Extension Unit, fitted with a 2000mm M8 4-pole cable and supplied with 2000mm mains cable.

Switchmode Power Adaptors take the local electrical supply and convert it to a stable and filtered 24V DC output. The adaptors are very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

Mains cable end connector cable end options include, STRIP (stripped ends) ,UK (Uk plug), EURO (Schuko plug), USA (USA plug).

For correct product code replace “XX” with one of the above options.



Technical Characteristics
Input range 90-264V AC
Frequency 47-63 Hz
Input Current RMS 1.5A Max. on Load
Maximum Power 100W
Output Voltage (Max.) 24V DC
Output Current Max. 4.7A
Protection Over voltage and over current protection
Dimensions LxWxD 155mm x 60mm x 39mm excluding cables
Input Connector & Cable Length AC input IEC 320-C14 inlet. Cable length 2000mm
Output Connector & Cable Length 4 pole M8 Connector. Cable length 2000mm.
Operating Temperature -25 - 70ºC
Certification CE. UL.

Switchmode Power Adaptor 48W

Product Code: A900IPS-SM-48W-XX

A general 24V DC 48W Power Adaptor for use with products including IonCharge30 and 936IPS Blowers (<1200mm).

Switchmode Power Adaptors take the local electrical supply and convert it to a stable and filtered 24V DC output. The adaptors are very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

Mains cable end connector cable end options include, STRIP (stripped ends) ,UK (Uk plug), EURO (Schuko plug), USA (USA plug).

For correct product code replace “XX” with one of the above options.

  Download
Technical Characteristics
Input Range

85-265VAC
Frequency

47 – 63 Hz
Input Current RMS

0.6A Max
Maximum Power

60W
Output Voltage

24V DC
Output Current Max

Max 2.5A
Protection

Over voltage and over current protection
Dimensions LxWxD

116.5mm x 54mm x 34.6mm excluding cables
Input Connector & Cable Length

AC input IEC 320-C14 inlet. Cable length 2000mm
Output Connector & Cable Length

4 pole M8 Murr Connector. Cable length 2000mm
Operating Temperature

-25 – 60ºC
Certification

Certification CE. UL.
Images
Related Products
Switchmode Power Adaptor 100W Switchmode Power Adaptor 100W

Product Code: A900IPS-SM-96W-XX

A general 24V DC 45W Power Adaptor.

View Product
Must Haves
994 IML Static Generator

Product Code: 994 IML

The Meech 994-IML provides 0-20kV, Negative polarity, in a lightweight package with connections to suit the Meech Hydra IML pinning system.

View Product
Hyperion IonCharge30 (15W)

Product Code: AIC30-15DC

The Meech IonCharge 30 uses advanced high voltage technology and software for a controlled static charge via our range of static generator bars and pinning heads.

View Product
Hyperion 936 Ionising Blower

Product Code: A936

The Hyperion 936IPS Ionising Blower replaces the 935 Blower, providing effective long-range ionisation over a large area.

View Product

Switchmode Power Adaptor 48W

Product Code: A900IPS-SM-48W-XX

A general 24V DC 48W Power Adaptor for use with products including IonCharge30 and 936IPS Blowers (<1200mm).

Switchmode Power Adaptors take the local electrical supply and convert it to a stable and filtered 24V DC output. The adaptors are very versatile, accepting a wide range of input voltages from 100V to 240V AC and either 47 or 63 Hz.

Mains cable end connector cable end options include, STRIP (stripped ends) ,UK (Uk plug), EURO (Schuko plug), USA (USA plug).

For correct product code replace “XX” with one of the above options.



Technical Characteristics
Input Range 85-265VAC
Frequency 47 - 63 Hz
Input Current RMS 0.6A Max
Maximum Power 60W
Output Voltage 24V DC
Output Current Max Max 2.5A
Protection Over voltage and over current protection
Dimensions LxWxD 116.5mm x 54mm x 34.6mm excluding cables
Input Connector & Cable Length AC input IEC 320-C14 inlet. Cable length 2000mm
Output Connector & Cable Length 4 pole M8 Murr Connector. Cable length 2000mm
Operating Temperature -25 - 60ºC
Certification Certification CE. UL.

TakClean™ Contact Web Cleaning System

Product Code: TakClean™

The Meech TakClean contact web cleaning system is designed primarily for use in the label and narrow web markets to remove dry, unbonded contamination from a moving web efficiently.

TakClean incorporates the specially formulated TransTak elastomer contact cleaning rollers and perforated adhesive rolls which, combined, make TakClean the ultimate elastomer based web cleaning machine.

For more information or for sales enquiries please contact us.

  Download
Features & Benefits
Clam Shell Opening (top half)

Provides the operator with access to clean the TransTak elastomer rollers and makes webbing-up very easy.
Side Pull Out Adhesive Rolls

Minimises the size of the machine and provides the operator with easy access to remove a section of the perforated adhesive roll.
Cantilever or Base Plate Mounting

Flexibility of the installation position. TakClean can be installed to suit all web orientations.
Integrated Static Control

Meech active static control equipment neutralises the web on exit of the TakClean to prevent statically attracted recontamination.
Fast Change Adhesive Rolls

Reduces maintenance time required.
Technical Characteristics
Web Speed (web driven)

250mtrs/min820ft/min

N.B. Contact Meech for web speeds over 250mtrs/min / 820ft/min
8-off Standard Effective Widths

250 – 600mm in 50mm increments (9.84” – 31.50” in 1.97” increments)
Electrical Requirement

24VDC (line running signal)
Static Control (active)

2 x 914 AC Ionisers
Pneumatic Requirement

5bar (72psi)

N.B. compressed air supply should be oil and moisture free
Images
Videos
Documentation

Web Cleaning Overview Brochure

Download

TakClean_Operating_Manual

Download
Must Haves

TakClean™ Contact Web Cleaning System

Product Code: TakClean™

The Meech TakClean contact web cleaning system is designed primarily for use in the label and narrow web markets to remove dry, unbonded contamination from a moving web efficiently.

TakClean incorporates the specially formulated TransTak elastomer contact cleaning rollers and perforated adhesive rolls which, combined, make TakClean the ultimate elastomer based web cleaning machine.

For more information or for sales enquiries please contact us.



Features & Benefits
Clam Shell Opening (top half) Provides the operator with access to clean the TransTak elastomer rollers and makes webbing-up very easy.
Side Pull Out Adhesive Rolls Minimises the size of the machine and provides the operator with easy access to remove a section of the perforated adhesive roll.
Cantilever or Base Plate Mounting Flexibility of the installation position. TakClean can be installed to suit all web orientations.
Integrated Static Control Meech active static control equipment neutralises the web on exit of the TakClean to prevent statically attracted recontamination.
Fast Change Adhesive Rolls Reduces maintenance time required.

Technical Characteristics
Web Speed (web driven) 250mtrs/min820ft/min N.B. Contact Meech for web speeds over 250mtrs/min / 820ft/min
8-off Standard Effective Widths 250 – 600mm in 50mm increments (9.84” – 31.50” in 1.97” increments)
Electrical Requirement 24VDC (line running signal)
Static Control (active) 2 x 914 AC Ionisers
Pneumatic Requirement 5bar (72psi) N.B. compressed air supply should be oil and moisture free
